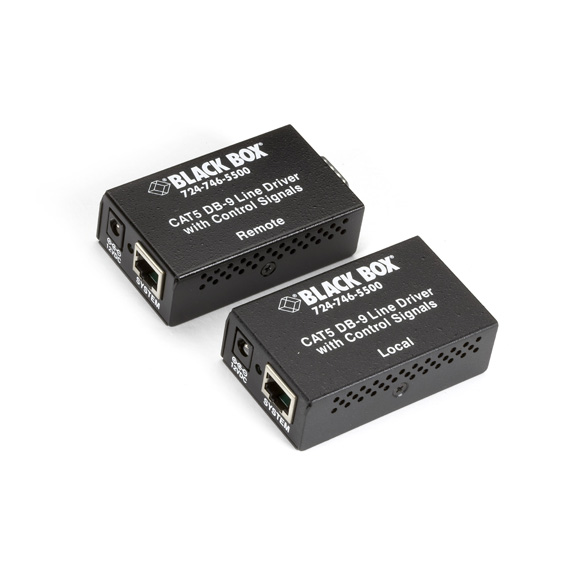

Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block, 220V

The plug-and-play solution for extending RS-232 data and handshake signals 4000 feet away.

Price:

N/A

Quantity:

Add to Cart

Product Features

Optically isolated.
Supports distances up to 4000 feet.
Has 1000-VDC isolation between CATx and RS-232 interfaces.

Maximum speed of 250 K.

Run data and handshake signals over CATx cable and break the RS-232 distance limitation.

Plug-and-play. The driver is a pure hardware solution providing real-time data transfer with no software conflicts.

Use long-distance CATx links to communicate with serial devices.

Control presentations remotely.

Transfer data between computers.

Ideal for a wide variety of applications.

Easy installation. The driver provides full-duplex transmission and hardware handshake signals. There's no need for setup or configuration.

This CATx Line Driver enables you to place a receiving device up to 4000 feet away from the sending device. The local unit has a DB9 female connector and is configured as a DCE device; the remote unit has a DB9 male connector and is configured as a DTE device. This allows the local/remote pair to function as a long extension cable between two RS-232 devices. There are no user-configurable settings. These units pass TXD, RXD, RTS, and CTS signals to allow application to use hardware handshake signals if neccessary.

Product Includes:

(1) Local Unit
(1) Remote Unit
(1) 100/220 V, 5VDC 1.2 A Power suppy

NOTE(s):
This product includes: - (1) local unit - (1) remote unit - (1) 230 V power suppy

* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
