#CB-CP100

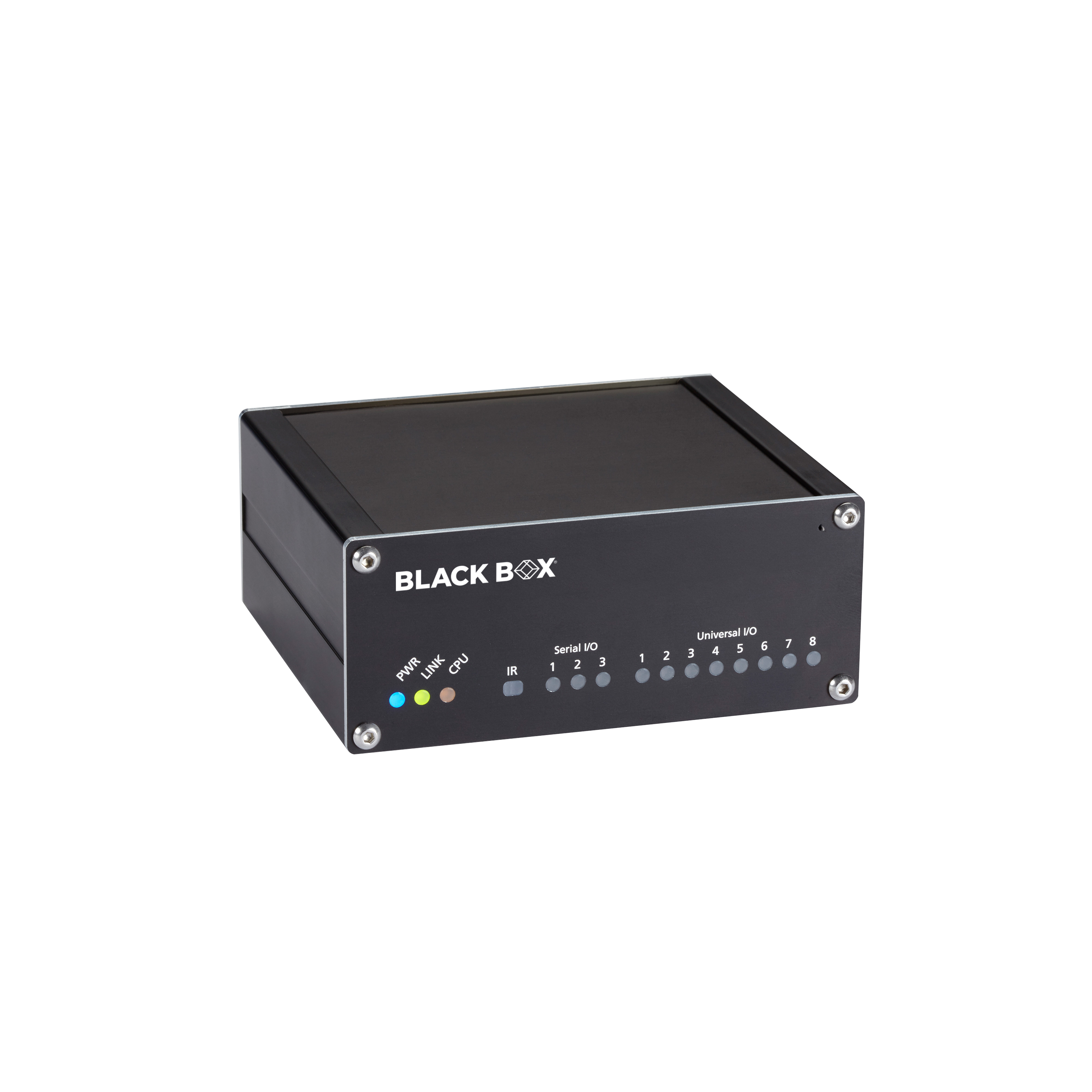

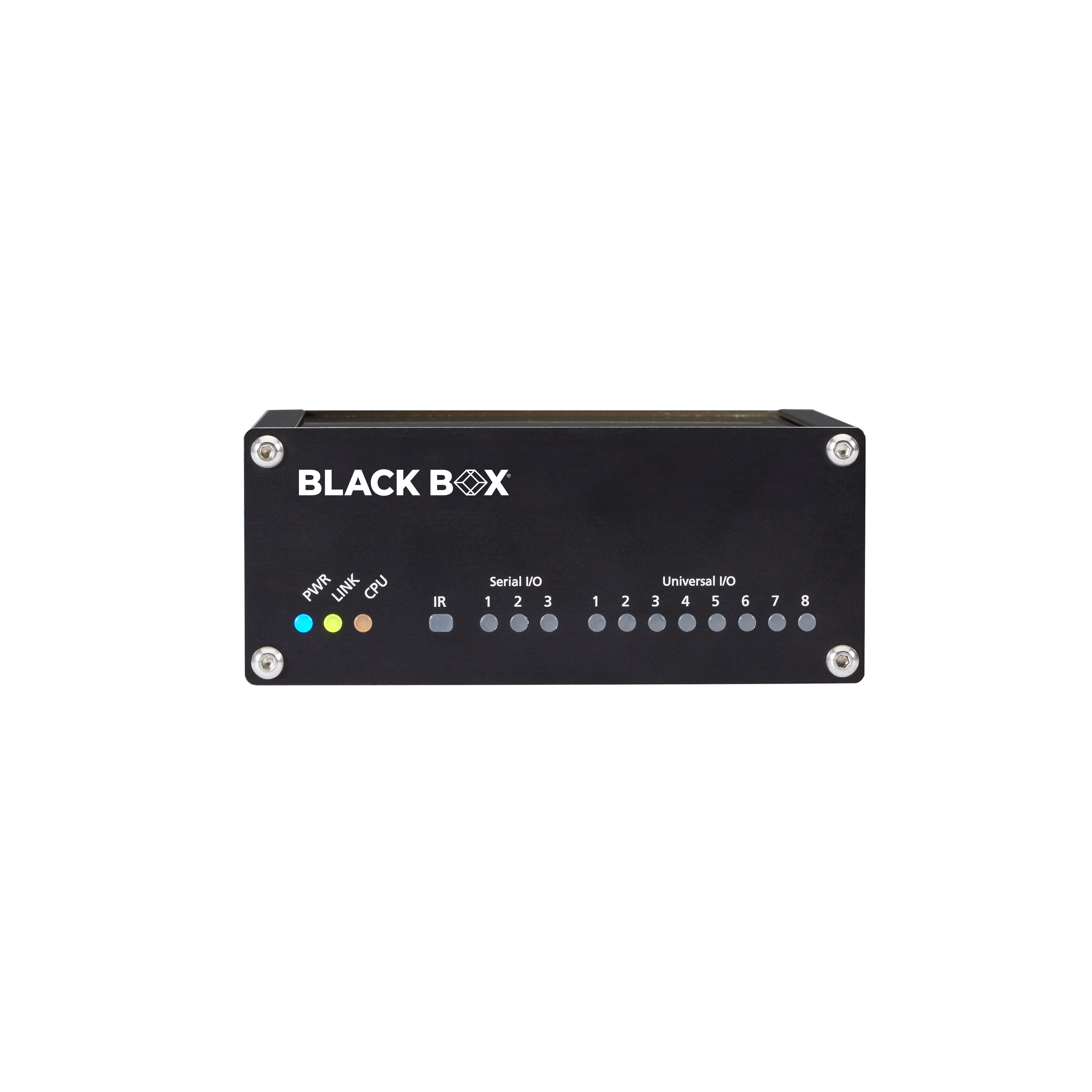

ControlBridge® Processor 100
Connect and control everything in small- to medium-sized conference rooms and classrooms.
Product Features
- Pair it with the ControlBridge Wired Desktop Touch Panel to also control Ethernet enabled devices
- A variety of control ports - serial, infrared, general I/O, and relay enable you to control just about everything
- Bidirectional control of IP enabled devices via the Ethernet port
- Bidirectional RS-232/422/485 serial channels
- Provides a wired 10/100BASET Ethernet connection
- Easy control with an IR remote
- Set up and manage via a standard Web browser
- Features a real time clock for scheduling applications
- Compatible with other ControlBridge devices and accessories.
- It can be rack-mounted.
- A variety of control ports - serial plus versatile ports - enable you to control just about everything.
- Get bidirectional control of IP enabled devices via the Ethernet port.
- Bidirectional RS-232/422/485 serial channels expand your connections options.
- Provides a wired 10/100BASET Ethernet connection.
- Easy control with an IR remote.
- Set up and manage via a standard Web browser.
- Features a real-time clock for scheduling applications.
- Compatible with other ControlBridge devices and accessories.
- It can be rack-mounted.
Simple, one-touch control
With the ControlBridge® Processor 100, you can control everything in small to mid-sized conference rooms, classrooms, training centers, and control rooms. When making presentations, ControlBridge enables you to focus on the objective, not the technology. Instead of fumbling around trying to set up projectors, sound systems, and other equipment, all you need to do is push a button or swipe a touchpad. Plus, PoE capability eliminates worries about power supplies.
The ControlBridge Processor gives you multiple ways to control devices.
- Control Ethernet-enabled devices with Touch Panels.
- With the Mobile Device License, you can even use your tablet or smartphone.
- With the Wired Desktop Button Panel.
- Via the convenient In-Wall Button Module
- With IR remote control transmitters because the Processor and Touch Panels have IR receivers.
Control everything - the new and not-so-new

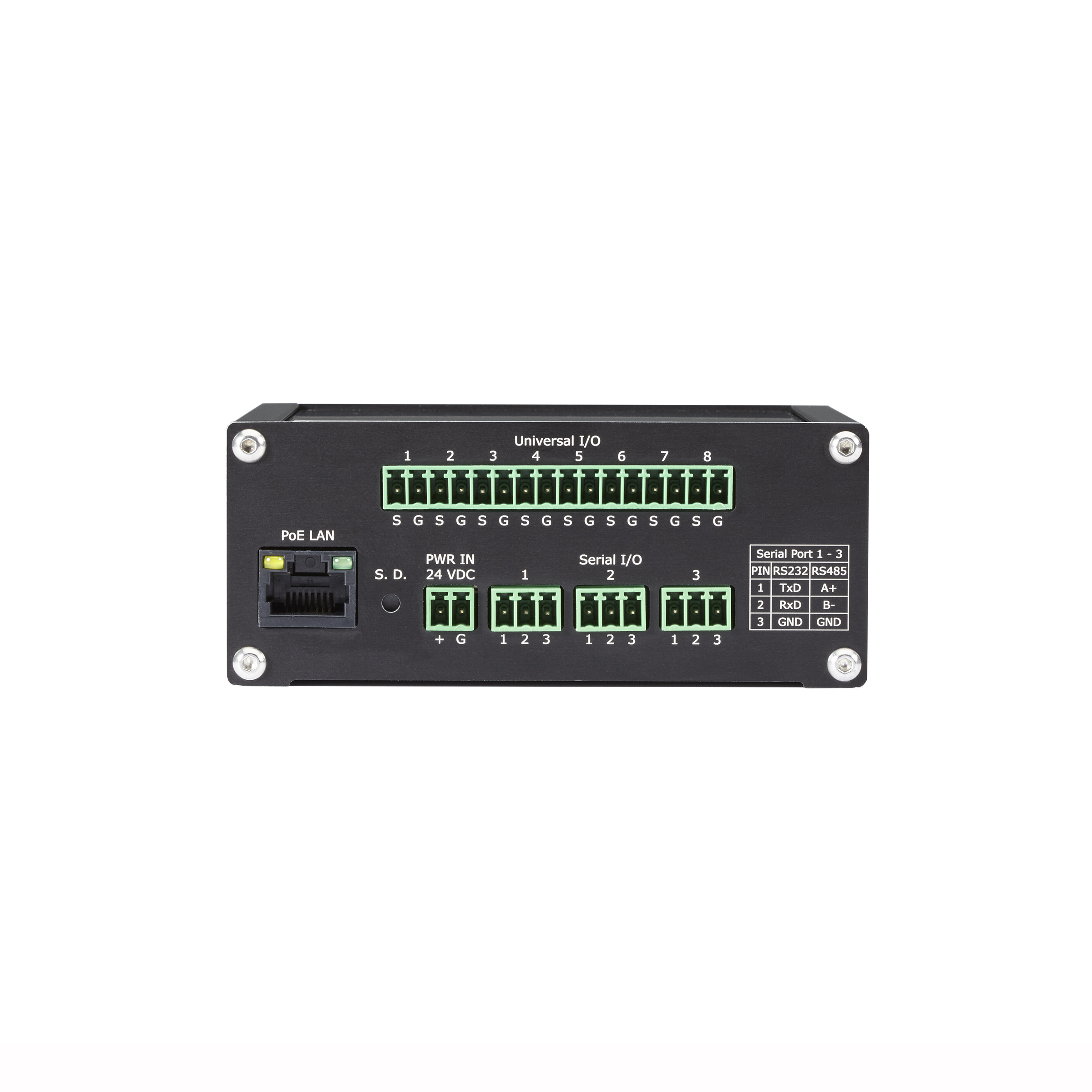

Because the ControlBridge Processor sports so many different types of ports, you can connect almost anything. Bidirectional serial RS-232/422/485 ports enable you to connect modern KVM equipment as well as older AV equipment with serial interfaces. You can even use ControlBridge to simplify operation for existing technologies you're already using.
You'll also get versatile ports that can be configured, which can be configured to be used either as an input or output port.
Input modes include:
- Digital input for free contacts, pushbuttons, switches, digital input 24V, energy meter outputs, and more.
- Resistance for temperature sensors, resistors, and other meters.
- Voltage input sensors.
- Current-loop passive input.
Output modes include:
- Digital output collector for relay coils, LED indicators, etc.
- Current-source pull-up and pull-down.
- IR output.
- Serial output.
In as analog inputs or digital outputs and 24-volt relay outputs. Use them to automate equipment such as screens, lights, window shades, sound systems, and more.
With ControlBridge, you can control:
- AV systems
- KVM systems
- Displays
- Projectors and screens
- DVD and CD players
- Volume
- Temperature
- Lights
- Any IP-enabled device
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,155,012; 8,902,760; 8,942,107; and/or 9,049,019.
- (1) ControlBridge Processor 100
- (2) IR Adapters
- (1) Connector Set (Phoenix Connectors for I/O)
- (1) Ethernet Cable
- (1) PoE Adapter plus Power Cable
- (1) 24 VDC Power Supply
NOTE(s):
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,155,012; 8,902,760; 8,942,107; and/or 9,049,019.
This product works with:
- ControlBridge™ Wired Desktop Touch Panels (CB-TOUCH7-T, CB-TOUCH12-T)
- ControlBridge Wired Desktop Control Panel – 8-Button (CB-KEYPAD-208-T)
- ControlBridge Wallmount Control Module – 8-Button (CB-KEYPAD-1G-08)
- ControlBridge IR Emitter (CB-ACC-IR-UNI)
- ControlBridge Serial I/O Cables (CB-ACC-232DTE-30, CB-ACC-232DCE-30)
- ControlBridge Power Supplies (CB-PS-12V, CB-PS-24V)
- ControlBridge Mobile Device License - Single (CB-APP-LIC)
- ControlBridge Control Processor Mounting Kit, 19" (CB-CP-RMK)
