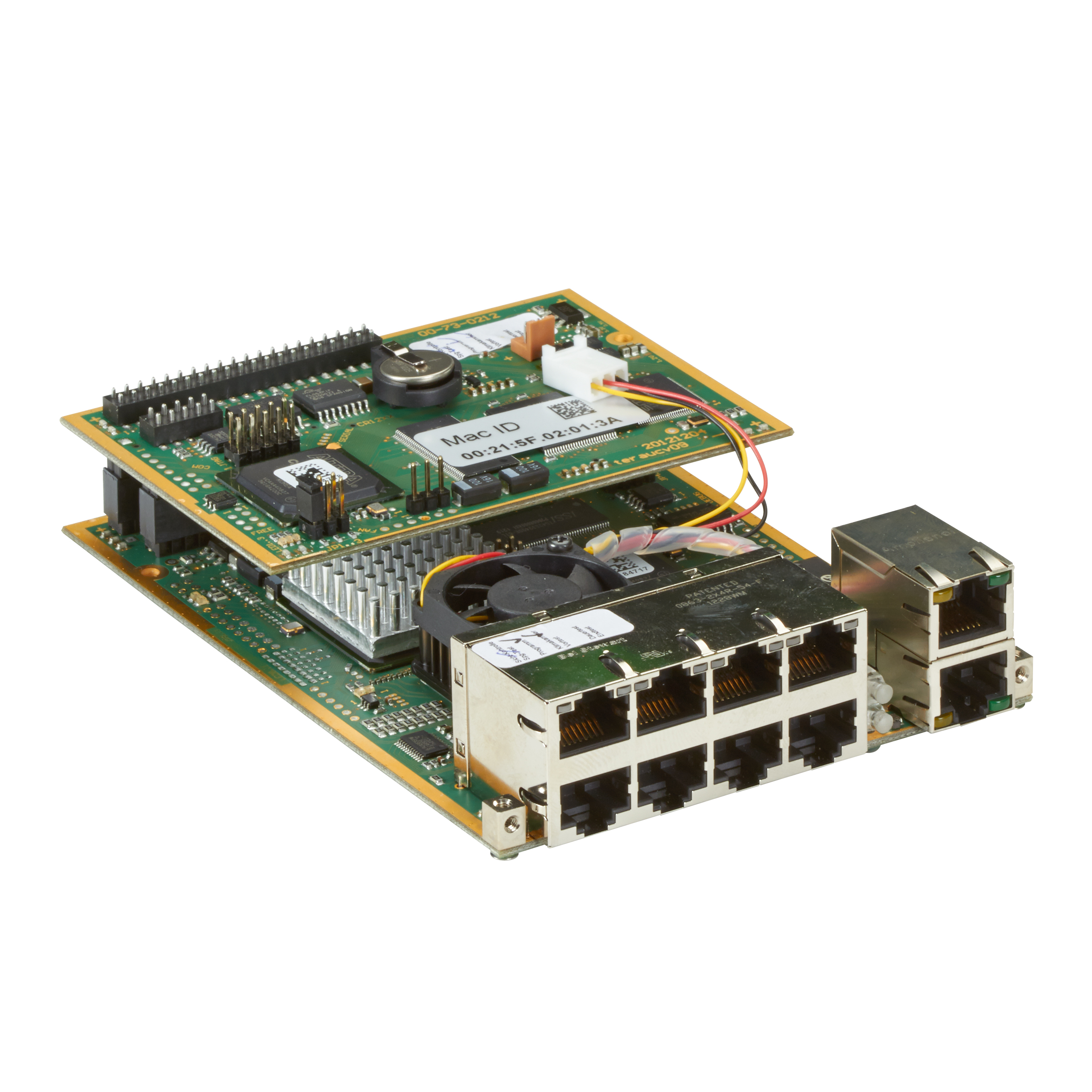

DKM KVM Extender Modular Switching Module - 8-Port, (1) CATx

Scalable, flexible and instantaneous crosspoint high performance KVM matrix switch.

Product Features

Replacement or Spare Switching Module for P/N ACXC8.
Does not operate by itself; requires P/N ACXMODH2R-P-R2 Chassis
Enables matrix switching support for 8 DKM CATx endpoints
Supports central management of all attached endpoints, including firmware upgrading, user access control, configuration, etc.
Compact design 8 Port KVM CATx matrix switch

A scalable highly reliable KVM and peripheral matrix switching and DVI routing system. Very flexible. Any port can be an input or an output. Compact design fits 8-Port, CATx, use with ACXMODH21R-P-R2. Supports high-quality, full-frame DVI-D video. Engineered for mission-critical 24/7 operations.

Other options available for applications that require Fiber matrices or a higher port count.

The DKM Matrix switch enables switching between computers and remote consoles
The DKM Compact switch is available in CATx and Fiber and in port sizes of 8, 16, 32, 48, 64 and 80
The DKM 64 and 80 port switches offer hybrid interfaces that support both CATx and Fiber
CATx endpoints can be extended up to 400 feet (122 m) and Fiber endpoints can be extended up to 6.2 miles (10 km)
Each port on the DKM is agnostic and can support a transmitter or receiver
The DKM features instantaneous switching between sources using the same video resolution
Users can interact with this KVM switch via hotkeys, OSD, eternal Java Utility, or an API interface
The DKM can easily be cascaded to support future expansion in the event that every port is in use
The DKM solution features transmitter and receiver endpoint options that can support DisplayPort, DVI-D, DVI-I, HDMI, VGA, USB HID, USB 2.0, Analog Audio, Digital Audio, RS232, and RS422
Black Box can also help you support legacy interfaces such as Component, Composite, S-Video, RGB Video, even with PS/2 keyboards and mice
The DKM transmitters and receivers support CATx or Single-mode or Multi-mode Fiber which interfaces with the DKM FX KVM Switch

Item Includes:

(1) ServSwitch DKM FX Compact Matrix 8-Port CATx Module
(1) RJ45/DB9 Adapter
User Manual

NOTE(s):

This product works with:

DKM HD Video and Peripheral Matrix Switch Modular Housing (ACXMODH2R-P-R2)
DKM FX Modular Interface Cards (AXC1MT, ACX1MR)
DKM FX Compact Transmitters and Receivers (ACX1T, ACX1R)
DKM FX Compact Switch System Licenses (ACX-JAX, SYS, CAS, API)

Questions? Contact our FREE Tech Support.

NOTE: These DKM FX and DKM FXC components are part of a modular system and will need to be configured for your application. Please contact Black Box Tech Support Engineers for a FREE consultation.
