#KV9516A

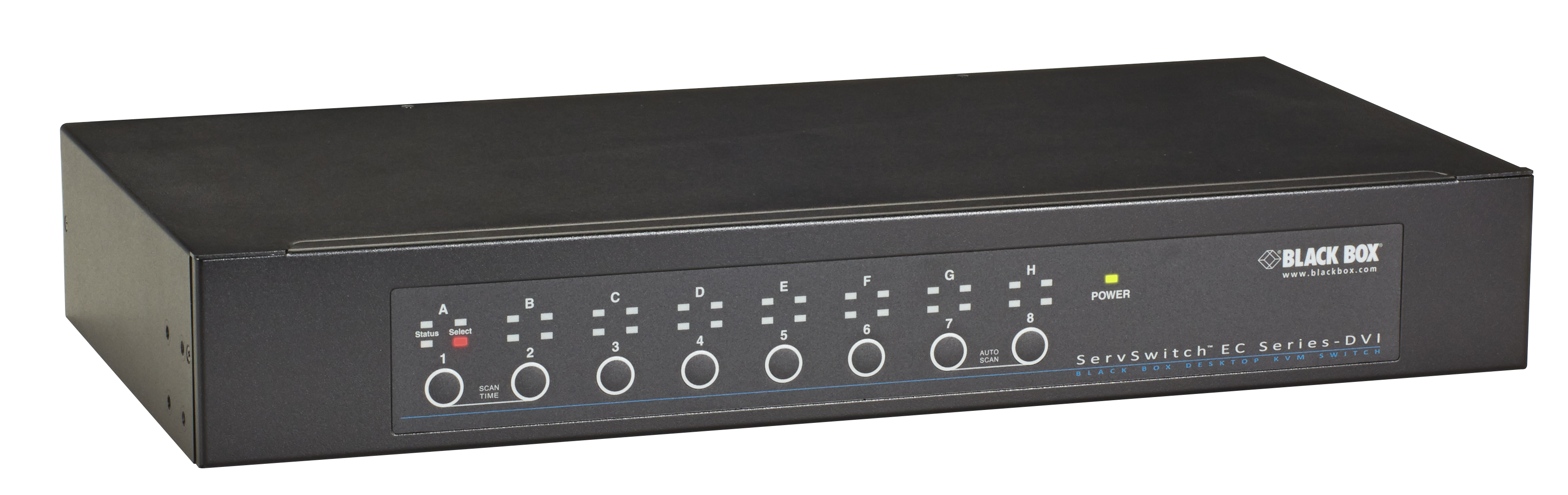

EC Series KVM Switch for DVI, USB Servers and DVI USB Console - 16-Port
Manage and control up to 16 DVI and USB servers from your desktop.
Product Features
- 1 User can easily access up to 16 computers that support DVI-D Video with USB Keyboard and mouse
- Use keyboard hotkeys or front push buttons to switch ports
- Support for DVI-D resolutions up to 1920x1200 (or 1920x1080)
- The unit is 2U high.
- Supports Microsoft® IntelliMouse® (Pro).
- Operating system independent and transparent to all applications.
- Switch with hotkeys, manually, or use auto scan, which selects servers sequentially.
- Hot-pluggable keyboard/mouse ports.
- Plug-and-play configuration.
- DDC2B compatible.
Tight quarters.
Ideal for applications where you have a limited amount of space, the 2U-high 16-port DVI switch can be used on the desktop or mounted in a rack or cabinet.
Choice in switching.
Switch between servers using front-panel buttons or hotkeys. Or if you select the auto scan function for automatic switching, the ServSwitch EC will scan and switch between servers, one by one, at an interval that you determine. When auto scan detects any keyboard or mouse activity, it suspends the scanning until activity stops and then resumes with the next computer in sequence.
Set it and forget it.
System settings are stored in nonvolatile memory so you don't have to worry about a power outage wiping out your information. The ServSwitch EC also saves your keyboard settings for each server and restores them when you come back to that machine.
Check it.

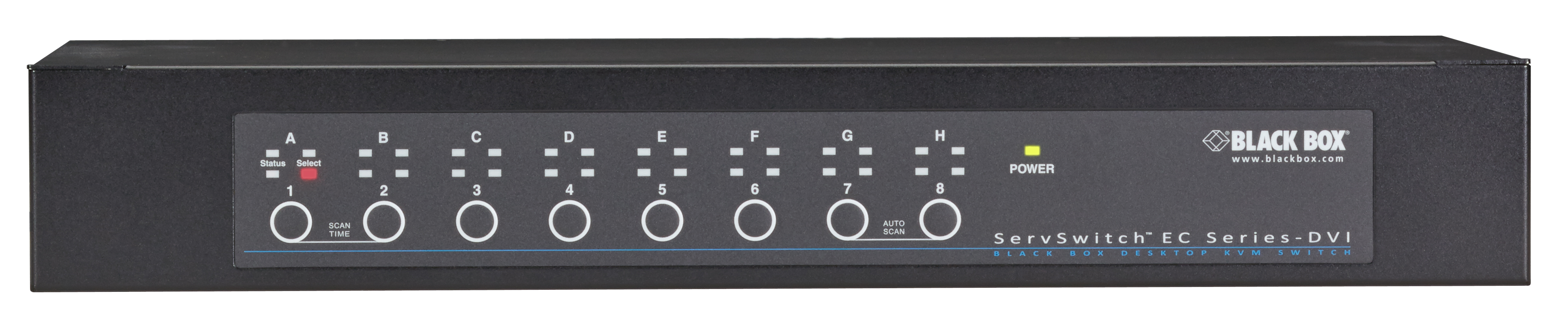

The front panel includes port LEDs, which light with the corresponding active port when you switch between servers.
Digital quality.
With video enhancement technology that ensures superb quality and resolutions up to 1920 x 1200, the ServSwitch EC is DDC2B compatible, so you can use it with the latest digital monitors. What's more, the switch is operating-system independent and transparent to all applications.
- (1) ServSwitch EC
- (1) Universal Power Supply, 12 VDC, 4.0 A Output
- (1) 6-ft. Power Cable
- Set of (4) Foot Pads
- (2) Mounting Brackets
- Assortment of Screws
- User Manual
