#EMS10G12

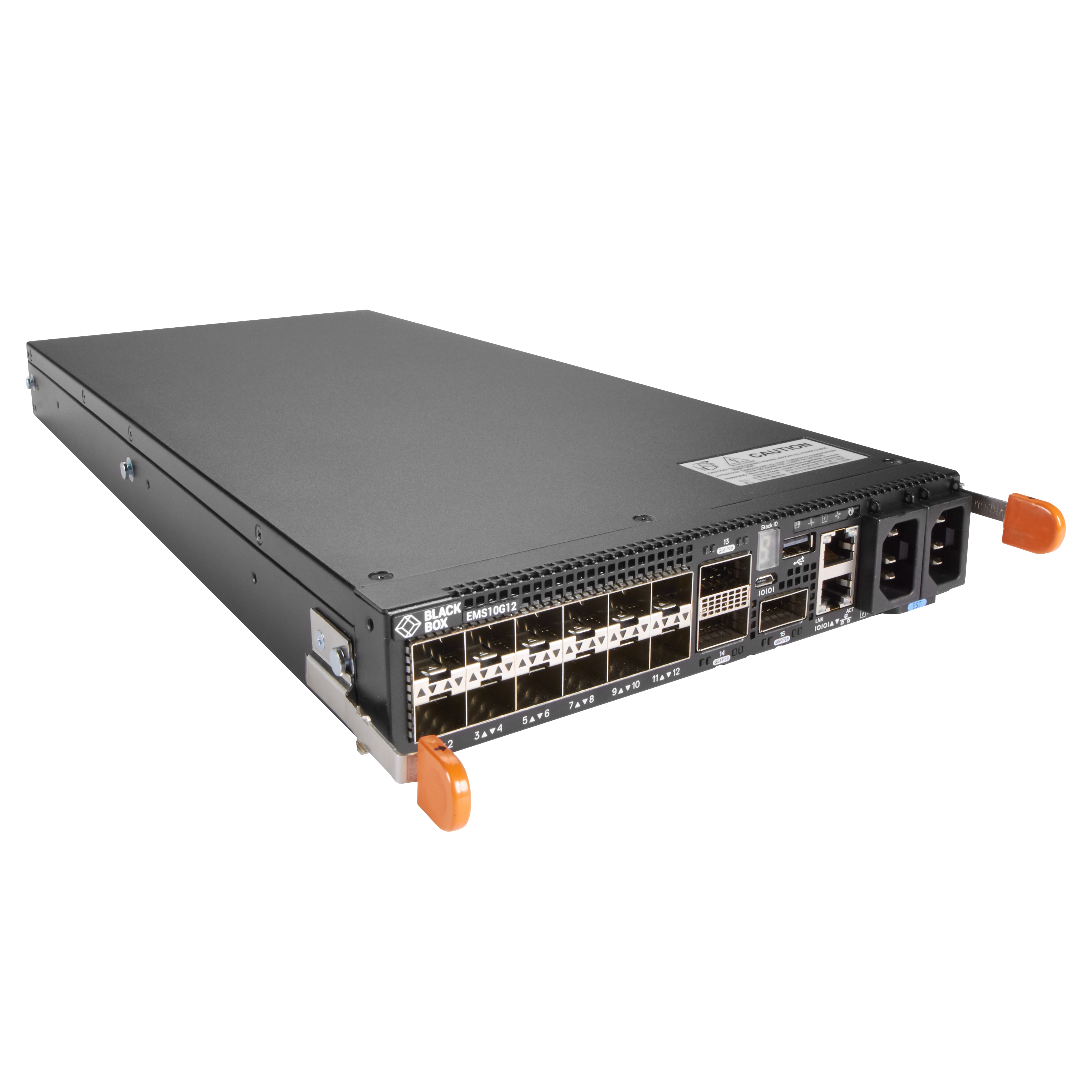

Emerald® 10-Gigabit Ethernet Network Switch - 12-Port
Part of the Emerald 4K/2K KVM extension and matrix switching solution that simplifies access to both physical and virtual servers.
Product Features
- 1RU high-density 10-Gigabit switch
- 960-Gbps (full-duplex) non-blocking, cut-through switching fabric delivers line rate performance under a full load
- Redundant, hot-swappable power supplies and fans
- Supports 10GBASE fiber optics
- VXLAN gateway support for bridging and routing non-virtualized and virtualized overlay networks with line-rate performance
- Scalable L2 and L3 Ethernet Switching with QoS, ACL
- Full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR
Emerald is the first Enterprise KVM Extension and KVM Matrix Switching solution that delivers pixel-perfect video with 2K/HD or 4K/60 resolutions at 10 Bit color depth over an IP network.
The flexible and scalable system supports any number of workstations and servers. In addition, it simplifies virtual access, making it easy for you to use any combination of physical and virtual servers.
It provides operators and administrators with fast and easy-to-use access to their target PCs/servers with premium video quality and a rich peripheral set supporting stereo audio and up to any four true emulated USB 2.0 devices including Wacom® tablets. Administrators will like comprehensive management with convenient configuration options in line with high-level network security and reliable 24/7 operation.
An Emerald KVM network may start small, but it's infinitely scalable to meet your expansion needs and future technology path just by adding endpoints, with no additional chassis or cards required.
System by Design
Emerald comprises of a choice of transmitters connecting computers or virtual machines to the system and receivers connecting the user consoles. High-performance Emerald network switches with 12, 28,- 32-, or 48 ports ensure trouble-free KVM over IP extension and matrix switching connections. A range of SFP/SFP+ transceivers proofs best performing video quality and KVM extensions over the required distances.
Use the Emerald transmitter to connect DisplayPort servers with resolutions up to 4K60, transparent USB, serial, and audio to your Emerald System.
Instant access across the entire enterprise
Emerald makes your migration painless, enabling you to scale access infinitely and gradually across buildings, campuses, and the wide-area network, using your existing network infrastructure - with switching between sources at speeds of less than half a second.
Digital video at its best
Emerald is the first KVM platform that supports pixel perfect 4K DisplayPort video at 60 Hz over standard IP network switches. Image transmission with mathematical lossless compression visualizes every single pixel at 60 fps with 10-bit color depth.
If you're not ready for 4K, start with the Emerald 2K options, supporting one or two full HD DVI channels, and migrate to 4K at your own pace by transitioning individual user groups when the need arises.
Virtualization
More and more physical servers are being replaced by virtualization, allowing better performance, availability, scalability, and return on investment. Emerald simplifies access to both physical and virtual servers with virtual machine support for VMware, Microsoft, and Citrix, using RDP 8.1, RemoteFX, and PCoIP, among others.
Fail-safe operation
All Emerald transmitters and receivers feature copper or fiber connectivity through one (HD) or two (4K) flexible SFP+ slots.
Your 24/7 operation requires network resilience. Use the redundant network ports on the Emerald units to provide continuous, uninterrupted operation even if one network link experiences loss-of-service. Connect the endpoints either through two alternative direct links, a direct link, and a network connection or two independent networks.
Network Requirements
For HD video, Emerald requires a standard Gigabit Ethernet network and possibly a 10 Gigabit aggregate switch, depending on how many endpoints you have. For 4K video, you'll need a standard 10 Gigabit Ethernet network with a 100 Gigabit aggregate switch for 20+ endpoints. For both, the network infrastructure required by Emerald can be built with IEEE 802.3 standards-based components from Black Box or other manufacturers.

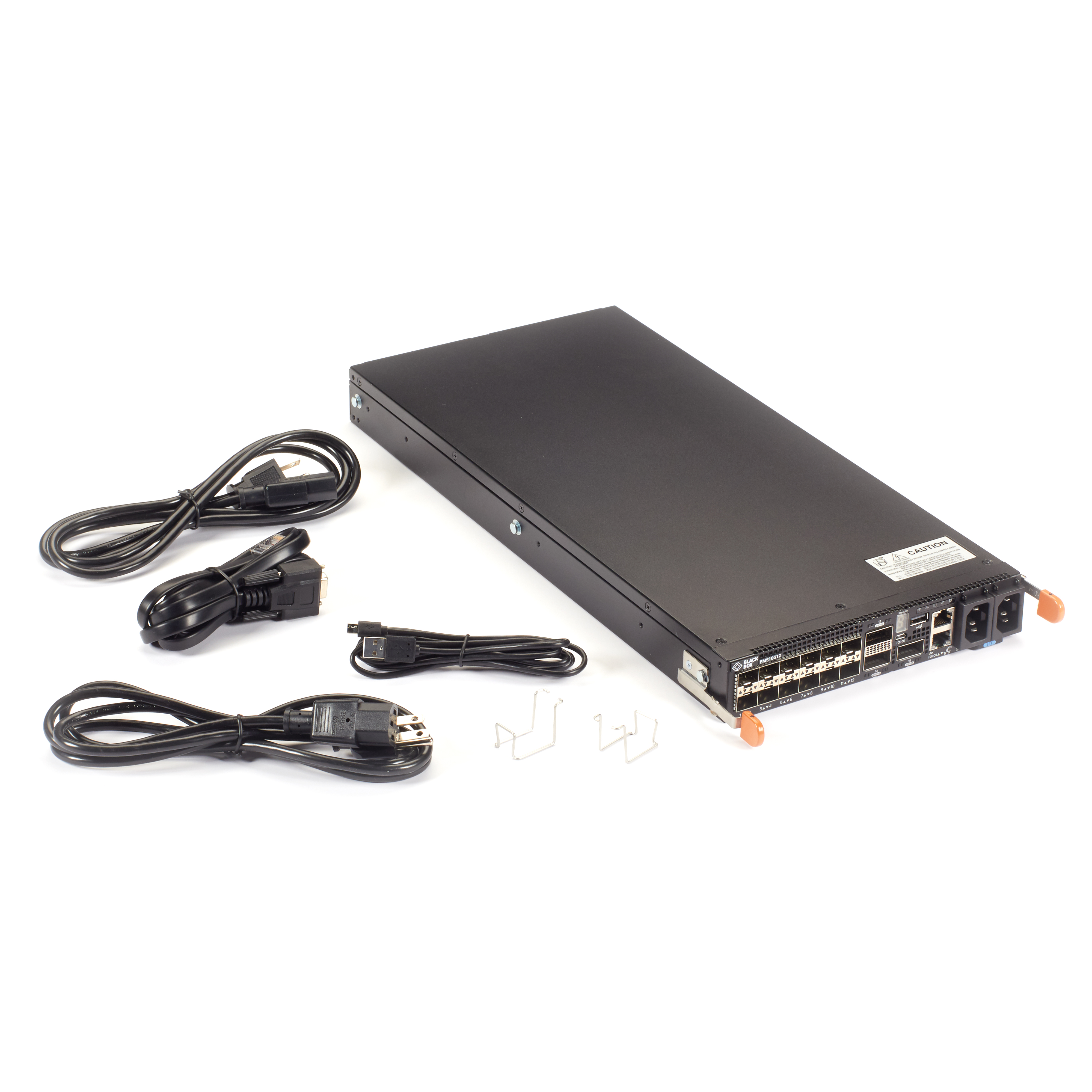

- (1) Ethernet Switch
- (2) Power Cords
- (1) Console Cable RJ45 to DB9F
- (1) USB Type-A to Micro USB Cable
- (2) Locking Power Cord Clips
