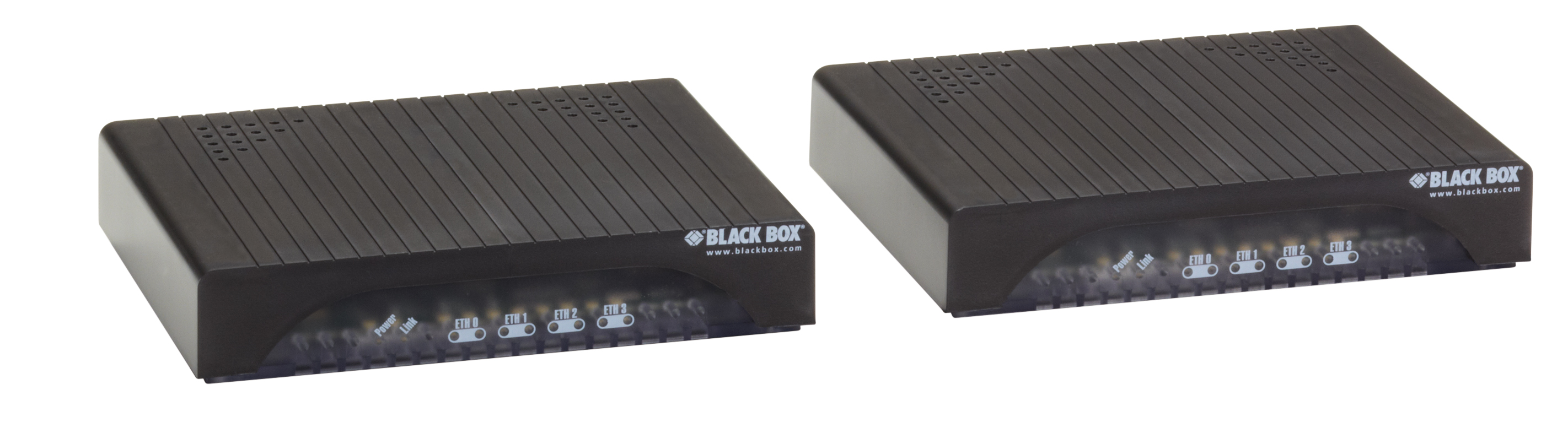

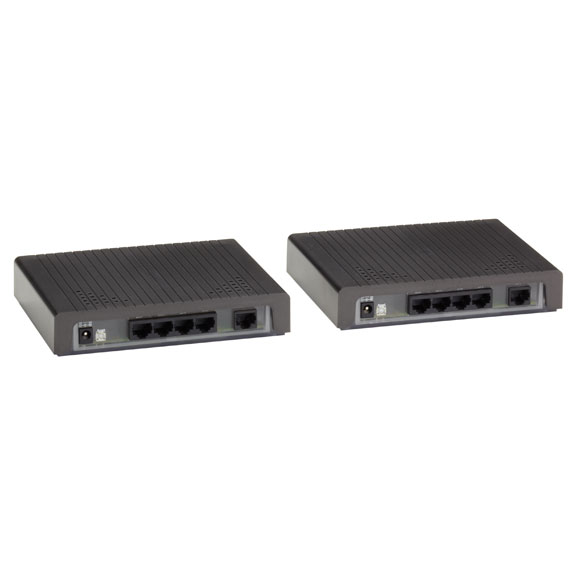

#LB512A-KIT-R2
Ethernet Extender Kit - G-SHDSL 2-Wire, 15-Mbps
Get cost-effective Ethernet extension up to 15 Mbps over voice-grade cable.
Product Features
- An advanced auto-rate algorithm automatically determines the best possible baud rate for each connection and sets up the extender without the need for user interface
- Plug-and-play! Just plug it in, power it on, and it's up and running
- Max line rate of 15 Mbps
- Max distance 10km.
This kit includes a pair of auto-rate Ethernet extenders and uses a standard 2-wire connection, which simplifies your life and provides a cost-effective network extension by enabling you to make the most of your pre-existing twisted-pair infrastructure.
You'll be able to connect remote LANs across distances and at speeds previously unheard of. An auto-rate feature ensures that you achieve the highest possible speed on each connection.
It's easy to use, too. Plug-and-play means that you'll be up and running in seconds, and built-in MDI-X works with either a straight-through or crossover cables.
The pair auto senses the data rate up to 15 Mbps at a distance of 0.7 miles (1.2 km) to provide reliable broadband connectivity with full-duplex symmetric rates, with lower speeds at longer distances of up to about 6.4 miles (10.4 km).
Distance on 24 AWG (0.5 mm)
The extender also has a max reach of 30-ft.
| Line Rate (kbps) | Miles | km |
|---|---|---|
| 192 | 4.26 | 6.9 |
| 256 | 4.26 | 6.9 |
| 512 | 4.18 | 6.7 |
| 768 | 3.69 | 5.9 |
| 1024 | 3.50 | 5.6 |
| 1280 | 3.50 | 5.6 |
| 1536 | 3.50 | 5.6 |
| 2048 | 3.13 | 5.03 |
| 2304 | 3.13 | 5.03 |
| 4608 | 2.08 | 3.35 |
| 5696 | 1.70 | 2.74 |
