#ME660A-MSx-R2

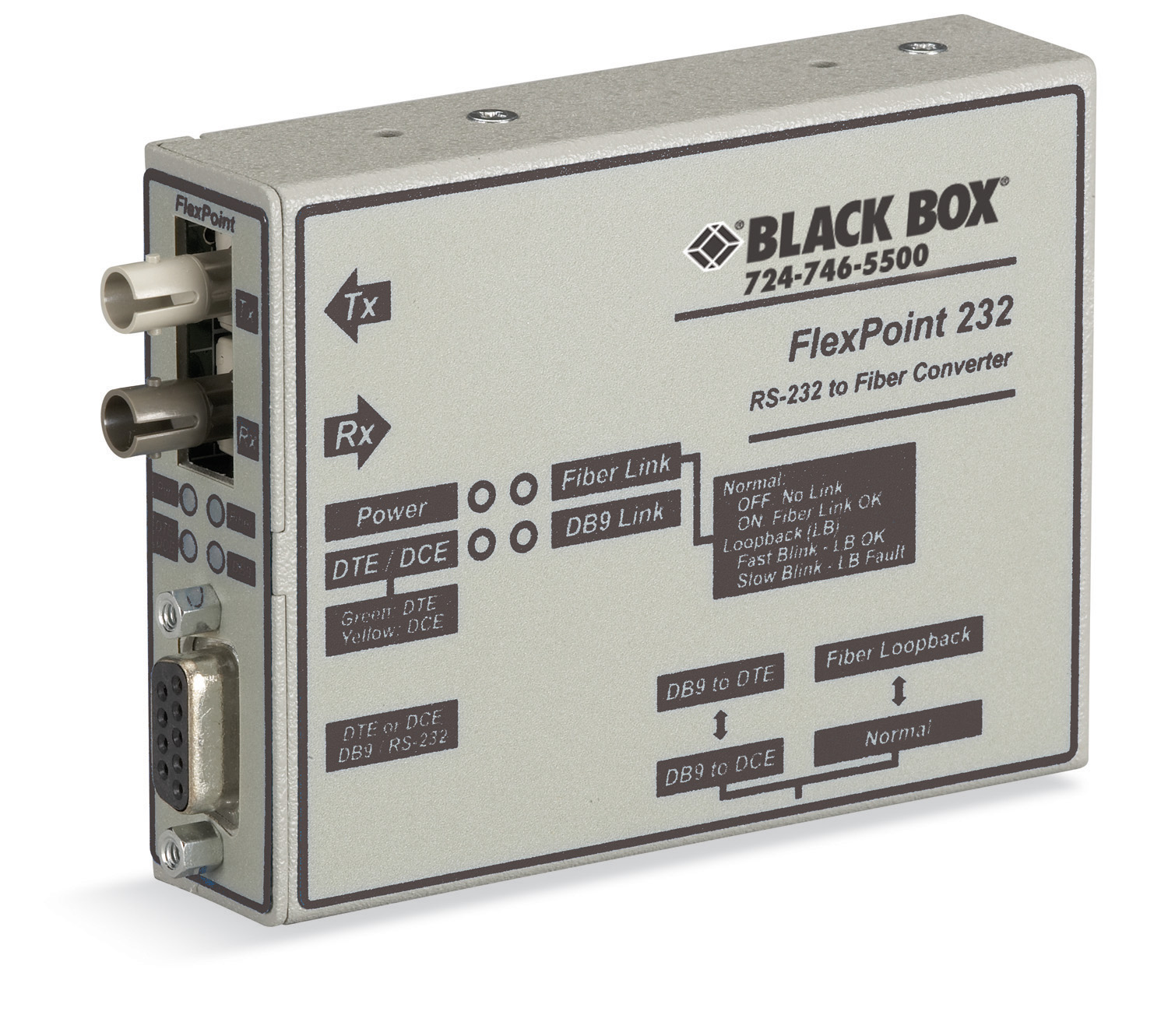

Flexpoint Async RS232 Extender over Fiber - DB9 Female to Multimode, 2.5 km
Extender async RS232 devices beyond the 50 ft limit via Multimode fiber cables at data rates up to 115.2 kbps and reach distances of 1.5 mi. (2.5 km).
Product Features
- Full duplex operation over MM fiber
- Data rate up to 115.2 kbps
- Range of up to 2.5 km (1.5miles) at 115.2 kbps over MM fiber
- DCE/DTE switch for easy direct connection no special cables needed.
- Remote loop capability for remote fiber testing and LEDs for status monitoring.
- Works as serial RS-232 fiber converter and extender.
This multimode fiber extender drives data up to 1.5 mi. (2.5 km). The extender autosenses speeds up to 115.2 kbps and works as a standalone or a hot-swappable chassis-based extender.
The extender is easy to install and includes a DC power supply. Or, you can power multiple units with the space-saving 19" rackmountable FlexPoint Power Chassis.
Featuring DTE/DCE configuration for easy connections to DTE or DCE devices using straight-through cabling, the extender supports half- and full-duplex operation.
The extender also has remote loop capability for remote fiber testing and LEDs for status monitoring.
This product works with:
- FlexPoint 14-Port Power Chassis (LMC200)
- FlexPoint 5-Position Mounting Kit (LMC205)
Questions? Contact our FREE Tech Support.
