#JPM906A-R6

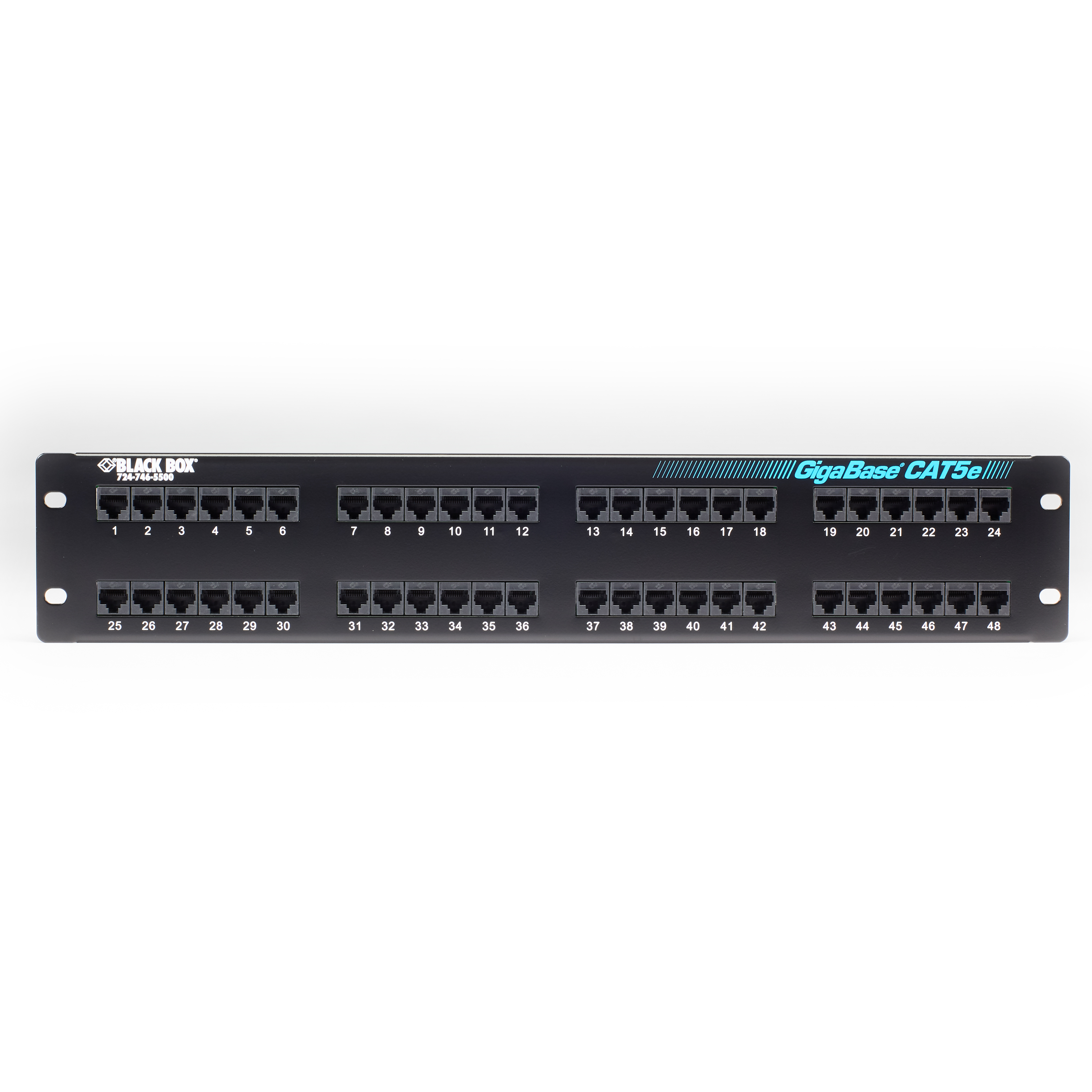

GigaBase® CAT5e Patch Panel - 2U, Unshielded, 48-Port
Component level tested patch panel for better performance.
Product Features
- Component level provides better performance and stability in the overall channel

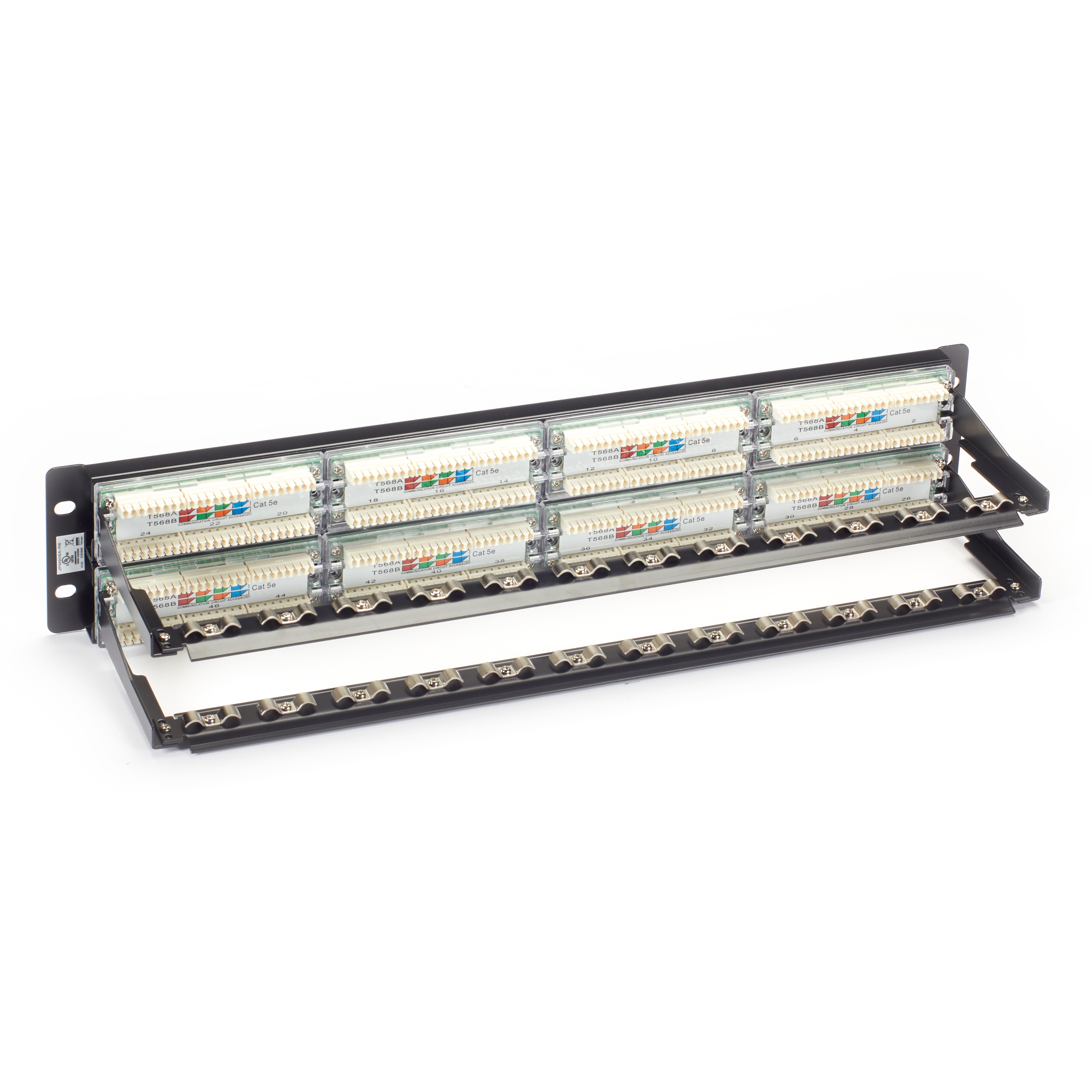

- Includes cable management bars that make organization easier
- Meets or exceeds ANSI/TIA/EIA-568-C.2 CAT5e component performance
- Component level tested panel that provides better performance and stability in the overall channel; the panel by itself can pass CAT5e
- Includes cable management bars that make organization easier
- Provides significant headroom over CAT5e specifications
- Universal wiring - panels are supplied with labeling for both T568A and T568B wiring
- Wide spacing between IDCs means increased room for cable

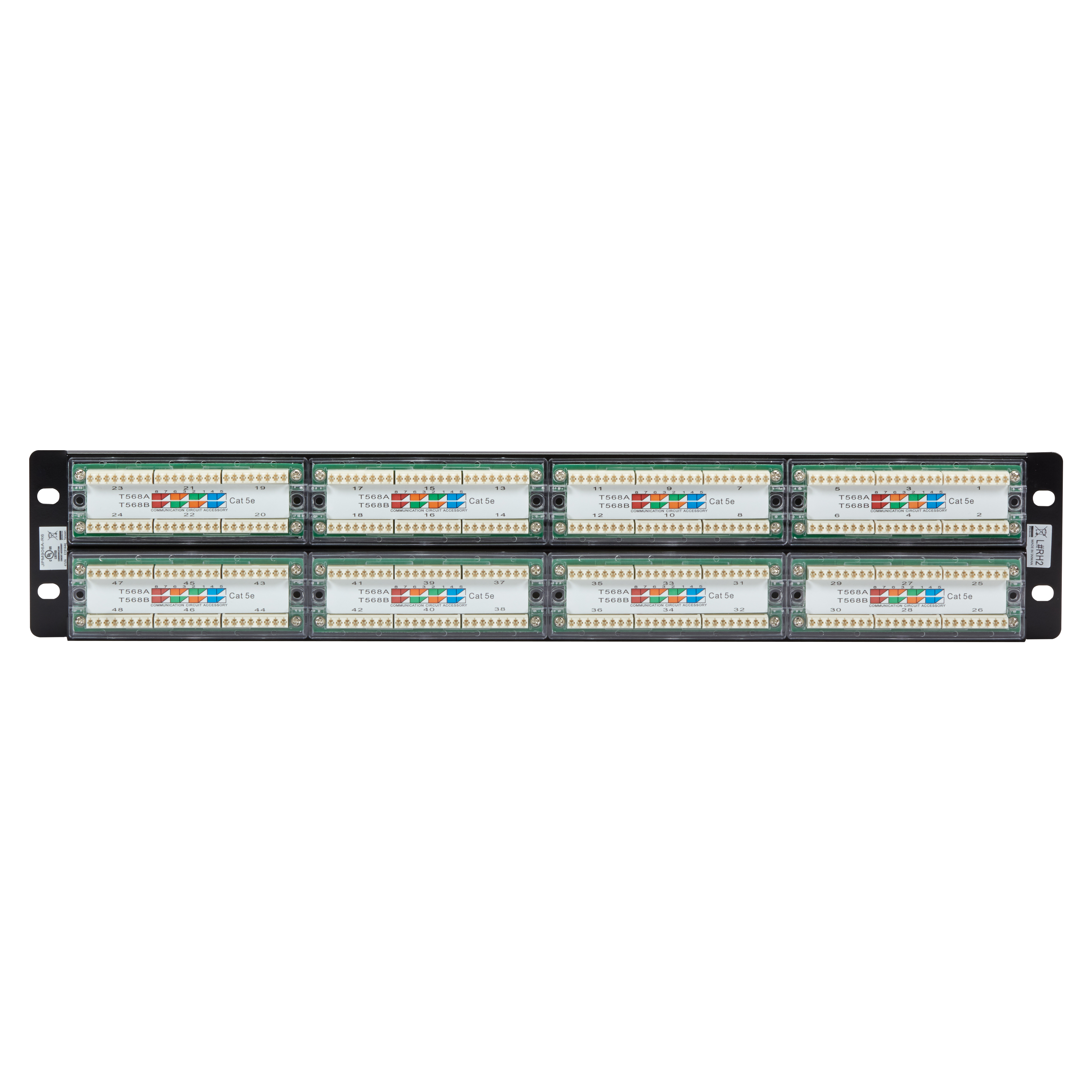

- Rear IDCs feature in-line paired punchdown sequence
- IDC 110 block features peaks to make lacing cable easier
- Rolled-edge construction provides superior panel rigidity
- Includes cable ties and mounting hardware
- CAT5e Panel
- Cables Ties
- (4) 10-32
- (4) 12-24 Cuphead Screws
- Stuffer Caps
- (1) Cable Support Bar
- Manual
NOTE(s):
Product works with: GigaBase 350 CAT5e Patch Cable (UTP) (EVNSL80), GigaBase CAT5e Jacks (FM920), GigaBase2 CAT5e Jacks (FMT920-R2). Also available in 24-port and CAT6 versions. Questions? Contact our FREE Tech Support.
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
