#JPM610A-R9

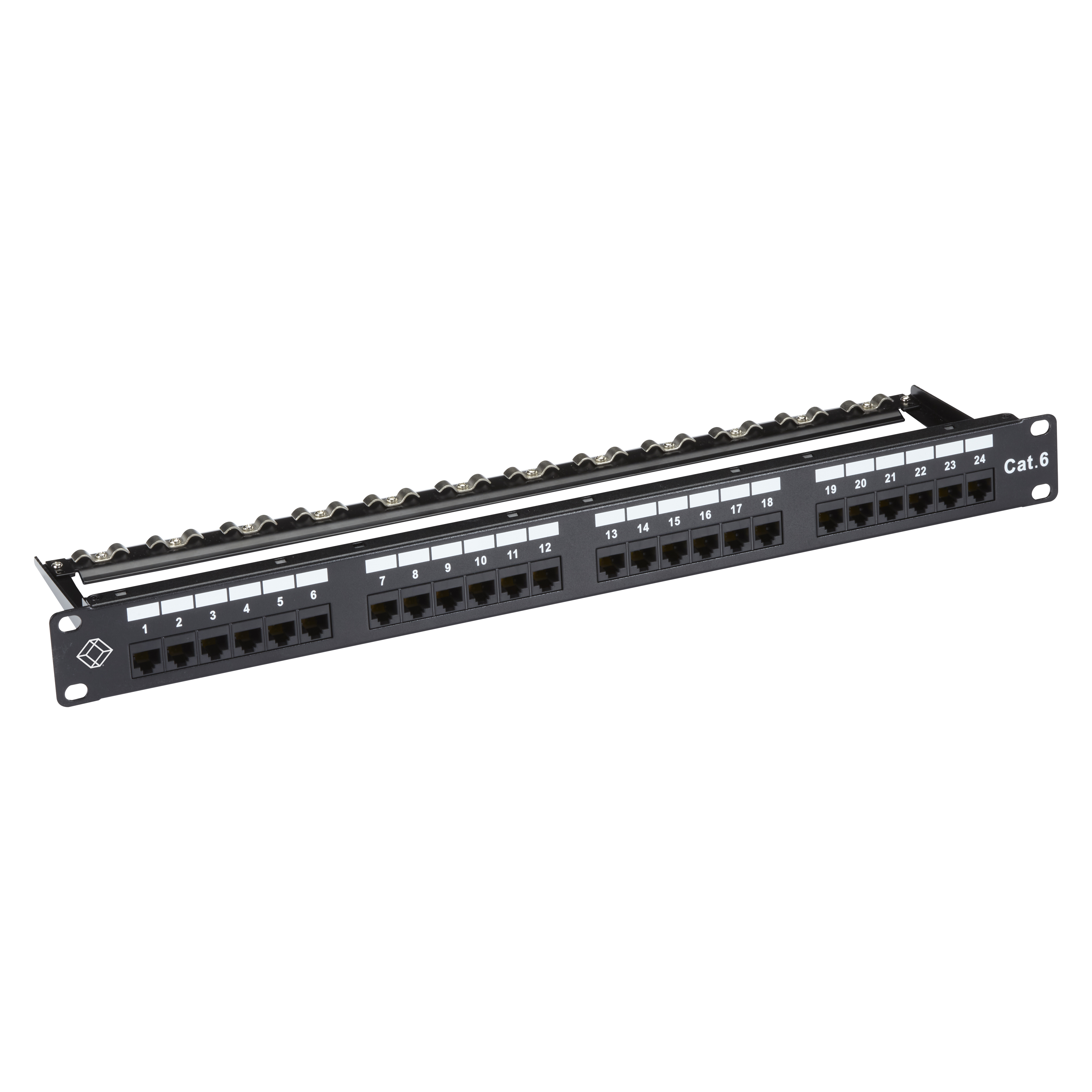

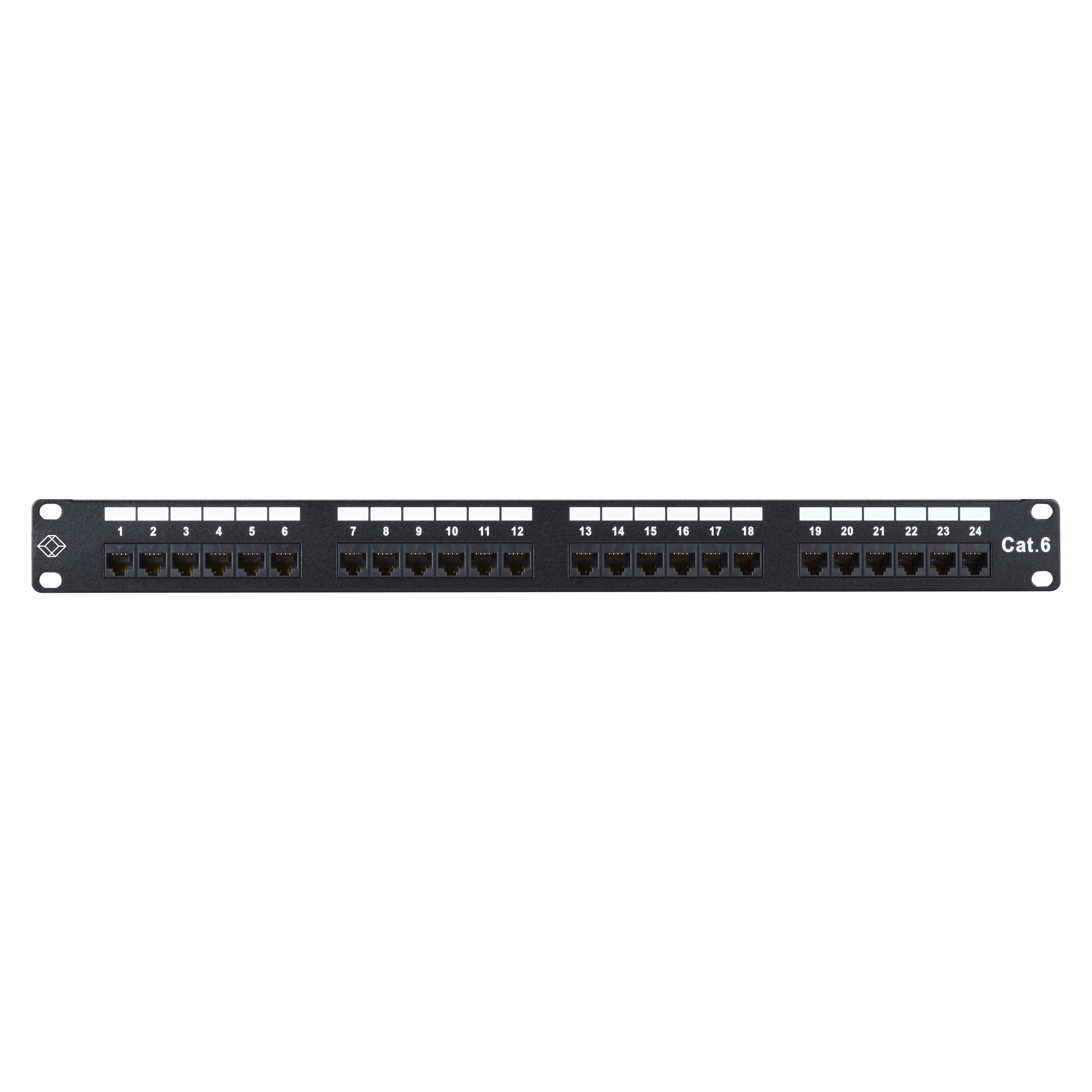

GigaTrue® CAT6 Patch Panel - 1U, Unshielded, 24-Port
Component level tested patch panel for better performance.
Product Features
- Component level provides better performance and stability in the overall channel

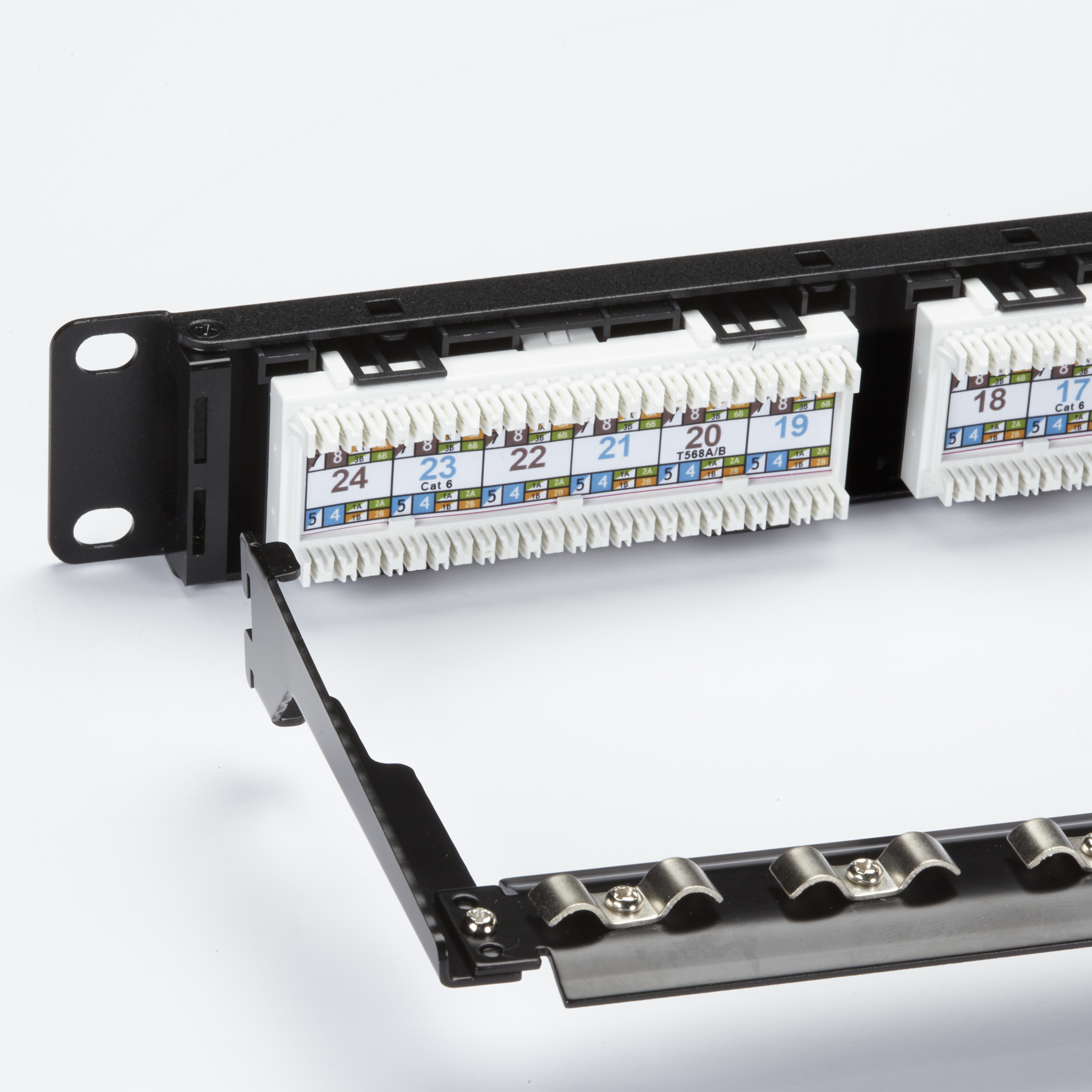

- Includes cable management bars that make organization easier
- Designed for use in our Component Level Verified GigaTrue® channel
- Meets or exceeds ANSI/TIA/EIA-568-C CAT6 component performance
- Component level tested panel that provides better performance and stability in the overall channel; the panel by itself can pass CAT6.
- Includes cable management bars that make organization easier.
- Meets or exceeds ANSI/TIA/EIA-568-C.2 Category 6 component performance specifications.
- Tested for NEXT, Power Sum NEXT, FEXT, Return Loss and attenuation to 250 MHz.

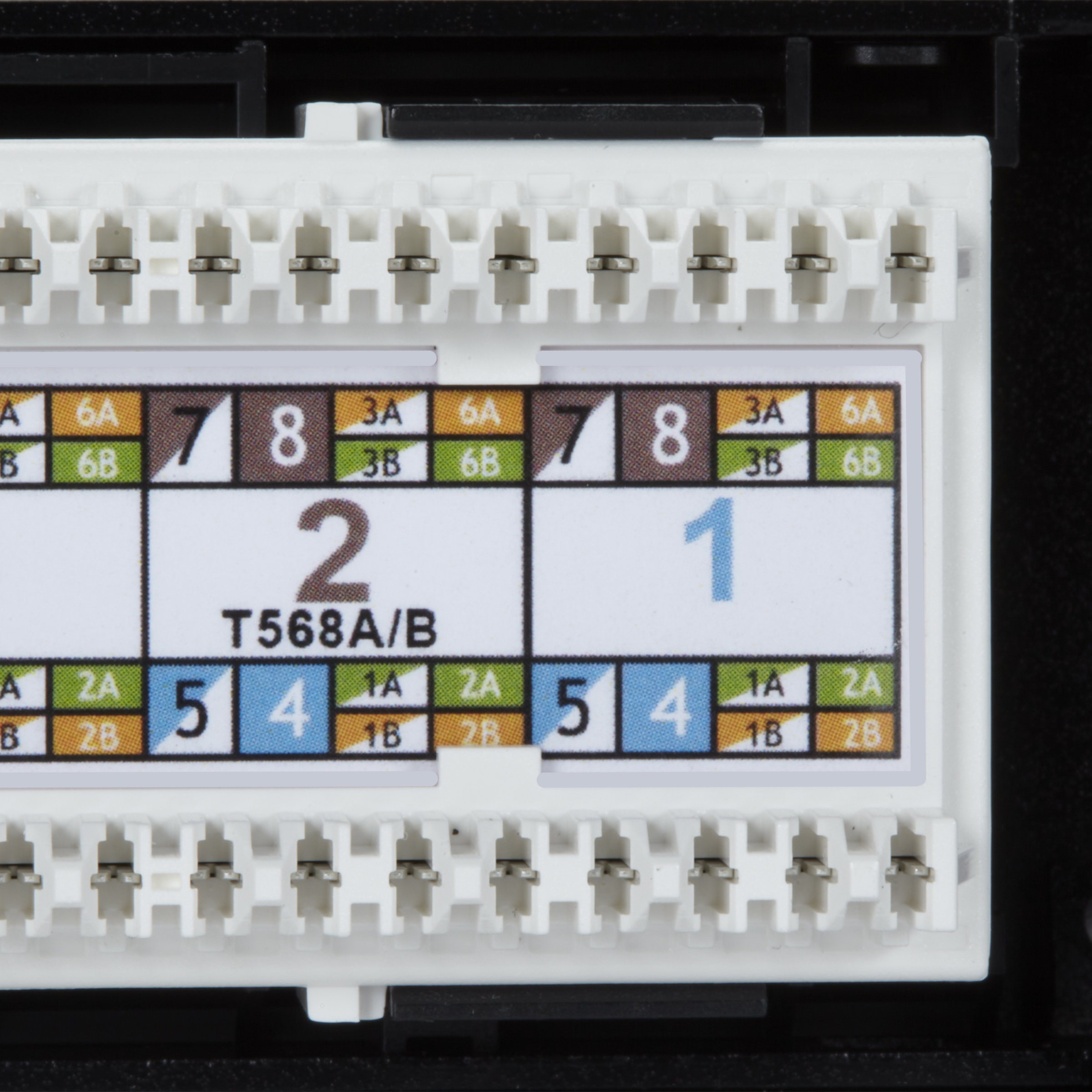

- Universal wiring - panel is supplied with labeling for both T568A and T568B.

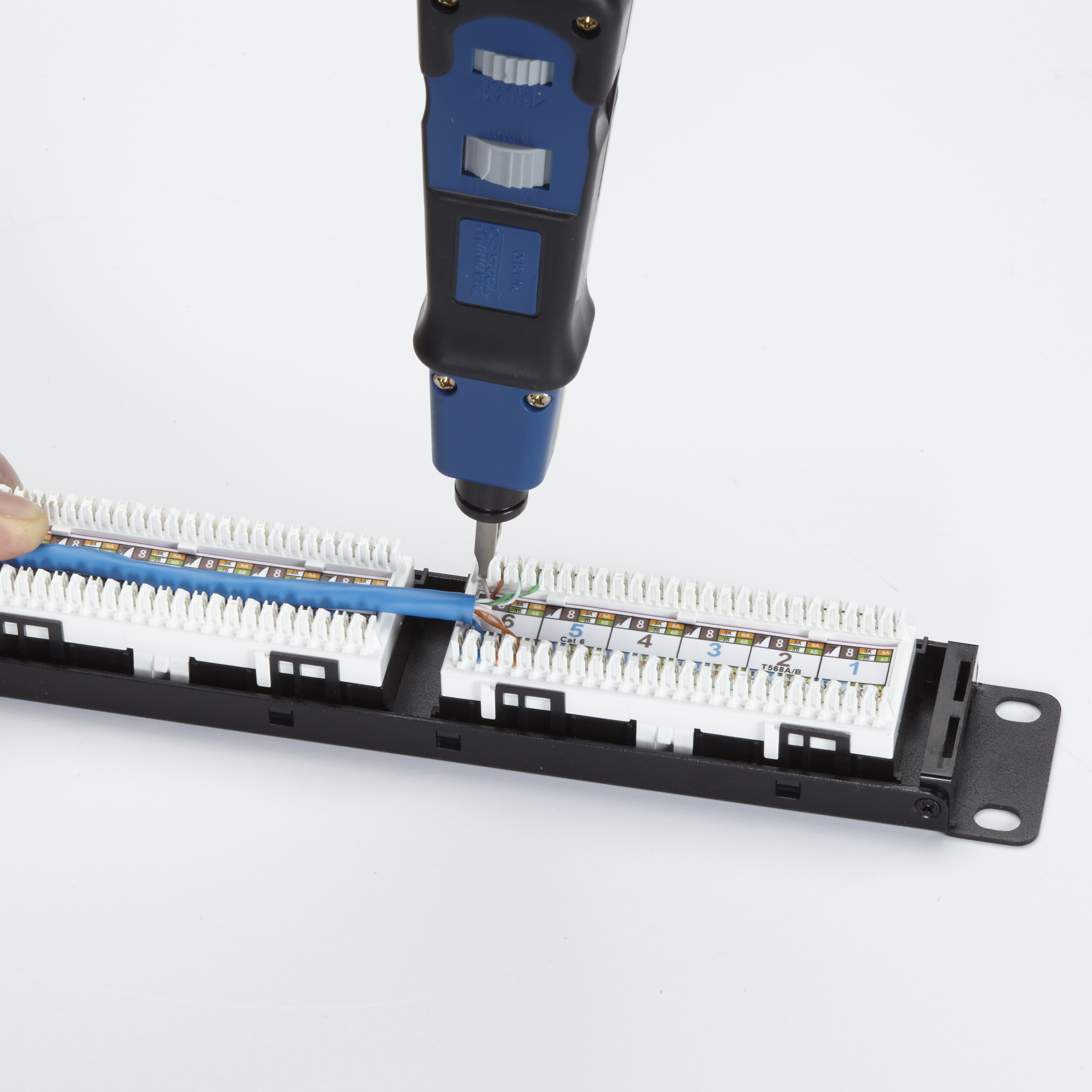

- Paired punchdown sequence enables pair twist within 1-2" of termination.

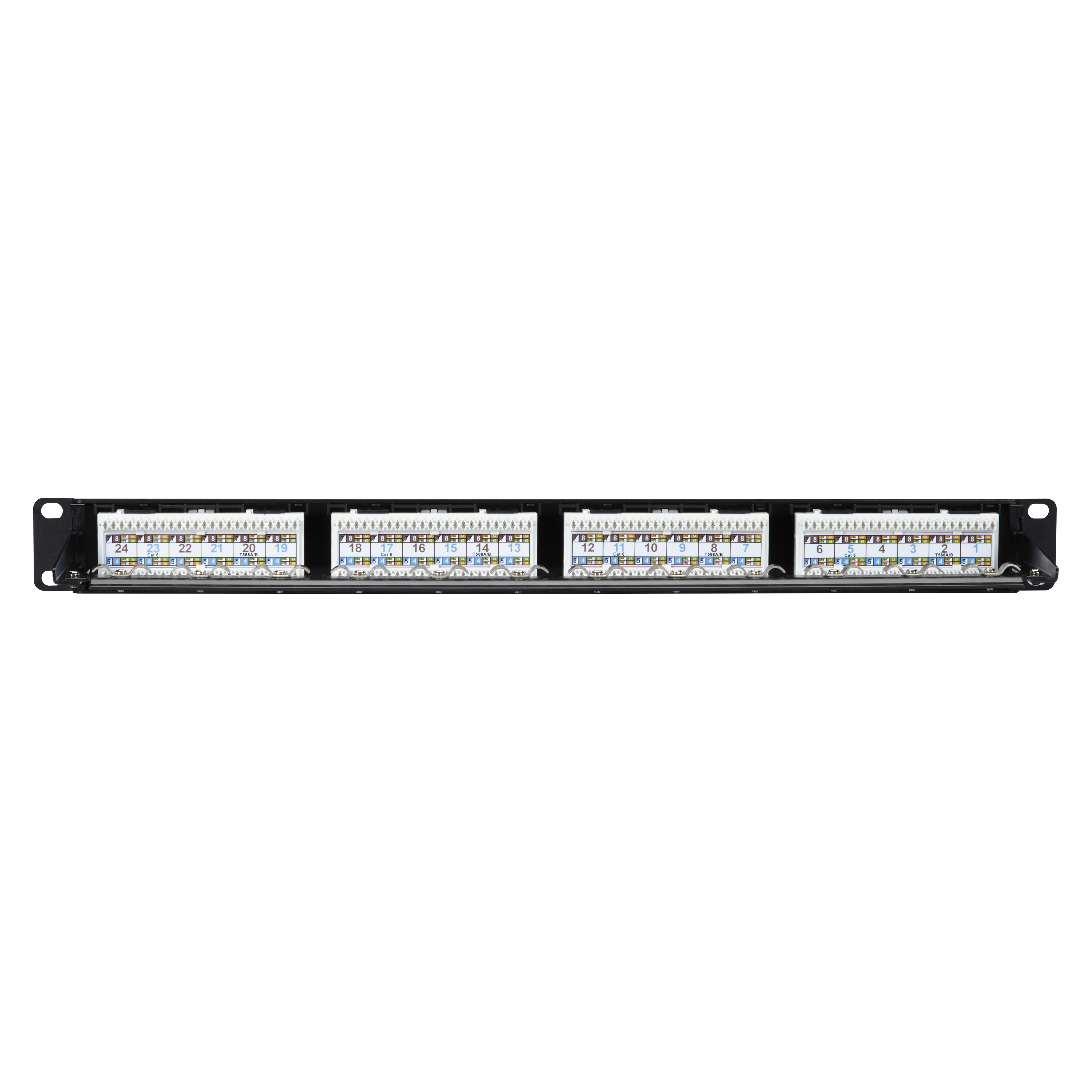

- Redesigned IDC 110 block features peaks to make lacing cable easier.
- Rolled-edge construction provides superior panel rigidity to eliminate flex during termination.
- Includes cable ties and mounting hardware.
- CAT6 Panel
- Cables Ties
- (4) 10-32
- (4) 12-24 Cuphead Screws
- Stuffer Caps

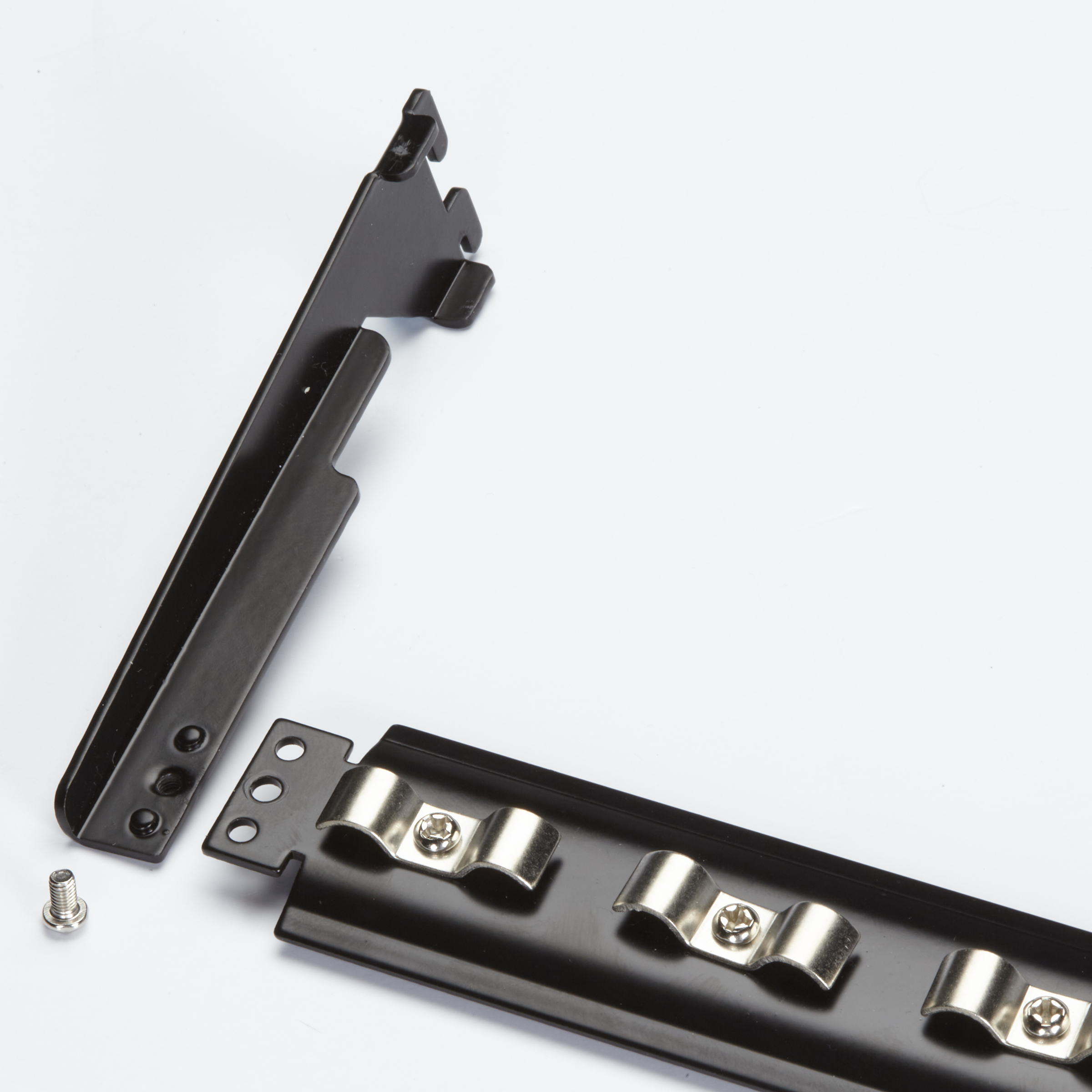

- (1) Cable Support Bar
- Manual
