#JPM612A-R8
GigaTrue® CAT6 Patch Panel - 2U, Unshielded, 48-Port
Component level tested patch panel for better performance.
Product Features
- Component level provides better performance and stability in the overall channel
- Includes cable management bars that make organization easier
- Designed for use in our Component Level Verified GigaTrue® channel
- Meets or exceeds ANSI/TIA/EIA-568-C CAT6 component performance
- Component level tested panel that provides better performance and stability in the overall channel; the panel by itself can pass CAT6
- Includes cable management bars that make organization easier
- Meets or exceeds ANSI/TIA/EIA-568-C.2 Category 6 component performance specifications
- Tested for NEXT, Power Sum NEXT, FEXT, Return Loss and attenuation to 250 MHz
- Universal wiring - panel is supplied with labeling for both T568A and T568B
- Paired punchdown sequence enables pair twist within 1/2" of termination
- Redesigned IDC 110 block features peaks to make lacing cable easier
- Rolled-edge construction provides superior panel rigidity to eliminate flex during termination

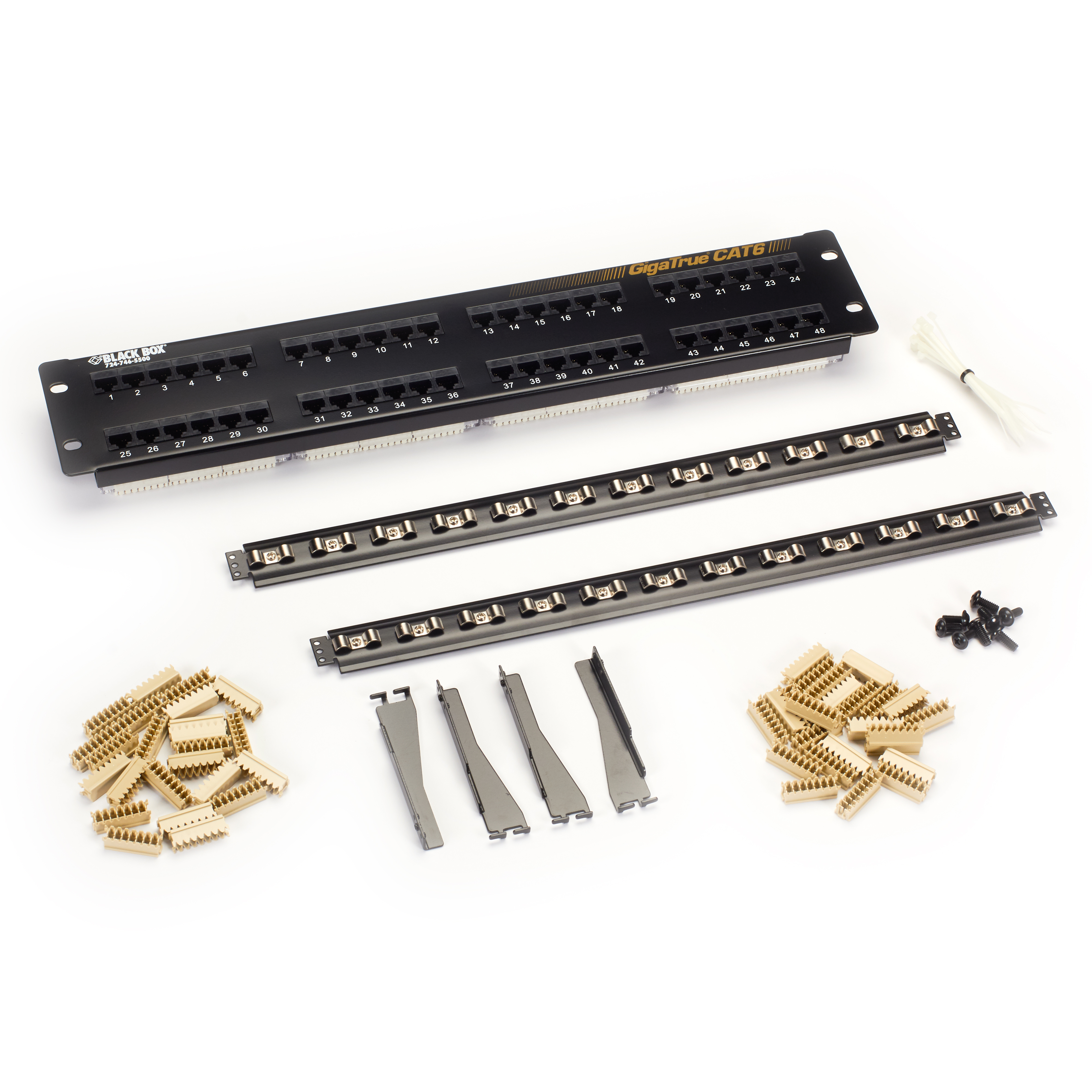

- Includes cable ties and mounting hardware
- CAT6 Panel
- Cables Ties
- (4) 10-32
- (4) 12-24 Cuphead Screws
- Stuffer Caps
- (1) Cable Support Bar
- Manual
NOTE(s):
Product works with:
- GigaTrue 6 Patch Cable, 4-Pair (EVNSL641, etc.)
- GigaTrue CAT6 Jacks (FM630-R2 - FM640-R2)
- GigaTrue2 CAT6 Jacks (FMT630-R2 - FMT640-R2)
- Also available in 24-port, 96-port, and CAT5e versions.
