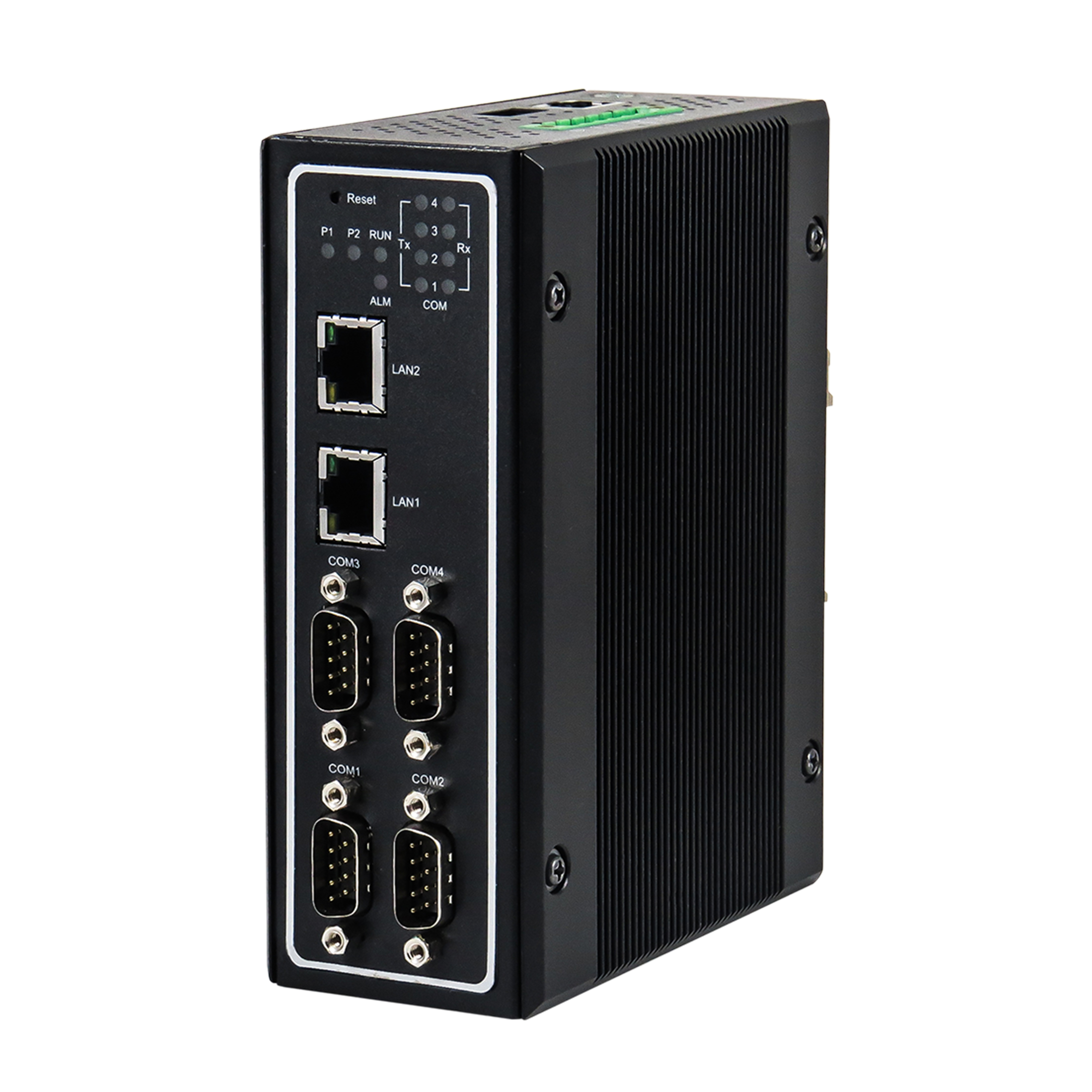

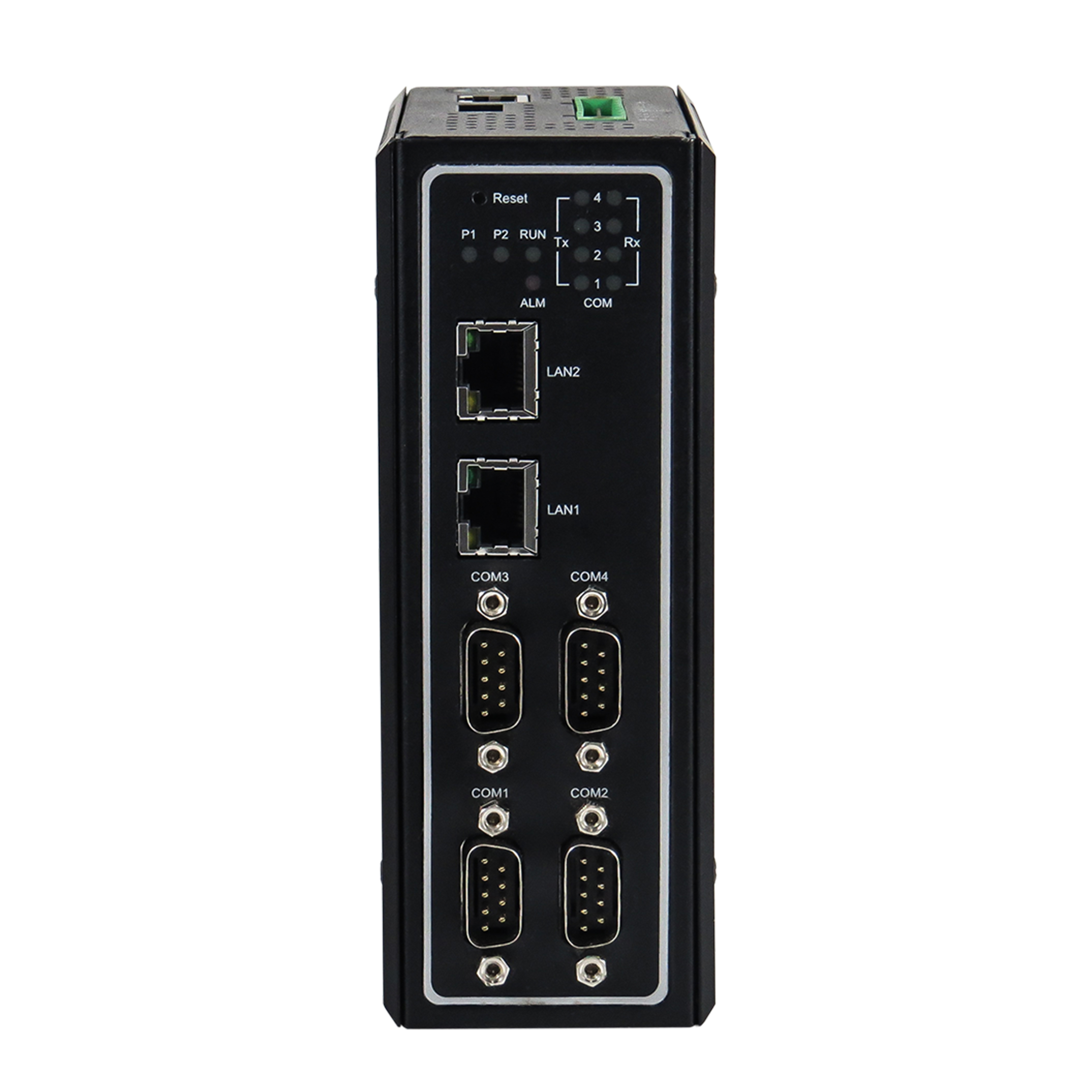

#LES920A
Industrial RS-232/422/485 Serial Device Server - 4-Port
Connect almost any serial device to an Ethernet network. Extended temperature range supports industrial environments.
Product Features
- Remotely monitor, manage, & control industrial field devices
- Industrial EMC protection, -40 to +85°C
- Fast Ethernet ports or 2 100/1000 SFP slots w/ RSTP redundancy
- 4 software-selectable RS-232/485/422 serial ports, 921-kbps
- TCP Server/Client, UDP, Virtual COM, & Tunneling modes
- Embedded security w/ PPTP, IPsec, or OpenVPN client/server
- Isolated redundant 12-48 VDC power inputs/powered (PoE models) via an Ethernet cable
- Configure via Web browser/serial console/Telnet/Windows utility
Prepares Serial Devices for the Network
The Industrial Serial Device Server allows almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, the serial device server transmits full-duplex and bi-directional data seamlessly between the four serial ports and the Ethernet network, through two 10/100 Ethernet ports or two 100/1000 SFP Fiber slots.
Provides Advanced Embedded Security
The serial device server embeds OpenVPN and IPsec VPN, tunneling data securely through the internet while preventing unauthorized control of your serial devices by malicious actors. Rapid Spanning Tree Protocol (RSTP) supports a backup Ethernet link if the primary one fails.
Easy to Use
Configure the unit over Ethernet by Telnet, Web browser, serial console, or our Windows® Utility. Packed in a rugged metal housing for wall or DIN-Rail mount with redundant 12-48 VDC power input and one relay output, the serial device server is ideal for almost any industrial and manufacturing automation process. Virtual COM software creates a virtual environment for applications accessed via TCP.
Ideal for Automation Fields and Harsh Environments
In industrial and manufacturing automation fields, the device server is used as a field device to connect to Ethernet through TCP/IP protocol directly. The server works in conjunction with PLCs, HMIs, barcode scanners, data terminals, and more. Its design protects it from very harsh EMC and environmental conditions, perfect for advanced applications.
Rugged and Flexible
The serial device server features embedded high EMC protection, wide-range temperature operation, programming, and installation flexibility in one device. PoE versions can be powered through Power-over-Ethernet (PoE 802.3af) without additional cabling and power supply. SDK versions allow you to use powerful hardware and develop your own applications.
- (1) Unit
- (1) Power Supply
- (1) CD
- (1) 6 ft. DB9F to DB25M Modem Cable
- (1) Quick Start Guide
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
