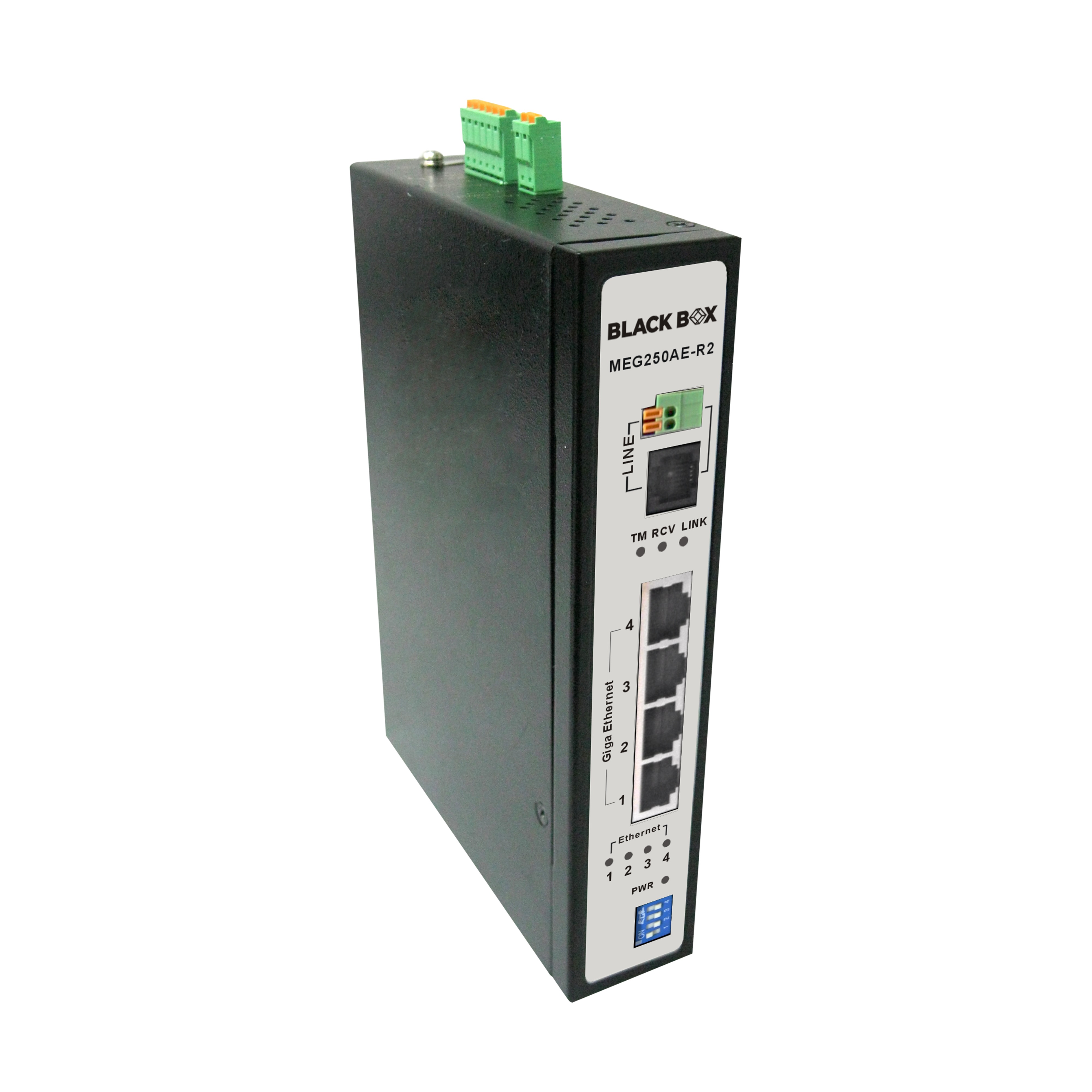

#MEG250AE-R2
Industrial VDSL2 Bridge
Transmits data at 160 Mbps and broadband multimedia services to all stations up to 3 km via 24-AWG existing telephone wires within a facility.
Product Features
- Supports high bandwidth up to 160-Mbps symmetric over line ports
- Enables long-reach transmission up to 3 km with a 24-gauge phone wire
- Features auto speed and 8 profiles mode selectable by DIP switch
- Master and Slave mode selectable by DIP switch
- Handles Jumbo frames up to 2K bytes
- Has a built-in surge protector

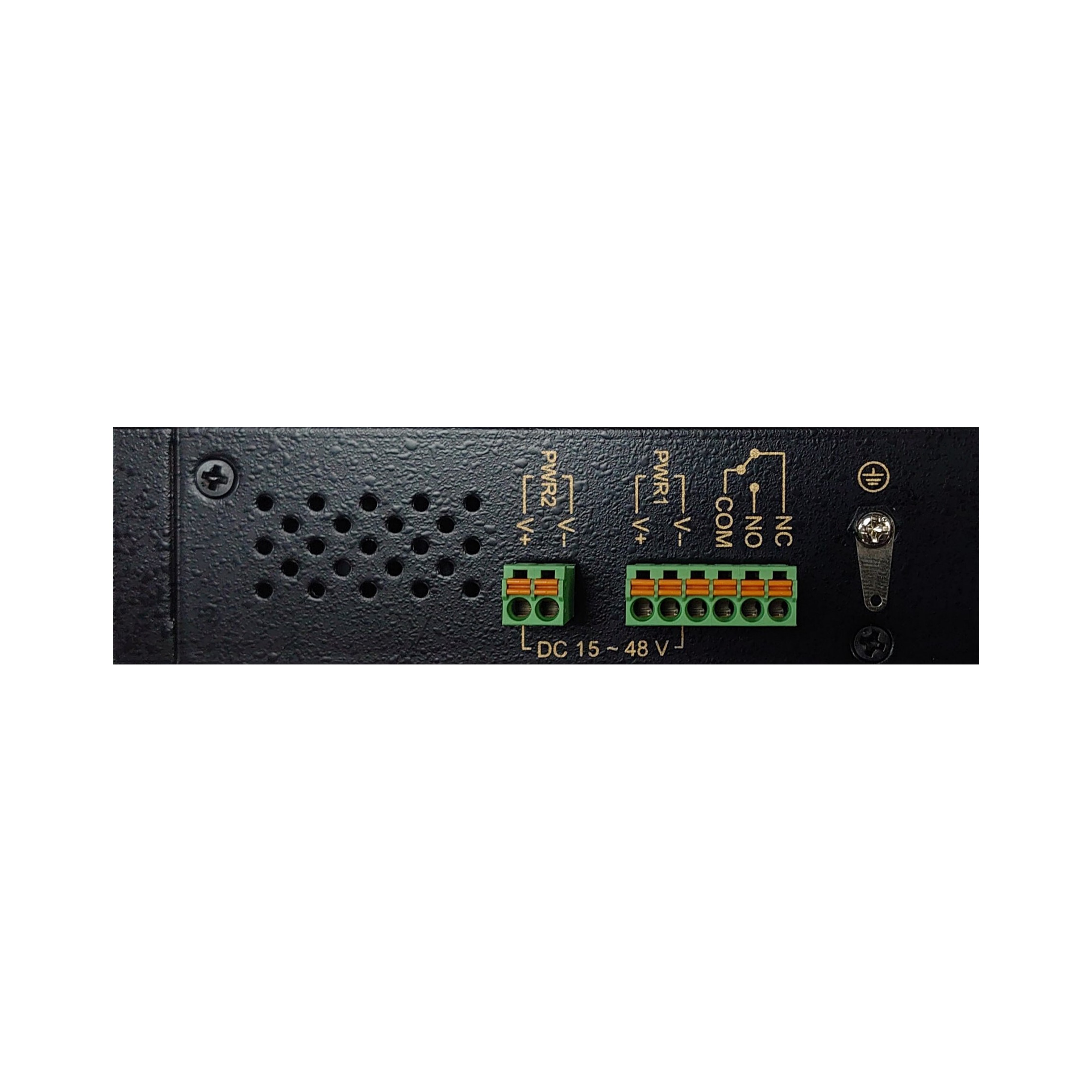

- Includes redundant power and wide-range dual power inputs (15 to 48-VDC)
- Offers overload current protection
- Protects against reverse polarity
- Includes an alarm contact (relay output - 1 A @ 24 VDC)

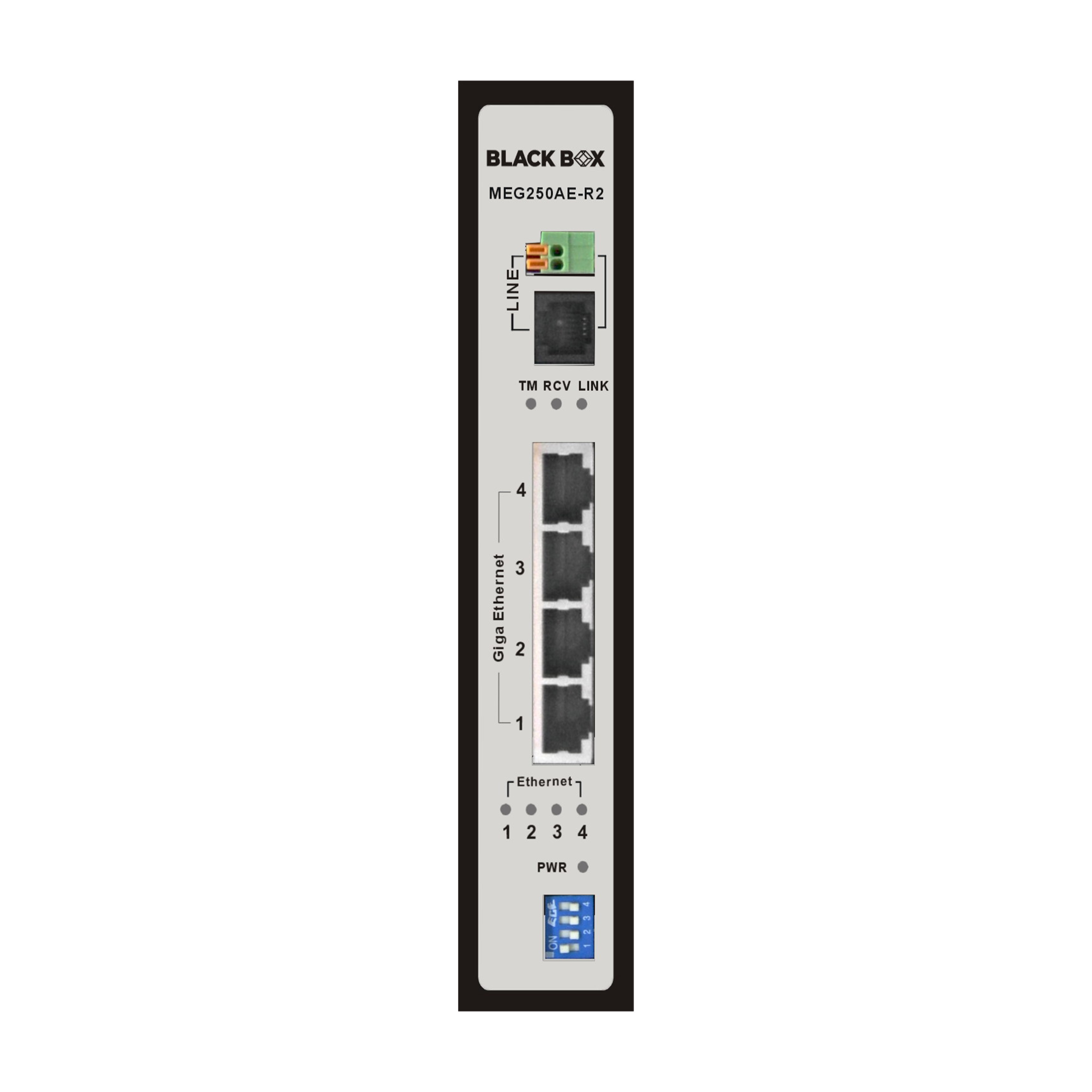

The Industrial VDSL2 Bridge provides high-speed transmissions up to 3 km using the 24-AWG telephone wires installed within a facility. The single-port bridge, equipped with four 10/100/100-Mbps Ethernet ports, transmits data at 160 Mbps as well as broadband Multimedia services to all stations required and supports 2000 bytes maximum packet size. To configure for either local Central Office (CO) or remote customer premise equipment (CPE) operation, just flip a DIP switch.
The Industrial VDSL2 Bridge is designed especially for industrial applications with a rugged metal IP30 chassis supporting DIN-rail mount installations and an extended temperature range from -20° up to +70° Celsius. Integrated surge and overload current protection ensure a long-life cycle. Redundant power and direct DC inputs from 15 to 48 VDC complete the intelligent design.
- (1) VDSL2 Bridge
- (1) DIN-Rail Mounting Plate
- (2) Screws
- (4) Feet
- (1) RJ11 Protective Cap
- (3) RJ45 Protective Caps
- (1) 6-pin Terminal Block
- (1) 2-pin Terminal Block
