#KVXLCDPF
KVX Series KVM Extender Kit over Fiber - 4K, DisplayPort, USB 2.0 Hub, Serial, Audio, Local Video
Extend KVM signals up to 33,000 feet (10km) over singlemode fiber via SFP
Product Features
- DisplayPort 4K transmission up to 30 km over singlemode cable
- Local and remote units connect at distances of up to 10 km using SFP below 1250 Mbps
- Supports DisplayPort UHD video resolution up to 3840x2160 at 30Hz
- Transparent USB 2.0 extension supports HID devices, mass storage devices
- Supports RS-232 peripheral (serial) devices
- Bi-directional audio via speaker/mic connection
- Local video port loopback for monitoring on transmitter (TX) unit

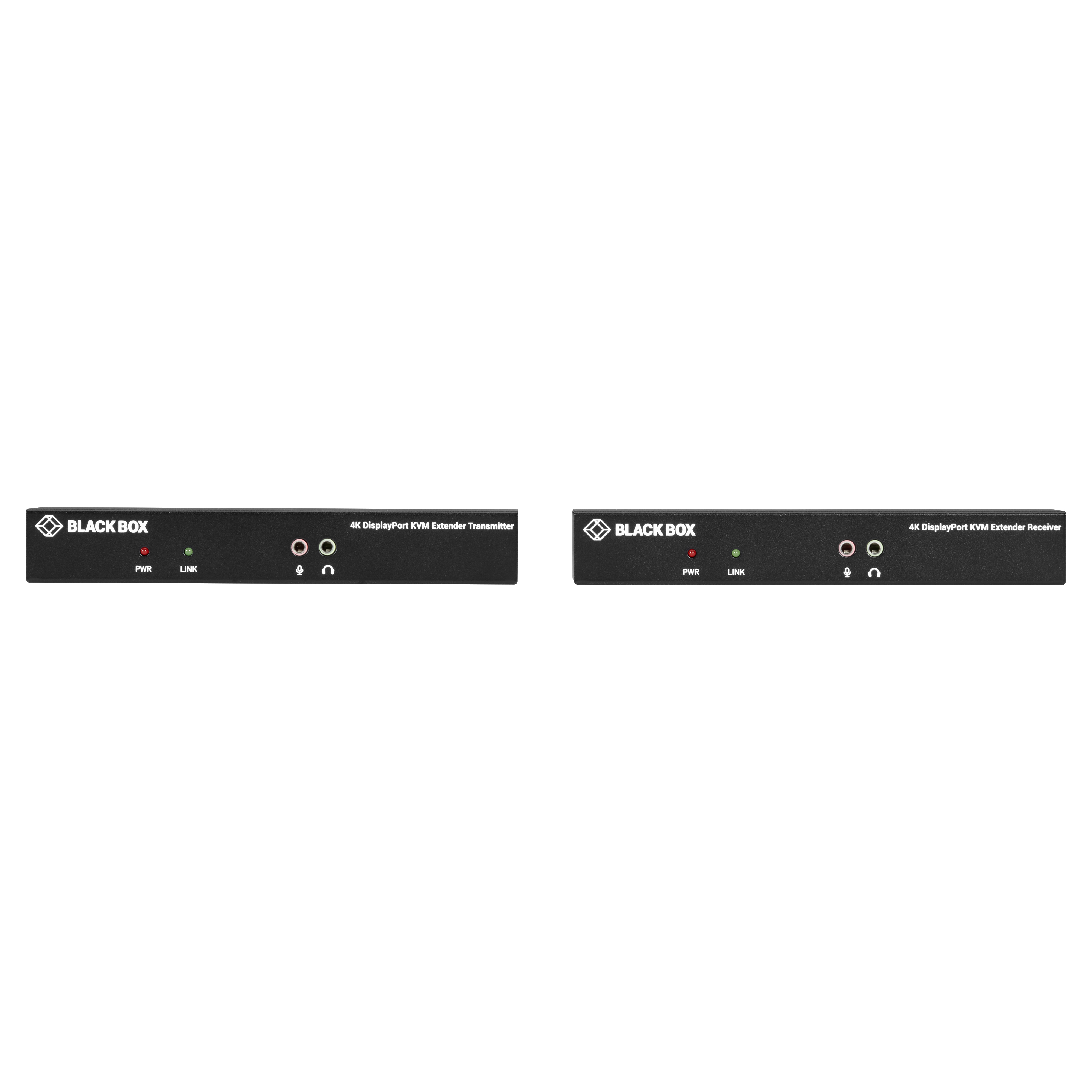

The KVXLCDPF-100 DisplayPort KVM Console Extender lets you control a server, or computer over single-mode fiber at distances of up to 30 km. PC connection cables are included with this product making it a solution that is ready right out of the box.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.
KVX Series Extenders also include local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.
KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution that allows them to operate servers or PCs from remote locations. Or, customers who require control of physically inaccessible systems, placed in secure locations, or otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

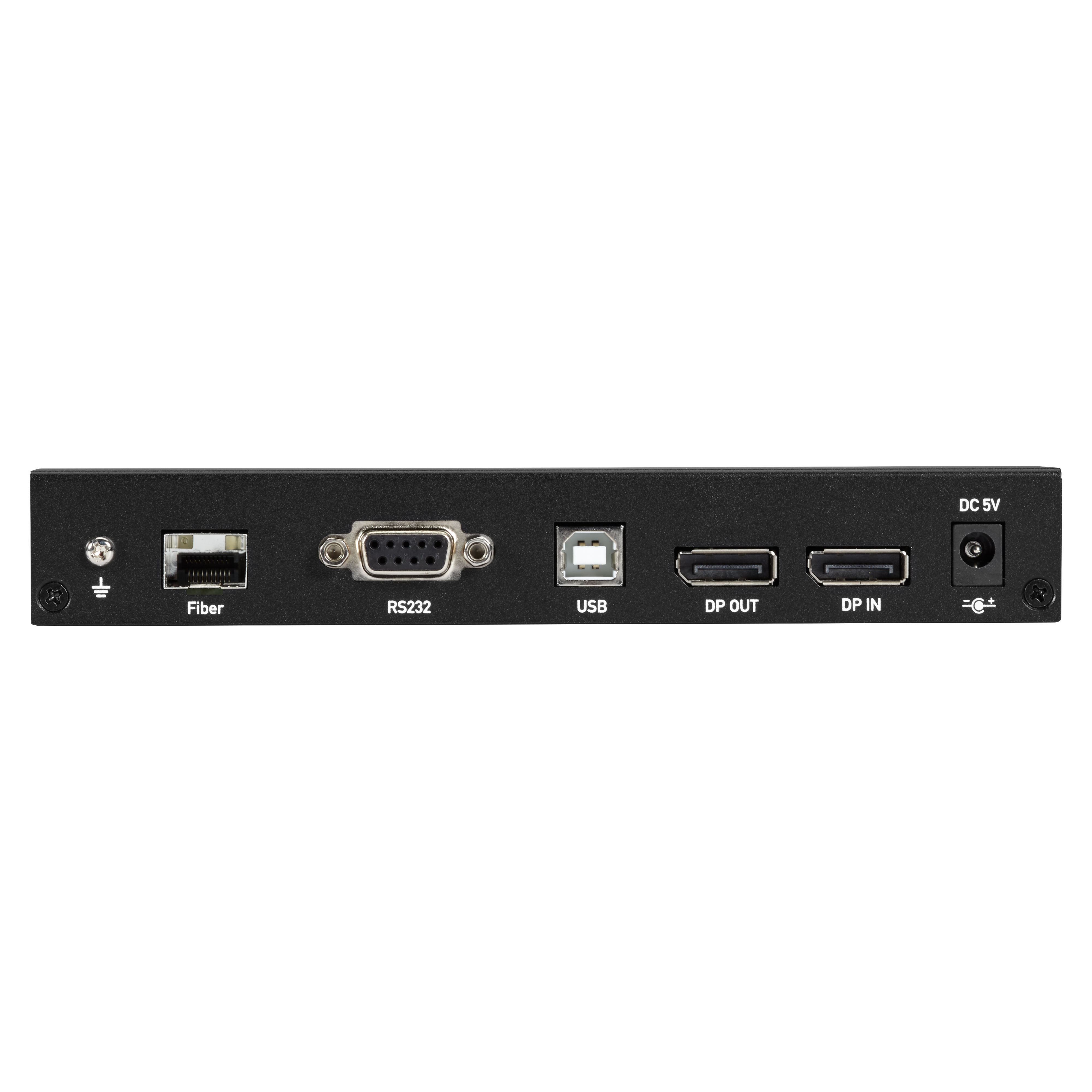

- (1) Transmitter

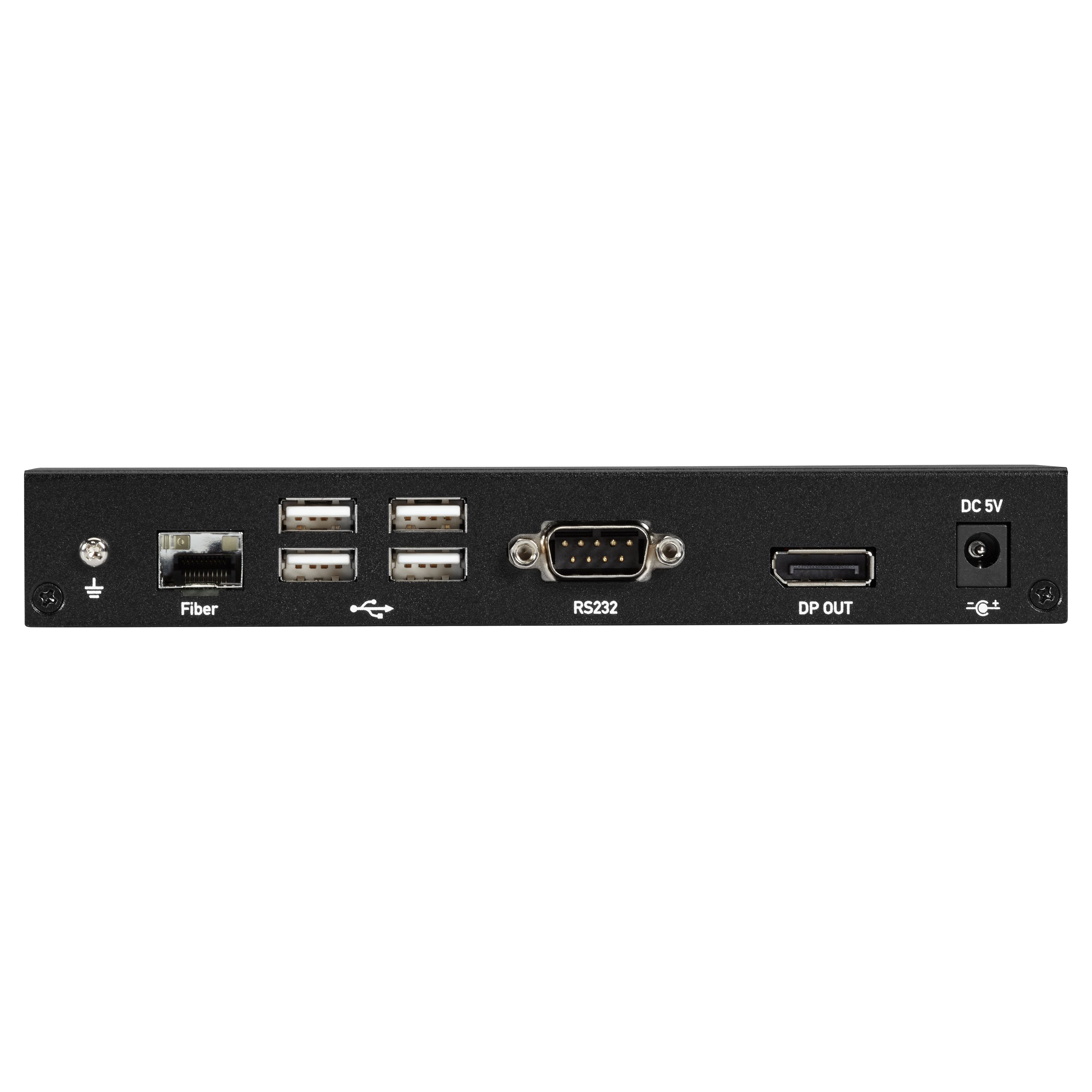

- (1) Receiver
- (2) 5V, 2A Power Supplies (includes US, EU, AU & UK Plug types)
- (1) or (2) DisplayPort Cables 1.2m (4 ft.)
- (1) USB Type A To B Cable, Male/Male 1.8m (6 ft.)
- (1) 3.5-mm Dual Audio/Mic Cable, Male/Male 1.8m (6 ft.)
- (2) Deskmounting Brackets (with Screws)
