#LFP443

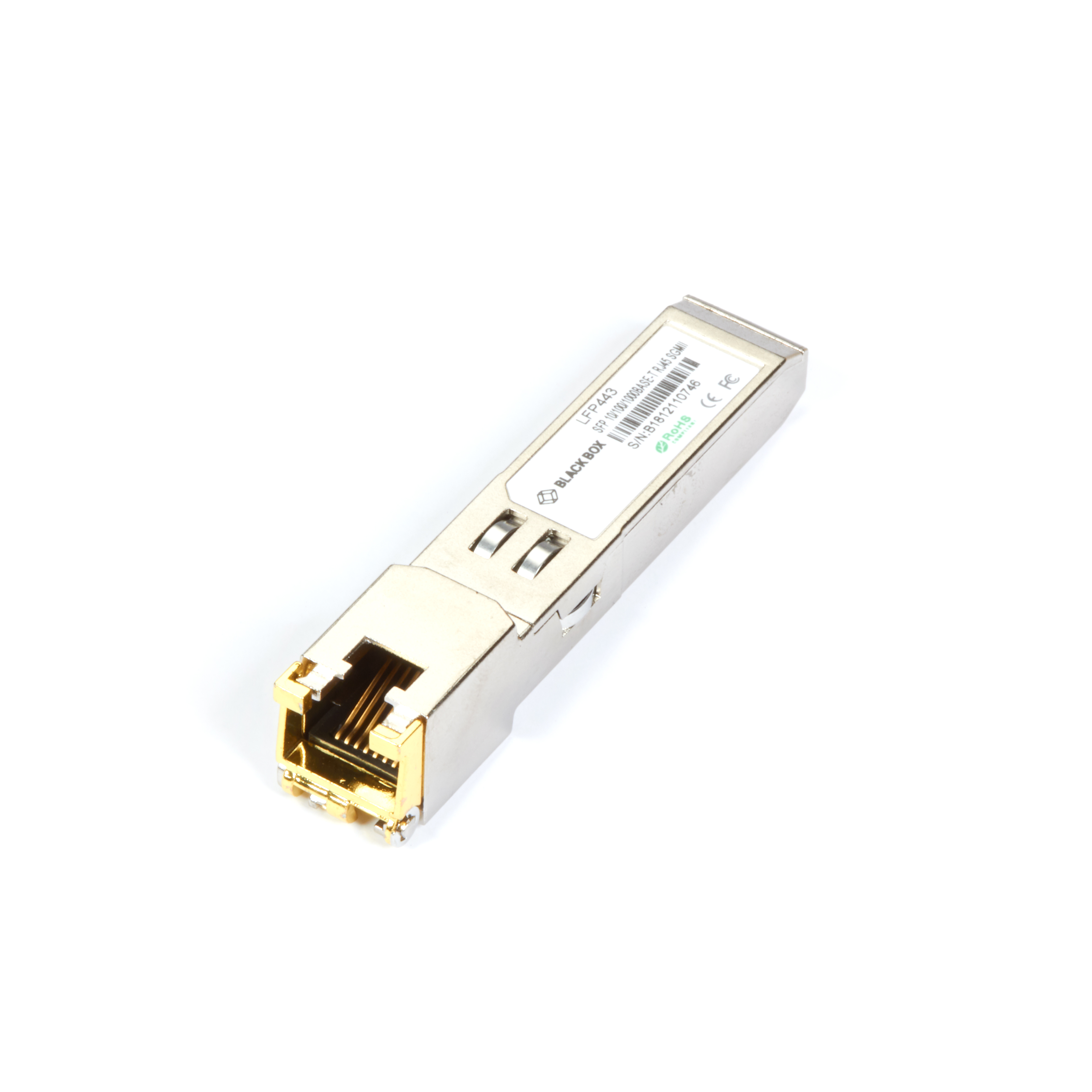

LFP440 Series Gigabit (1.25-Gbps) SFP - (1) 10/100/1000-Mbps Copper RJ45, 100m, SGMII, 100m
Modular flexible optical transceivers for data communications equipment.
Product Features
- Up to 1.25 Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Low power dissipation(1.05W typical)

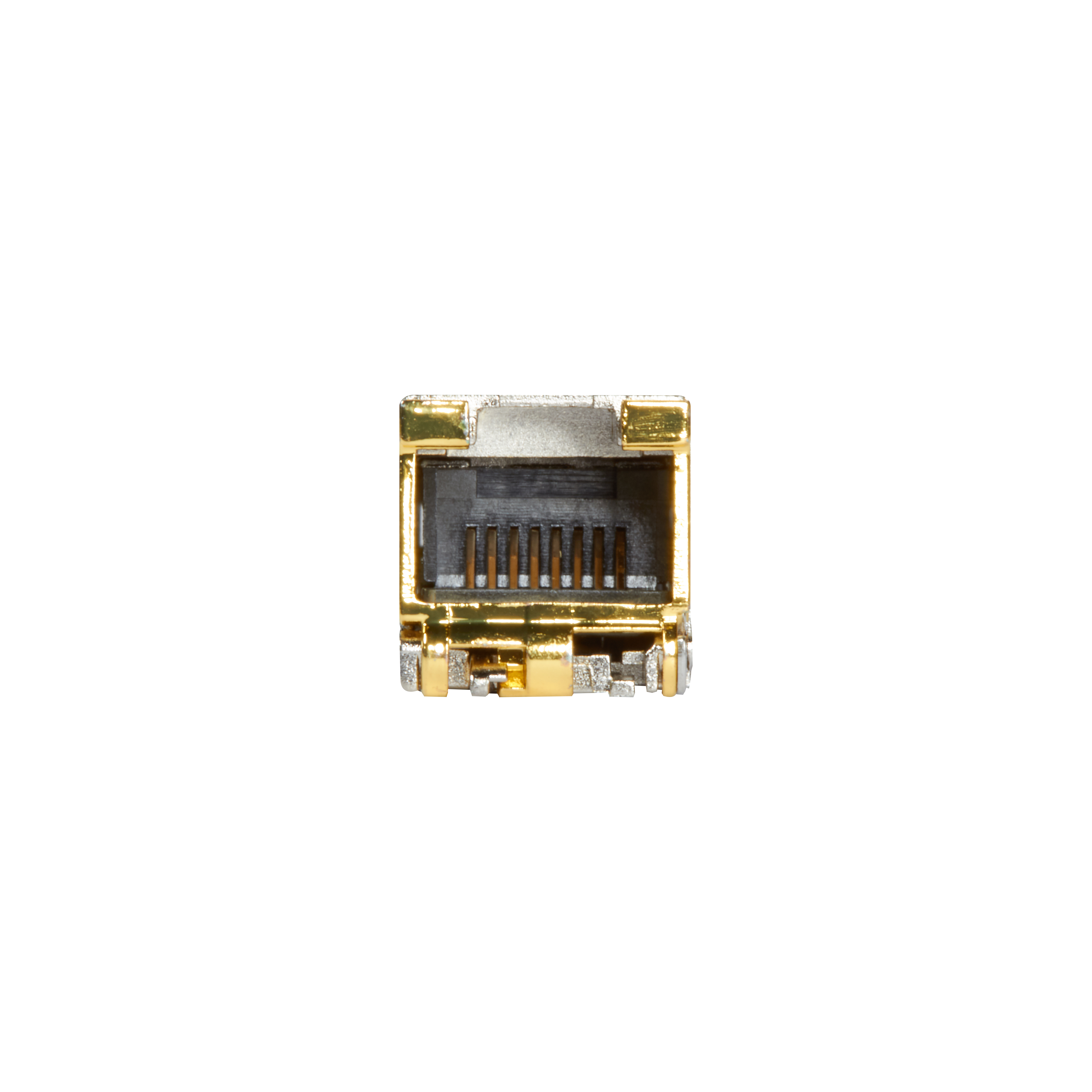

- Compact RJ-45 connector assembly
- Fully metal enclosure, for lower EMI
- RoHS compliant and lead-free
- Single +3.3V power supply
- 10/100/1000 BASE-T operation in host systems with SGMII interface
- 1.25 Gigabit Ethernet over Cat 5 cable
- Case operating temperature: Commercial: 0°C to +70°C Extended: -10°C to +80°C Industrial: -40°C to +85°C
10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi-Source Agreement (MSA). They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3. The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features. 10/100/1000 BASE-T is compatible with 1000BASE-X auto-negotiation but does not have a link indication feature (RX_LOS is internally grounded).
