#LGC5212A

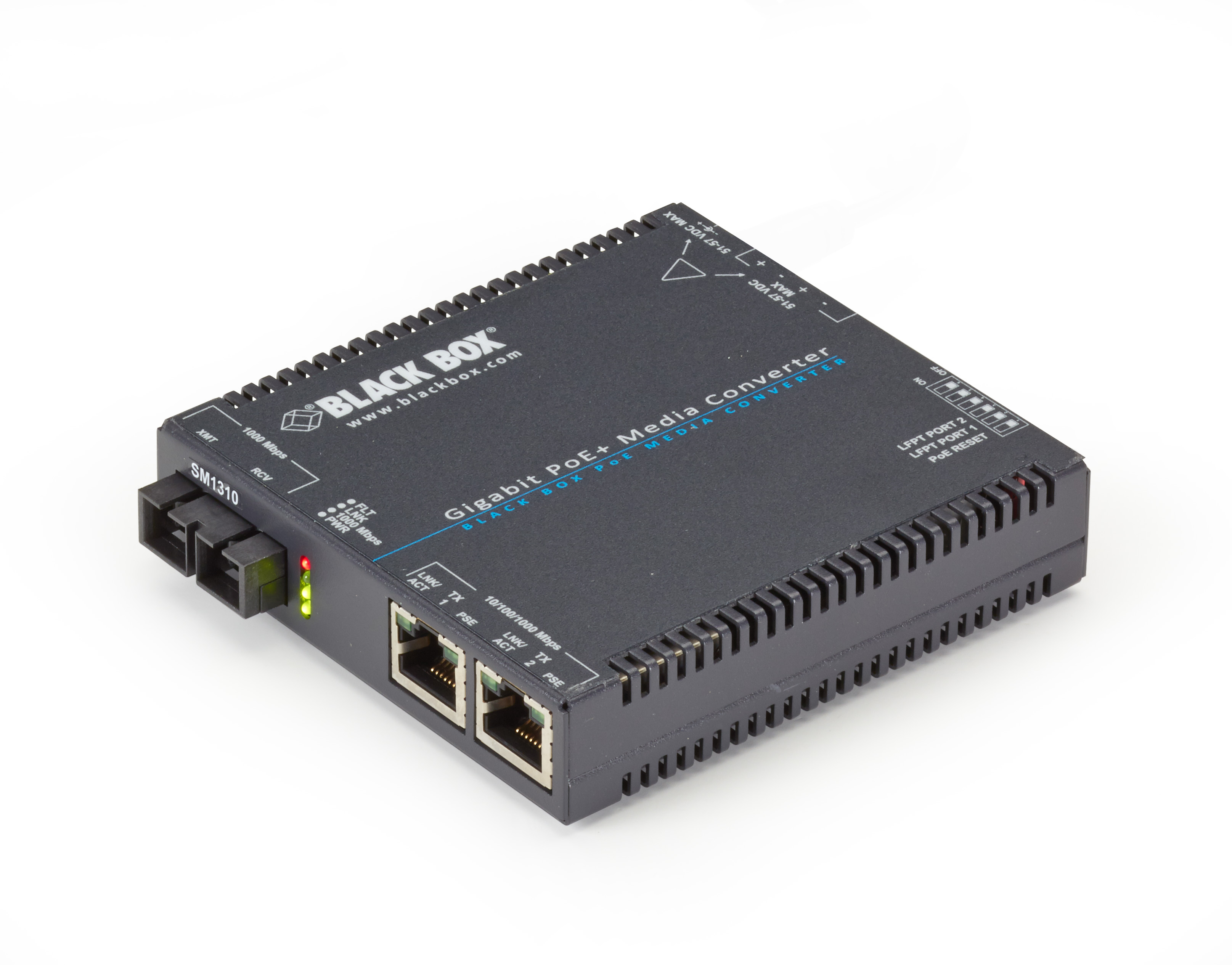

LGC5200 Series Gigabit Ethernet (1000-Mbps) PoE+ Media Converter - 10/100/1000-Mbps Copper to 100/1000-Mbps Singlemode Fiber, 1310nm, 15km, SC
Connect with fiber and provide power to remote PoE devices.
Product Features
- Features two 10-/100-/1000-Mbps copper ports and one 1000Mbps fiber port.
- Both UTP ports are autosensing with Auto MDI/MDI-X; one UTP port supports 802.3at PoE+.
- Acts as power sourcing equipment (PSE) on the copper side to power PoE devices.
- Features an extended temperature range when used with DC terminal-block power
This tough media converter is the ideal way to extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras, wireless access points, and VoIP phones.

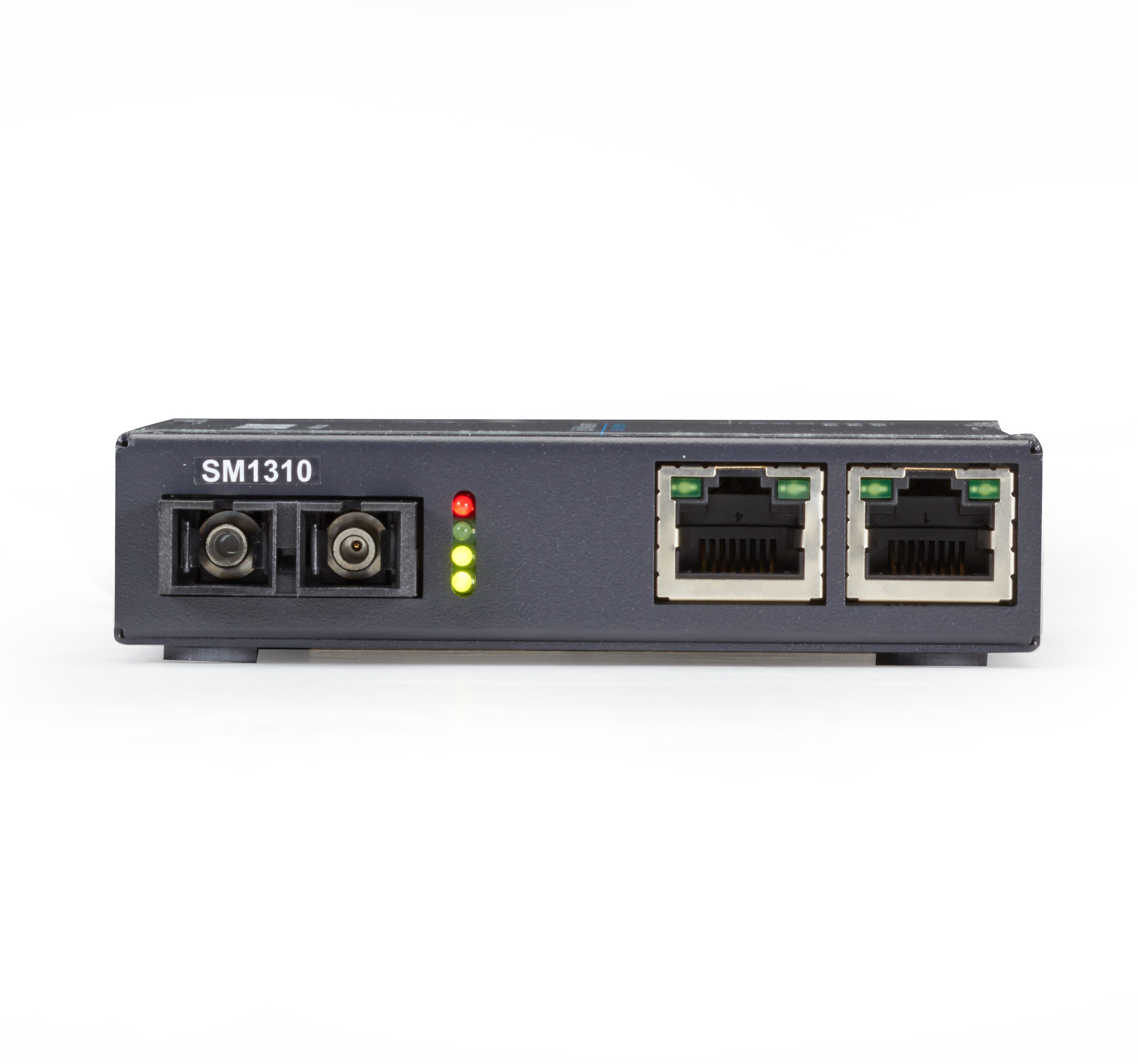

The media converter features two autosensing 10/100/1000 UTP ports plus one single-mode fiber port that can extend a network connection up to 15 kilometers (9.3 mi.). Both UTP ports support 802.3at Power over Ethernet, enabling it to power a PoE+ PD device; the other is a straightforward Ethernet port, which can be used for network expansion.
The Gigabit PoE+ Media Converter can be powered three ways: from an AC power supply (LGC5210-PS, included), via the DC power jack, or via the DC terminal block. When used with DC power to the terminal block, the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C).

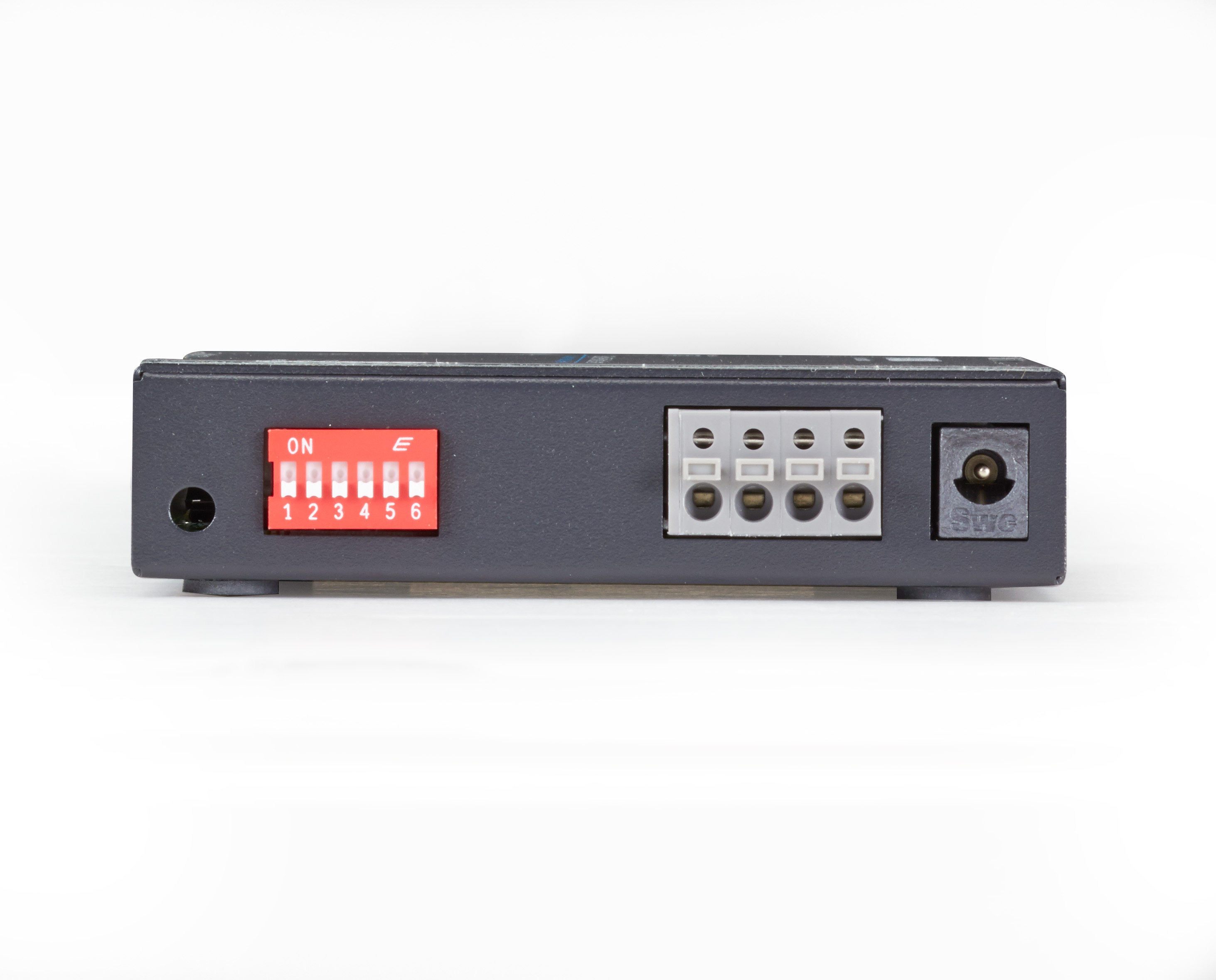

The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter, enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
This product works with:
- Media Converter (LGC5212A)
Questions? Contact our FREE Tech Support.
This product is covered by one or more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
