#LIE1082A

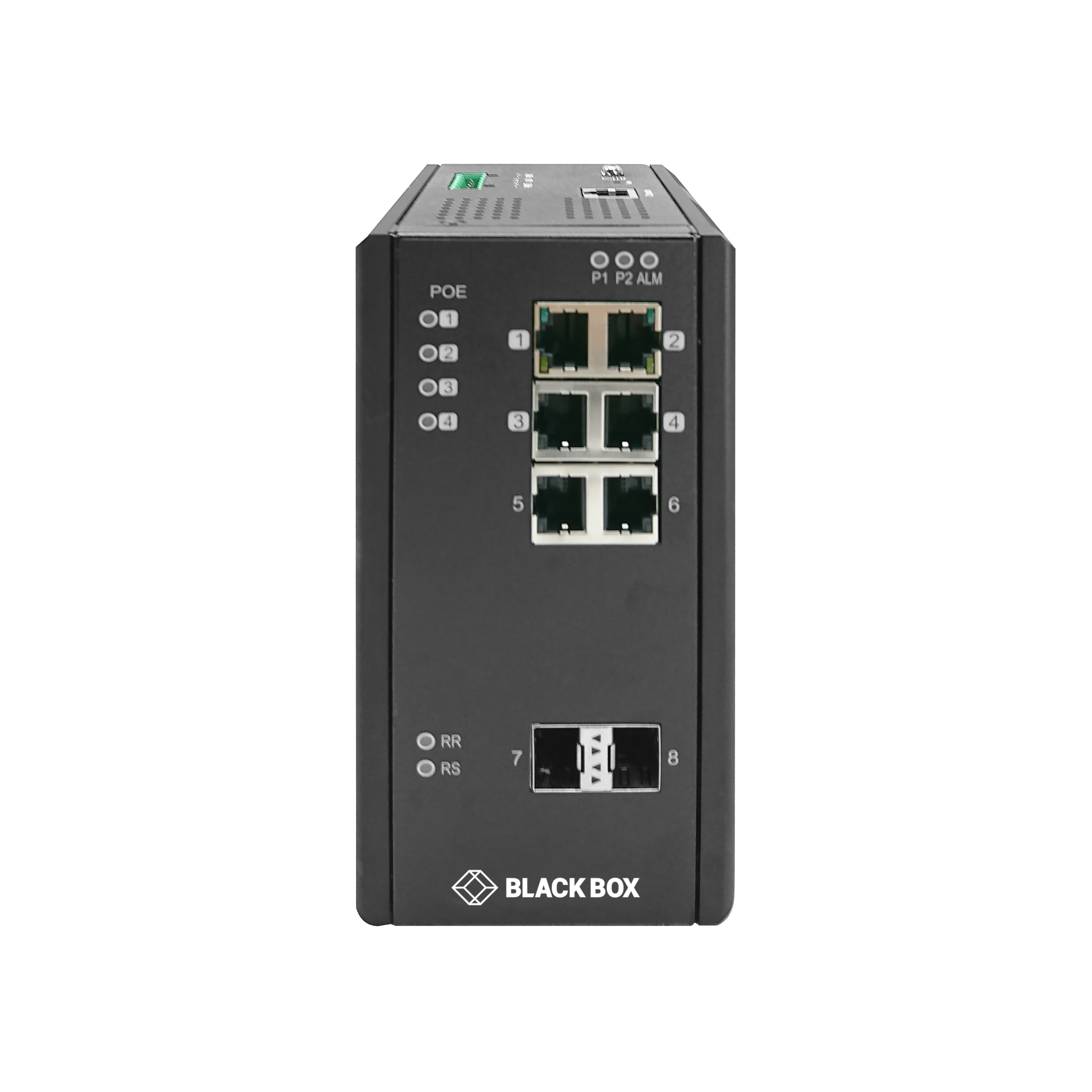

LIE1000 Series Gigabit Ethernet (1000-Mbps) Extreme Temperature Managed PoE+ Switch - (4) 10/100/1000-Mbps Copper RJ45 PoE+, (2) 10/100/1000-Mbps Copper RJ45, (2) 100/1000-Mbps SFP
Compact PoE switch with fiber uplinks designed for harsh environments and mission-critical applications.
Product Features
- Provides (4) 10/100/1000-Mbps RJ-45 Power over Ethernet ports, two 10/100/1000-Mbps copper ports and two multispeed SFP slots.
- PoE 802.3af and PoE+ 802.3at compatible.
- Rated for extreme temperatures of -40 to +75° C.
- Managed switch supports LACP, Spanning Tree, and ring fail-over.
- Dual DC power inputs for redundancy.
- IP30-rated housing is also rated for shock and vibration protection.
- Manage through a Web interface, SNMP or command-line interface (CLI).
- DIN rail or wall mount.
PoE+ for convenience.
This switch has four 10/10/1000-Mbps RJ-45 PoE/PoE+ copper ports and 2 10/100/1000-Mbps copper ports. This way you can power distant access points, security cameras, building access devices, and industrial equipment in harsh environments where it's impractical to run electrical wires. The switch features full wire-speed forwarding rates, auto-negotiates for network speeds, and Auto-MDI/MDI-X, eliminating the need for crossover cables.
The switch also has two 100/1000 Ethernet SFP slots for network flexibility and scalability. You can extend your network over multimode or singlemode fiber at distances up to 80 km, depending on the SFP you choose.
Extreme applications.
Encased in an IP30-rated metal case, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:
- Security and surveillance, particularly to backhaul IP security camera data.
- Military applications, especially in ships and other vehicles.
- Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
- Oil and gas fields or remote equipment monitoring and control.
- Building automation for controlling HVAC and lighting systems.
Maximize uptime.
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. You'll also eliminate the need to send IT technicians on-site - thus lowering costs.
The switch is fully manageable through SNMP, a Web browser, Telnet, or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.
The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP-multicast IGMP snooping, and rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security.
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. You'll also eliminate the need to send IT technicians on-site - thus lowering costs.
Fast failovers.
For redundancy, the switch has two DC power inputs. If one power source fails, the switch automatically falls over to the second power source. It offers a 20 millisecond or less failover. In addition, an alarm will alert you in case of a power failure. The switch also gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol.
Installation options.
The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-12, MDR-40-24, MDR-40-48, and SDR-120-48) are sold separately and will determine the amount of watts available for PoE operation.
This product is covered by one or more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
Product works with:
- Power supplies (MDR-40-12, MDR-40-24, MDR-40-48, SDR-240-48)
- SFPs (LFP411, LFP412, LFP413, LFP414, LFP416; LFP418; LFP420; LFP421)
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
