#LIE1014A
LIE1000 Series Gigabit Ethernet (1000-Mbps) Extreme Temperature Managed PoE+ Switch - (8) 10/100/1000-Mbps Copper RJ45, (4) 100/1000-Mbps SFP
Economical industrial switch with PoE+ ports and flexible SFP fiber uplinks.
Product Features
- Provides eight 10/100/1000-Mbps PoE+ RJ-45 ports and four multispeed SFP slots
- PoE 802.3af and PoE+ 802.3at compatible
- Offers link loss recovery of <20-msec.
- SFP ports enable Gigabit fiber uplinks over long distances
- Rated for extreme temperatures of -40 to +75° C
- Dual DC power inputs for redundancy
- IP30-rated for shock and vibration protection
- Manage through a Web interface, SNMP, or command-line interface
- Bandwidth rate control, traffic prioritization, and quality of service
PoE+ and SFP ports for flexibility.
This switch has eight 10/10/1000-Mbps PoE/PoE+ copper ports and four SFP ports for uplinks. This way you can power distant access points, security cameras, and other industrial equipment over the copper Ethernet lines at the far edges of your network where it's impractical to run electrical wires. The SFP fiber uplinks give you almost unlimited fiber distance options, depending on the SFP.
Maximize uptime.
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. And you'll eliminate the need to send IT technicians on site-thus lowering costs.
The switch is fully manageable through SNMP, a Web browser, Telnet, or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.
The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP-multicast IGMP snooping, and rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security.
Fast failovers.
The switch gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol. It offers a 20 millisecond or less failover.
Extreme applications.
Encased in an IP30-rated metal case, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:
- Security and surveillance, particularly to backhaul IP security camera data.
- Military applications, especially in ships and other vehicles.
- Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
- Oil and gas fields or remote equipment monitoring and control.
- Building automation for controlling HVAC and lighting systems.
Installation options.
The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-48 and SDR-240-48) are sold separately.
This product is covered by one or more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.

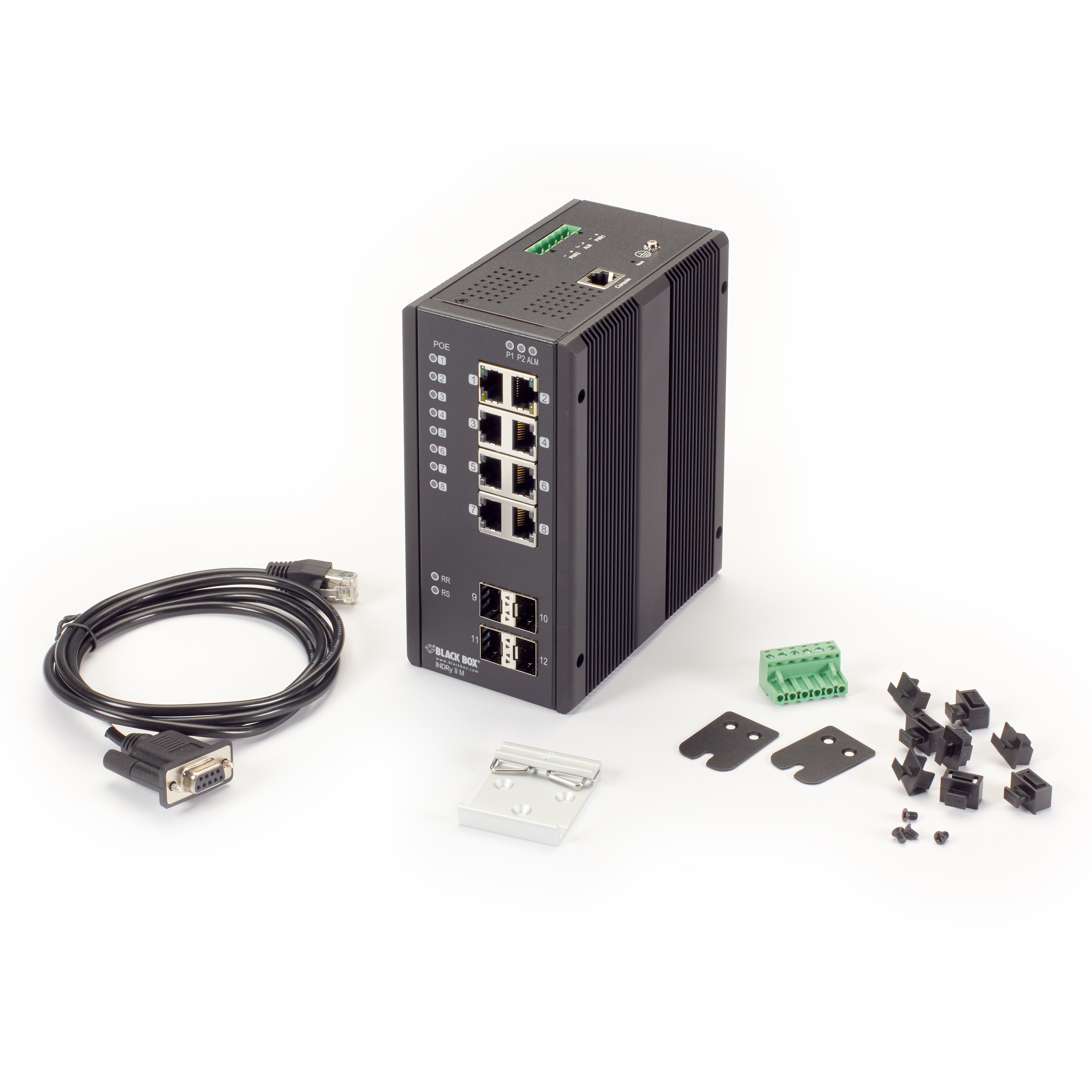

- (1) Hardened Managed Ethernet Switch
- (4) M3 Screws
- (2) Panel Mount Brackets
- (1) DIN Rail Clip
- (1) 6 position Phoenix Connector
- (4) RJ45 Ethernet-Port Dust Covers
- (4) SFP Ethernet-Port Dust Covers
NOTE(s):
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
