#LPH008A-R2

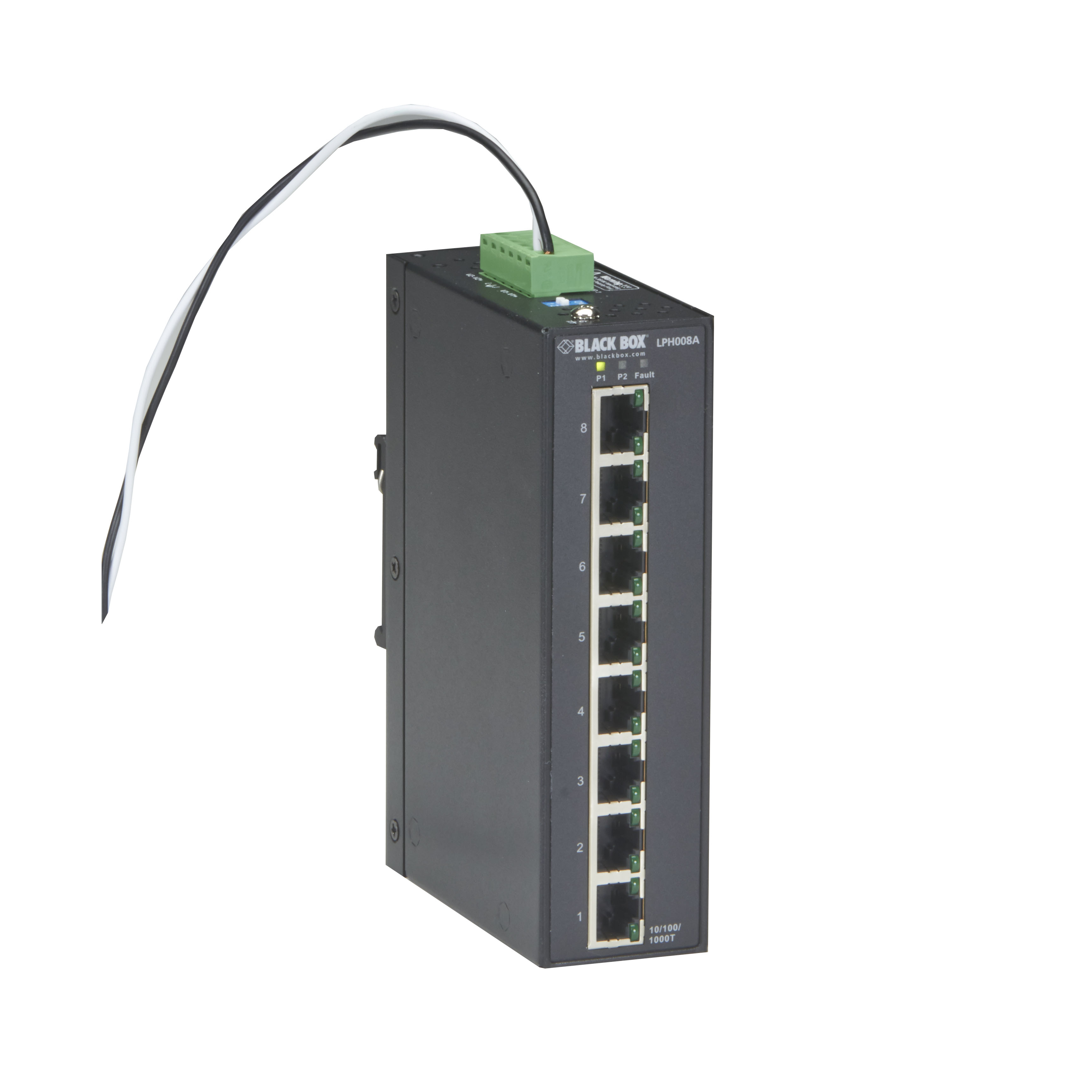

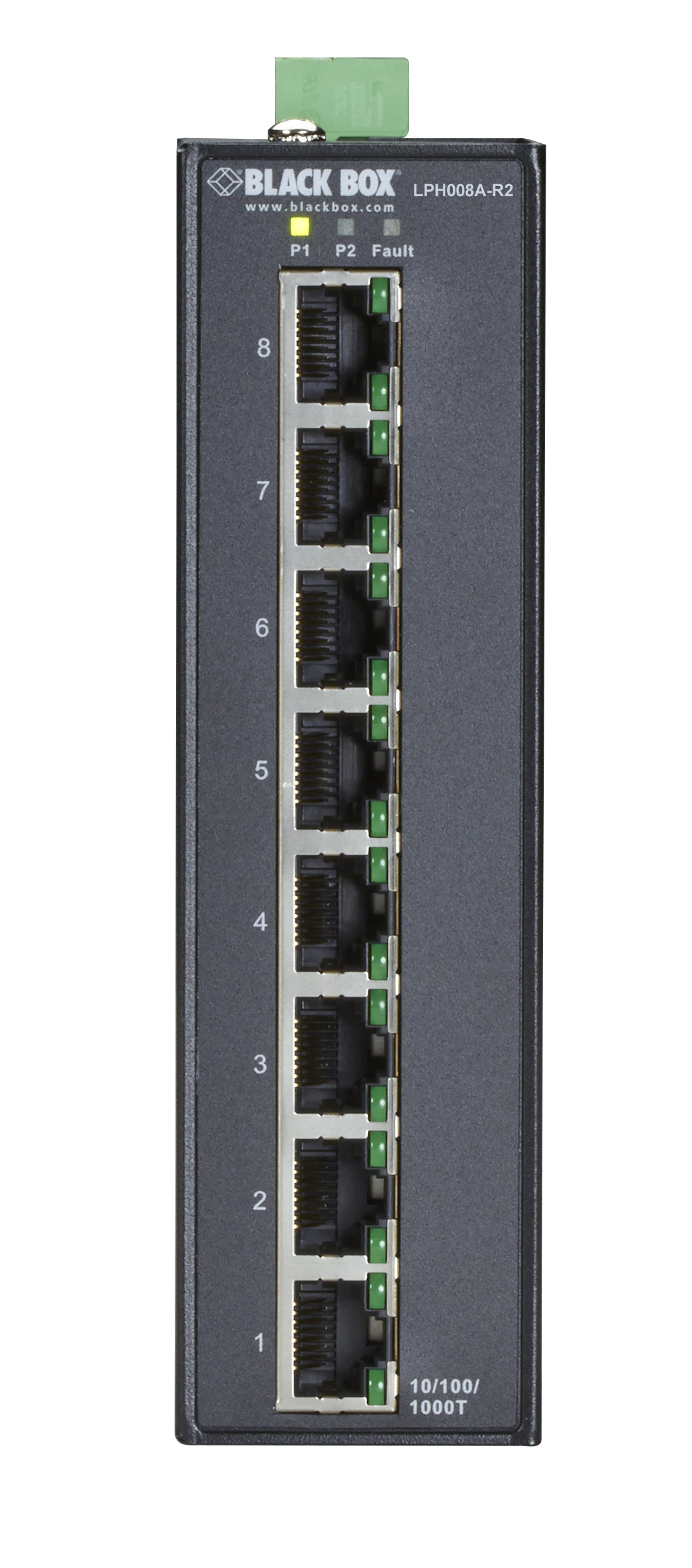

LPH00 Series Gigabit Ethernet (1000-Mbps) Extreme Temperature PoE+ Switch - 10/100/1000-Mbps Copper RJ45 PoE+
Deliver PoE+ power to eight remote PDs, such as cameras, access points, phones, monitoring devices, and more.
Product Features
- Provides eight PoE+ PSE 10/100/1000-Mbps RJ-45 ports.
- Power over Ethernet 802.3at compliant. Provides up to 30 watts per port with a total power budget of 60 Watts at 12-24 VDC and 120 Watts at 24-57 VDC.
- Eliminates worries about powering distant equipment where no power is available.
- Rated for extreme temperatures of -40 to +75° C. IP30 enclosure for use in harsh INDOOR OR OUTDOOR environments.
- Dual 12-57-VDC DC power inputs for redundant power. Generates 50 VDC PSE power output per port.
Two different power inputs at the terminal block prevent the power interruptions. When the primary DC power input fails, the backup power input takes over to guarantee non-stop operation.
- (1) Industrial Unmanaged Gigabit PoE+ Switch
- (1) 6-pin Terminal Block
- (8) Dust Covers for RJ-45 Ports
- (3) M3 Round Screws
- (2) Wallmount Brackets
- (1) 40-mm DIN Rail Bracket
- (1) Quick Start Guide
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
