#LPR1111

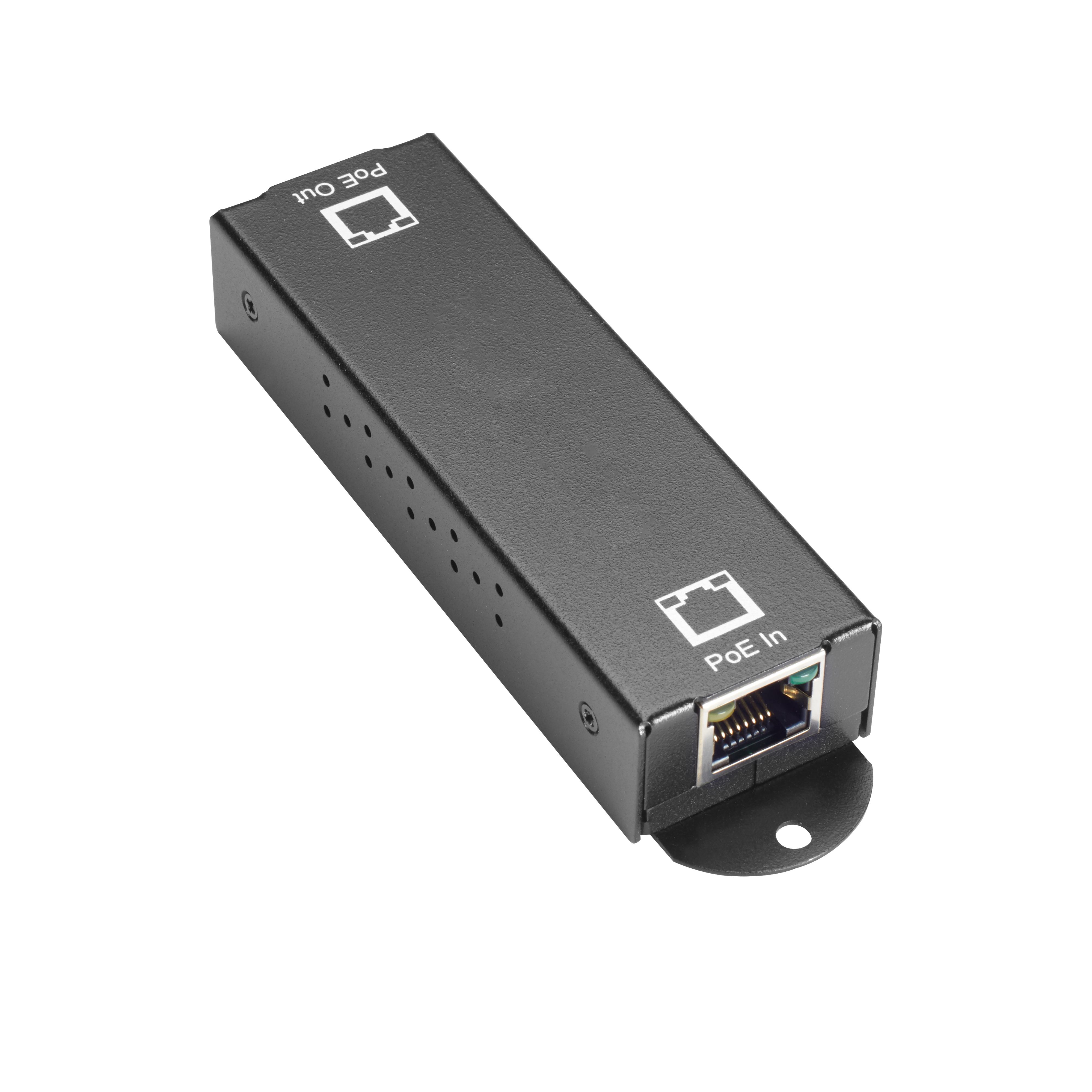

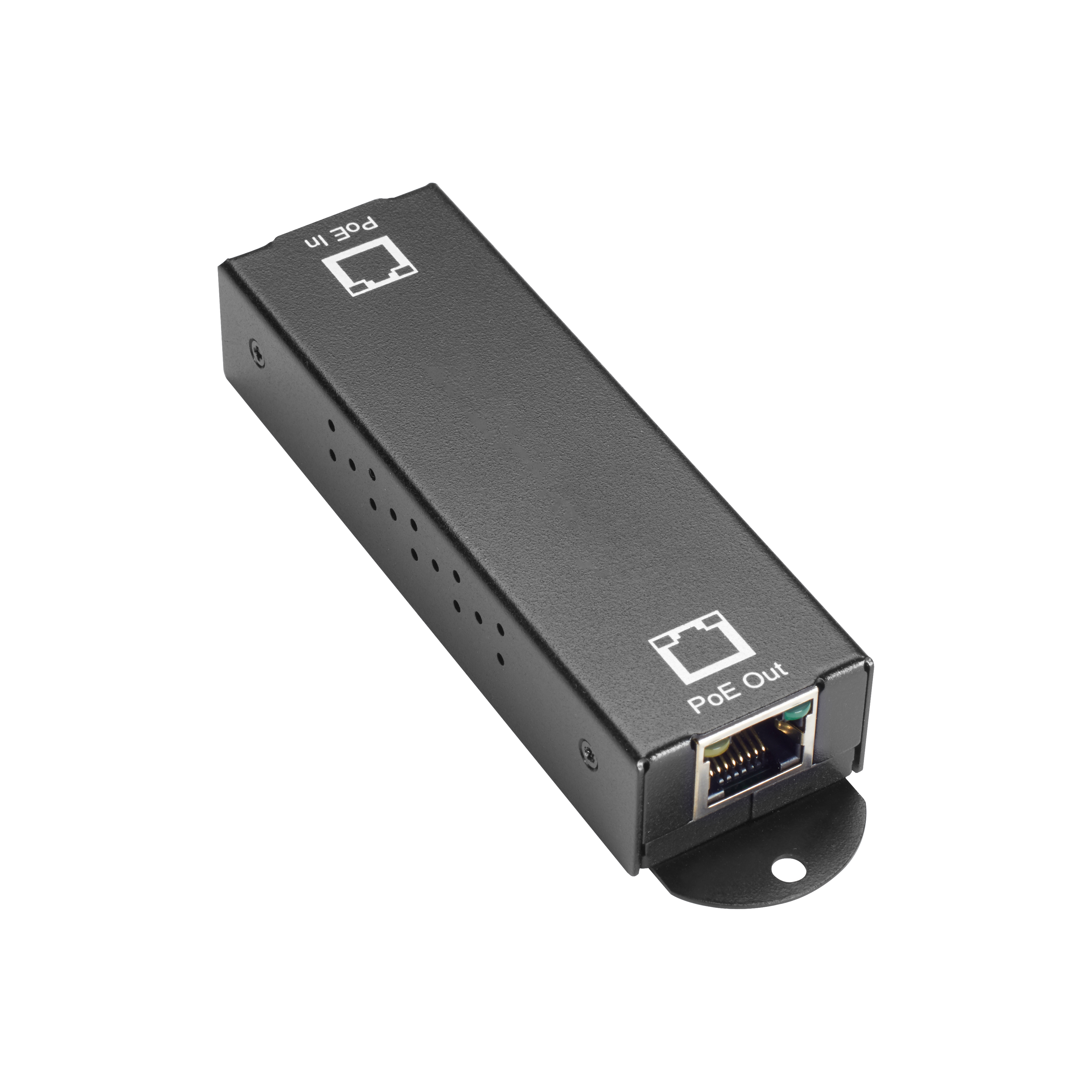

LPR1100 Series 10/100/1000BASE-T PoE+ Ethernet Repeater - 802.3at, 1-Port
Extend Gigabit data and PoE up to 600 meters.
Product Features
- Extends both Gigabit Ethernet and PoE up to 600 meters, which is far beyond the typical 100-meter limit
- Plug-and-play capability, with autosensing and auto-negotiating 10-/100-/1000-Mbps Ethernet ports
- Delivers IEEE 802.3af standard power, excellent for VoIP phone systems, remote access points, and IP cameras
- Auto MDI/MDI-X means no need for a crossover cable
- Works with 802.3af POE or 802.3at POE+
This PoE Repeater acts as a PoE extender, enabling you to extend PoE connections beyond the 100-meter Ethernet CATx limit to access faraway PoE devices such as Wifi access points and IP cameras.
The repeater passes along both data and power, so it needs no separate power supply; use one repeater for an additional 100 meters (328 ft.) reach or daisy-chain several repeaters for further reach. Up to 5 repeaters can be used in a link for ranges up to 600 meters.
Each PoE extender provides one (1) 10-/100-/1000-Mbps PD input port, and one (1) 10-/100-/1000-Mbps PSE output port.
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,155,012; 8,902,760; 8,942,107; 9,019,838 and/or 9,049,019.
PoE Power Available with Multiple LPR1111's PoE Source
| PoE Source | Number of LPR1111 | Distance (m) | PD Current (A) | PD voltage (V) | PD Max power (W) |
| 802.3at PoE switch | 1 | 200 | 0.58 | 42.4 | 24.592 |
| 2 | 300 | 0.53 | 38 | 17.9 | |
| 3 | 400 | 0.48 | 33.7 | 16.176 | |
| 4 | 500 | 0.4 | 31.4 | 12.56 | |
| 5 | 600 | 0.28 | 30.8 | 8.624 |
* All the values listed here are the MAX.value from tests based on a PoE switch with 56Voutput performed in an ideal lab environment. The actual value may be different due to network environments and the quality of your cable.
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,155,012; 8,902,760; 8,942,107; 9,019,838 and/or 9,049,019.
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
