#LPS2001

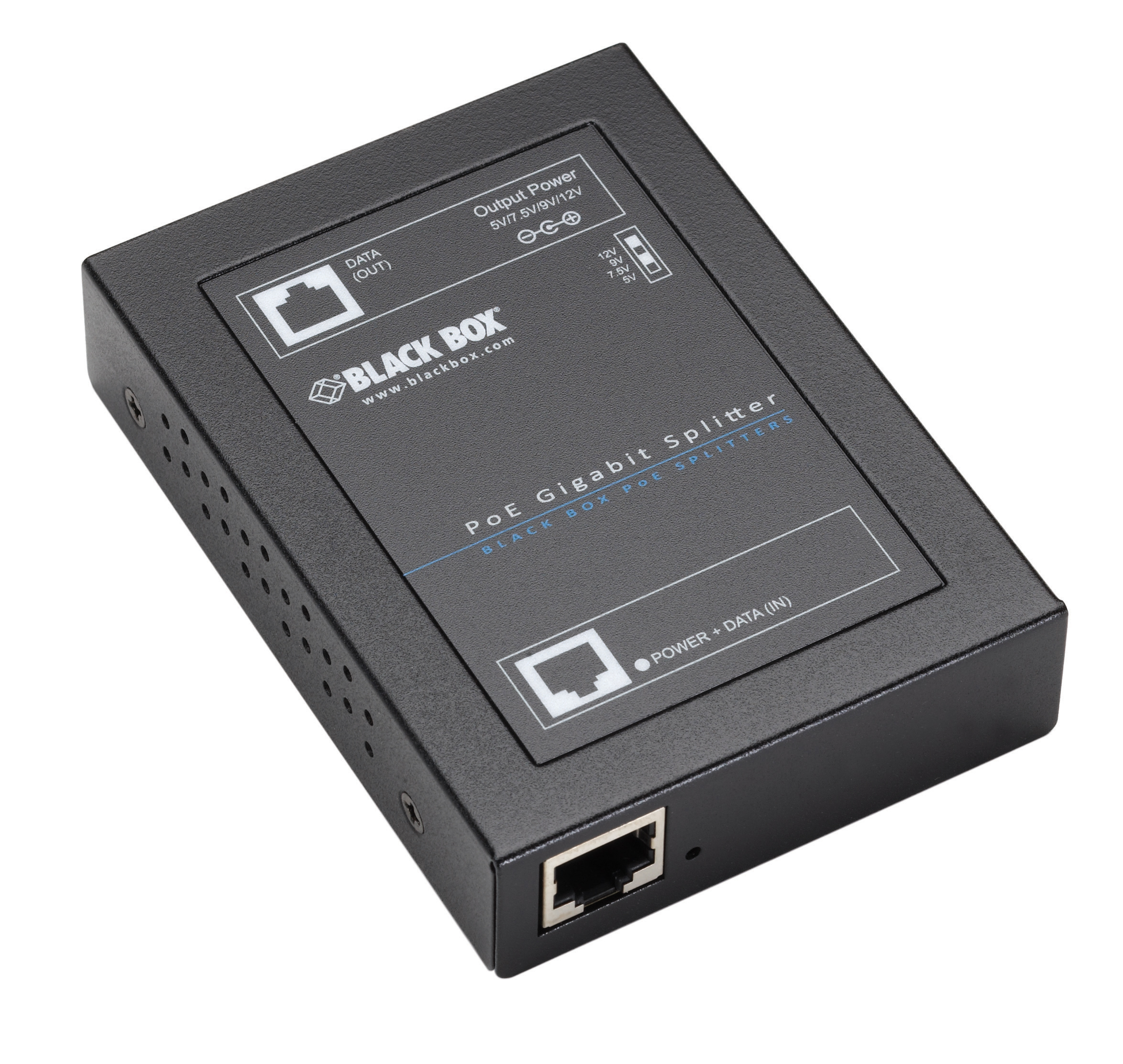

PoE+ Gigabit Splitter - 5-12-VDC, 6-Amp
Deliver 5-12VDC to IP cameras and access points.
Product Features
- Splits a PoE or PoE+ signal into separate power and data sources.
- Enables you to use PoE or PoE+ to power non-PoE devices.
- Provides up to 12-VDC 1.7-amp power to a non-PoE device.
- Supports Gigabit Ethernet as well as 802.3af PoE and 802.3at PoE+.
- Provides up to 12-VDC 1.7-amp power to a non-PoE device.
- Features auto sensing, auto negotiating 10-/100-/1000-Mbps ports.
- Auto-MDI/MDI-X on both Ethernet ports.
The splitter saves on installation and equipment costs by enabling you to install non-PoE devices in areas without a nearby power outlet and to bring legacy devices into a PoE network.

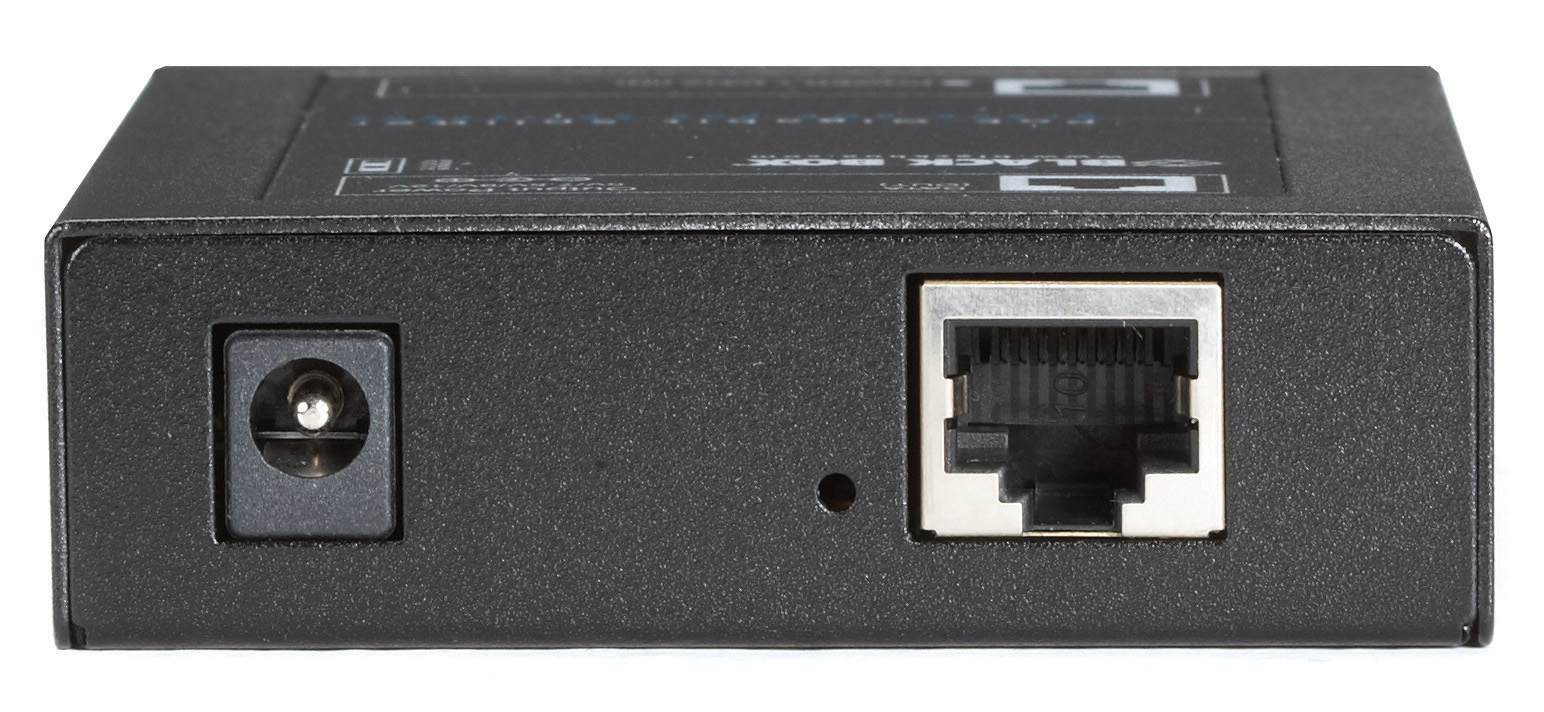

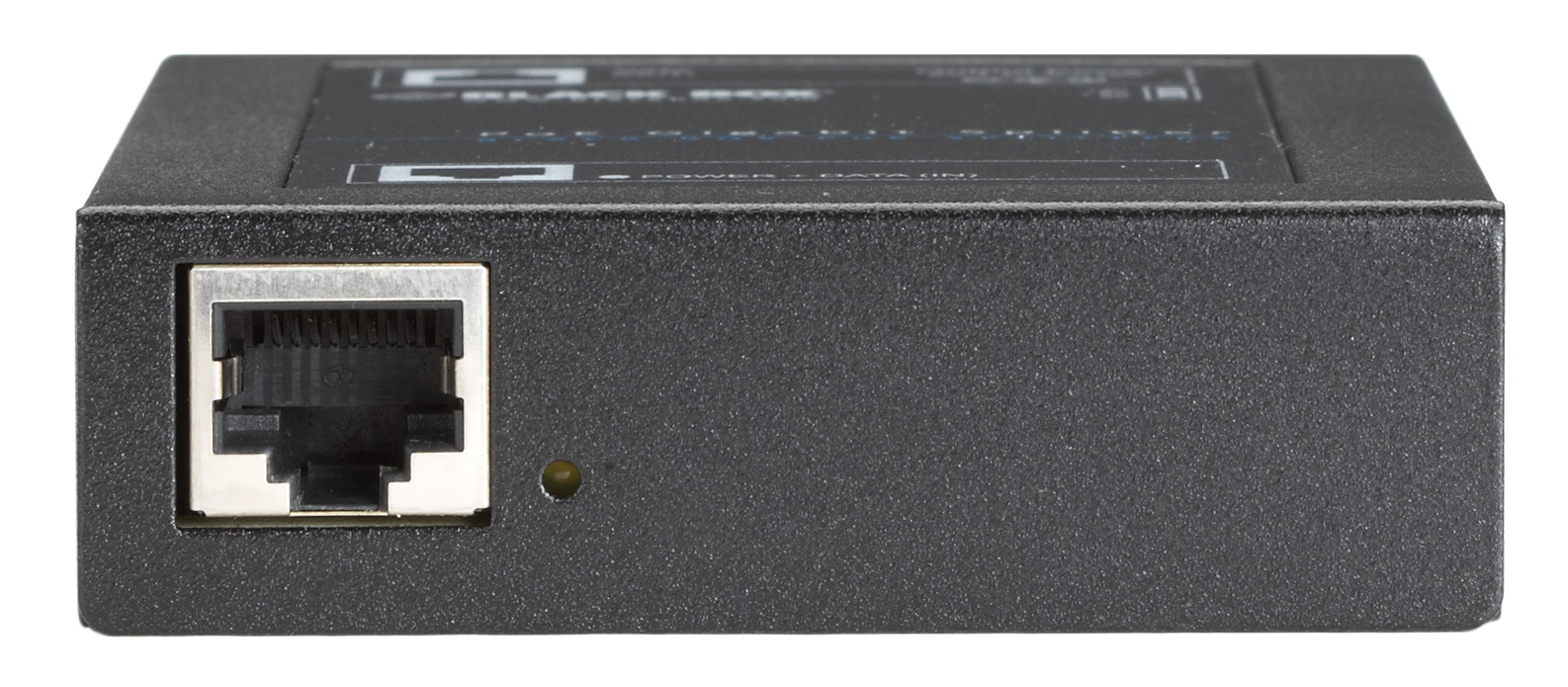

PoE+ Splitter gigabit. One port 10/100/1000Mbps RJ45 PoE+ PD input plus one port 10/100/1000Mbps RJ45 output and DC output jack, 5-12VDC. Typical applications include powering remote IP security cameras or access points. Splits a PoE or PoE+ signal into separate power and data sources. DIP switch selects output voltage. Delivers up to 1.7A putput at 12VDC with PoE+ input.
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,155,012; 8,902,760; 8,942,107; and/or 9,049,019.
