#PP-ST-625MM-6PAK

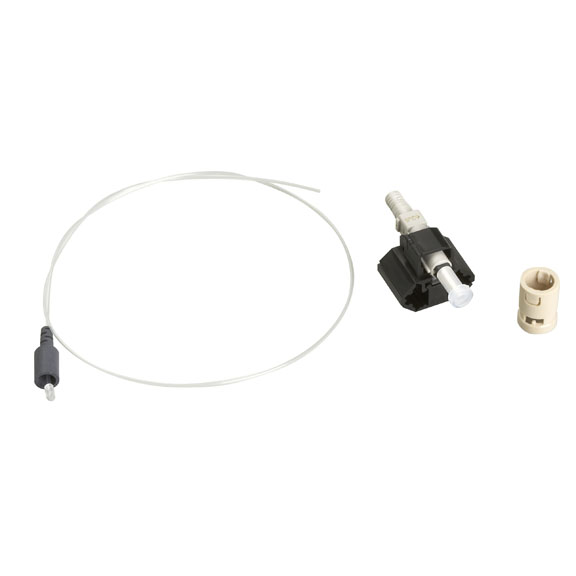

Pre-Polished Fiber Optic Connector - OM1, Multimode
Terminate fiber in a minute-no more hand polishing in the field.
Product Features
- Pre-polished ferrules for fast connections in the field.
- Easy assembly with no need for epoxy.
- Fiber can be reseated.
- Factory polishing eliminates loss concerns.
- Meets TIA/EIA 568A performance requirements and TIA/EIA 604 (focis) connector interface specifications.
Proven mechanical splice technology ensures precise fiber alignment. A factory pre-cleaved, factory-polished ferrule couples to the fiber being terminated with precise mechanical alignment. A proprietary index-matching gel ensures a low loss termination to 62.5-micron multimode optical fibers. There are no expensive tools, no messy epoxy needed.
A factory-installed wedge clip holds the clamping device open while the fiber is inserted. This clip also enables the use of a Visible Fault Identifier (VFI) to provide a "pass/fail" signal once physical contact is achieved. The connector is compatible with 250-µm and 900-µm optical fibers.
This connector is also available in SC and LC versions and for 62.5-micron multimode and single-mode fiber, as well as for OM3 laser-optimized multimode fiber. Connectors for each fiber type are color coded to industry standard requirements to help with identification during and after installation.
This connector is sold in a package of six. This connector requires the use of a fiber tool kit. For information, contact our FREE Tech Support.
