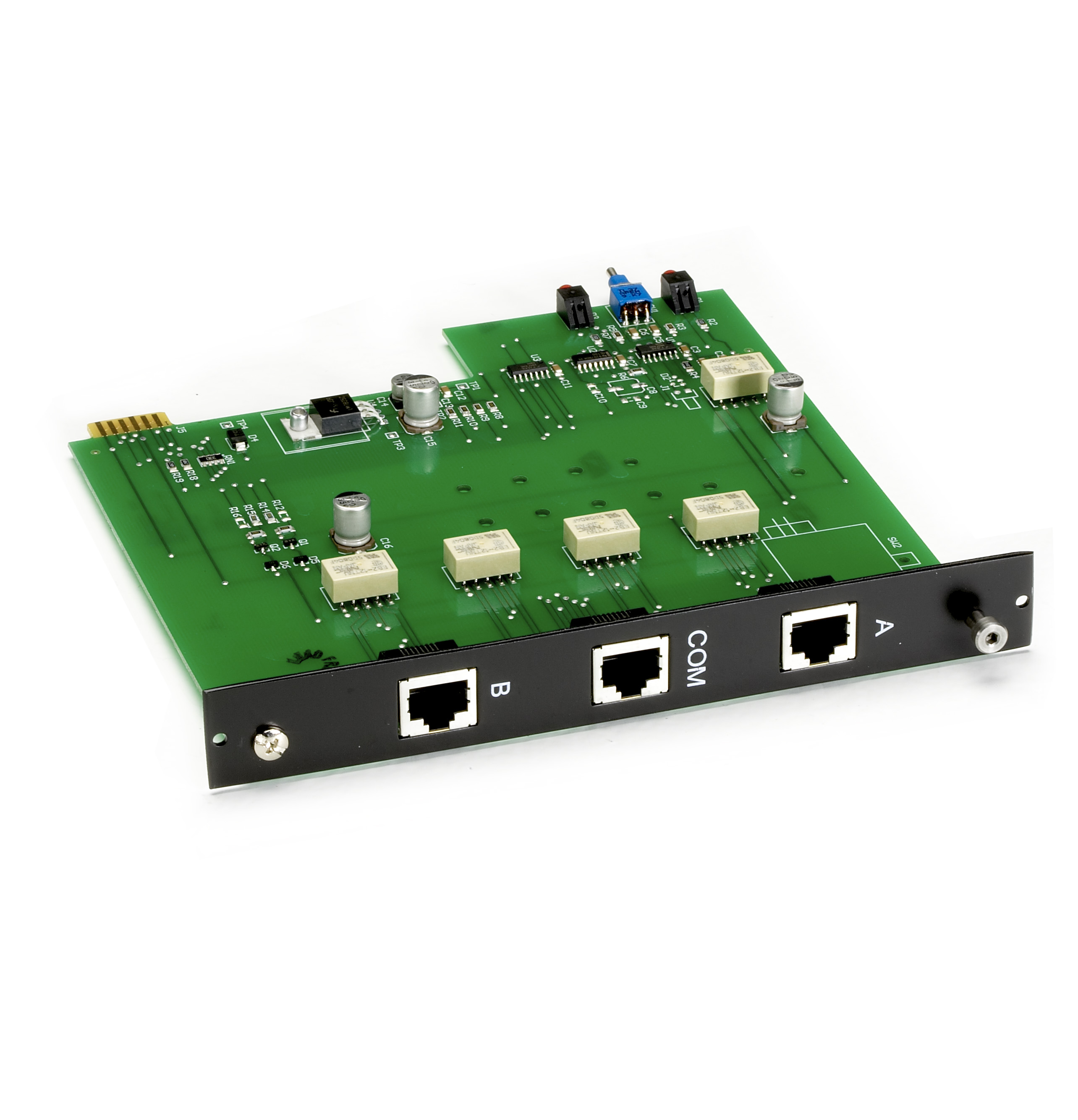

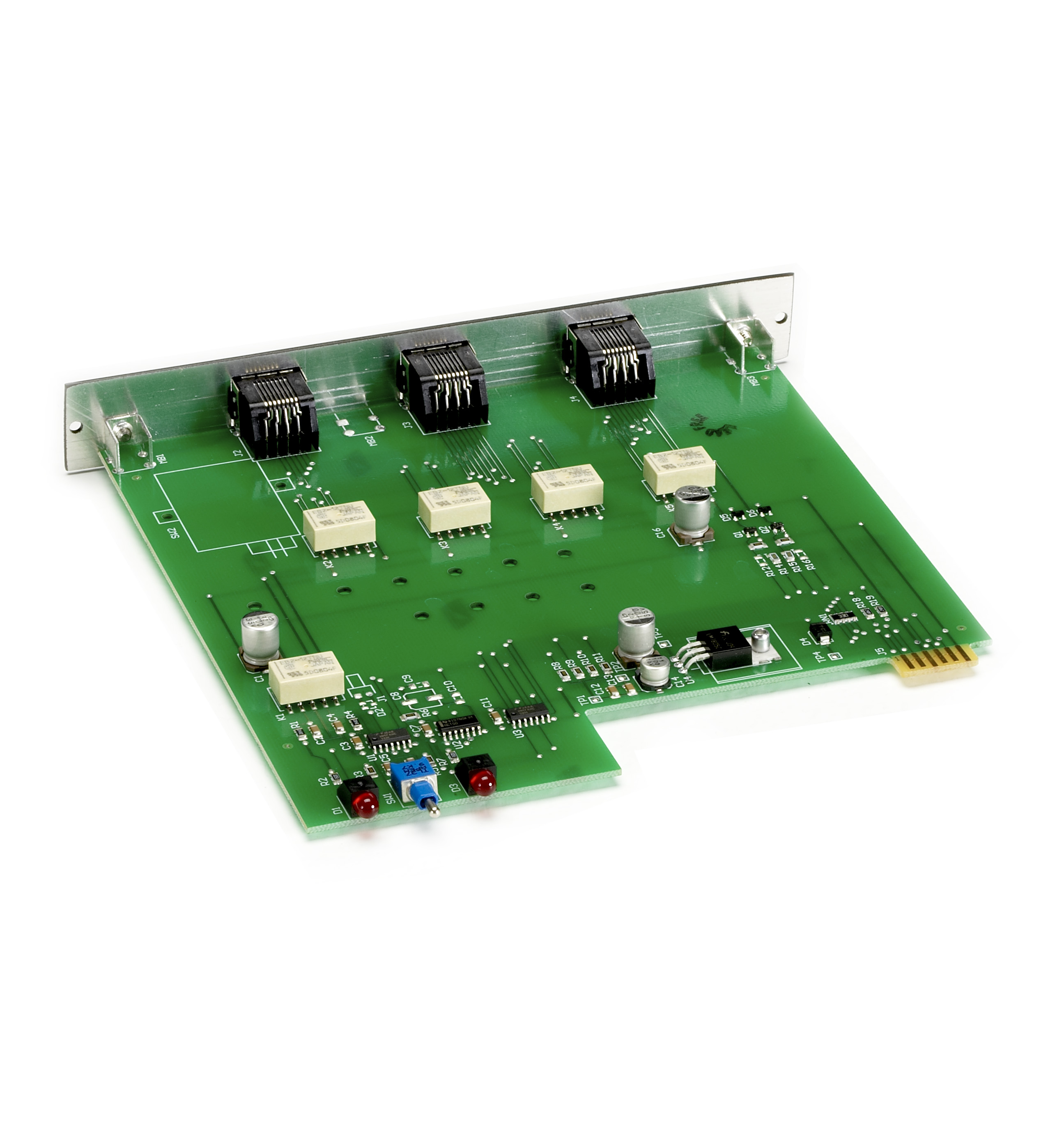

Pro Switching Gang Switch - 4U, RJ45 CAT5e A/B Card Latching

Switch between two RJ45 CAT5e connections at speeds up to 1 GbE.

Price:

N/A

Quantity:

Add to Cart

Product Features

Speeds up to 1 GbE
A Latching switch card will keep its current position if power is lost
Supports 8 pin RJ45
no jumpers or switch settings that need to be configured on the A/B Switch Cards
Occupies one slot

The RJ45 CAT5e A/B switch latching card allows for the switching between two Ethernet connections with speeds up to 1 GbE, if power is lost the connection will default to the A location.

Controller Cards take up only one slot, and external power connects to the controller card, One slot is reserved for future use, leaving you with 16 slots for A/B Switch Cards. All switch cards take up one slot except for the power A/B cards which take up two slots. Manage access to networks, implement backup systems for network and computer connections, or share peripherals and other equipment.

Local features include LED status and manual switching. Remote control (dry contact closure, RS232, and Ethernet) provides unmatched management flexibility.

Gang Switch systems are used around the world to add secure access control and reliable backup for critical systems from space launch centers to stock exchange networks.

First, order the chassis

Gang Switch, 4U, 18-Card (SM960A)

Next order at least one power supply (order two for redundancy)

External Power Supply 100- 240 VAC (SM961-PS)
Internal Power Supply -48 VDC (SM760-PS1)
Internal Power Supply Dual -48VDC (SM760-PS2)

Then select a Controller Card

Ethernet (SNMP) (SM962A)
Logic Only (SM964A)

Next, choose your A/B Switch Cards

Serial DBxx: DB25 A/B Non-Latching (SM965A)
DB9 A/B Non-Latching (SM966A)
DB15 A/B Non-Latching (SM967A)
Power: 240 VAC 1 in 2 out (SM971)
120 VAC 2 in 1 out (SM973)
Video: 75-ohm F-Connector (SM976A)
Multimode: SC Latching (SM977A-SC)
ST Latching (SM977A-ST)
RJ45 Copper: CAT5e Latching (SM978A)
CAT6 Latching (SM979A)

This product works with Power Supply (SM961-PS) A/B Switch Cards (SM965A, etc.)
