#LHC210A
Pure Networking Fast Ethernet (100-Mbps) Media Converter - 10/100-Mbps Copper to 100-Mbps Fiber SFP
Extend a copper-based, high-speed network via fiber cable to a maximum distance of 60 km through the use of an SFP.
Product Features
- Compliant to EN62368
- Convert copper-based network via fiber up to a maximum distance of 60 km through the use of SFP's
- Fully compliant with IEEE802.3, IEEE802.3U, 10/100BASE-TX, 100BASE-FX
- Use as a standalone unit or with the available chassis (LHGC-RACK).
- Know operation status through LEDs on front panel
- One RJ45 port and one SFP slot
- Flow Control: IEEE802.3x flow control for full duplex mode.
- Link fault pass-through functionality
Extend copper via fiber
Get your copper-based network where it needs to go. This media converter lets you extend your copper-based network via fiber to a maximum distance of 60 km through the use of an SFP, providing your deployment with the connectivity it needs.
Support multiple standards
Meets whatever standard you need it to. It's fully compliant with IEEE802.3, IEEE802.3U, 10/100BASE-TX and 100BASE-FX.
Straightforward installation
The media converter can be installed into a standard converter chassis. The installation is quick and easy.
Status updates

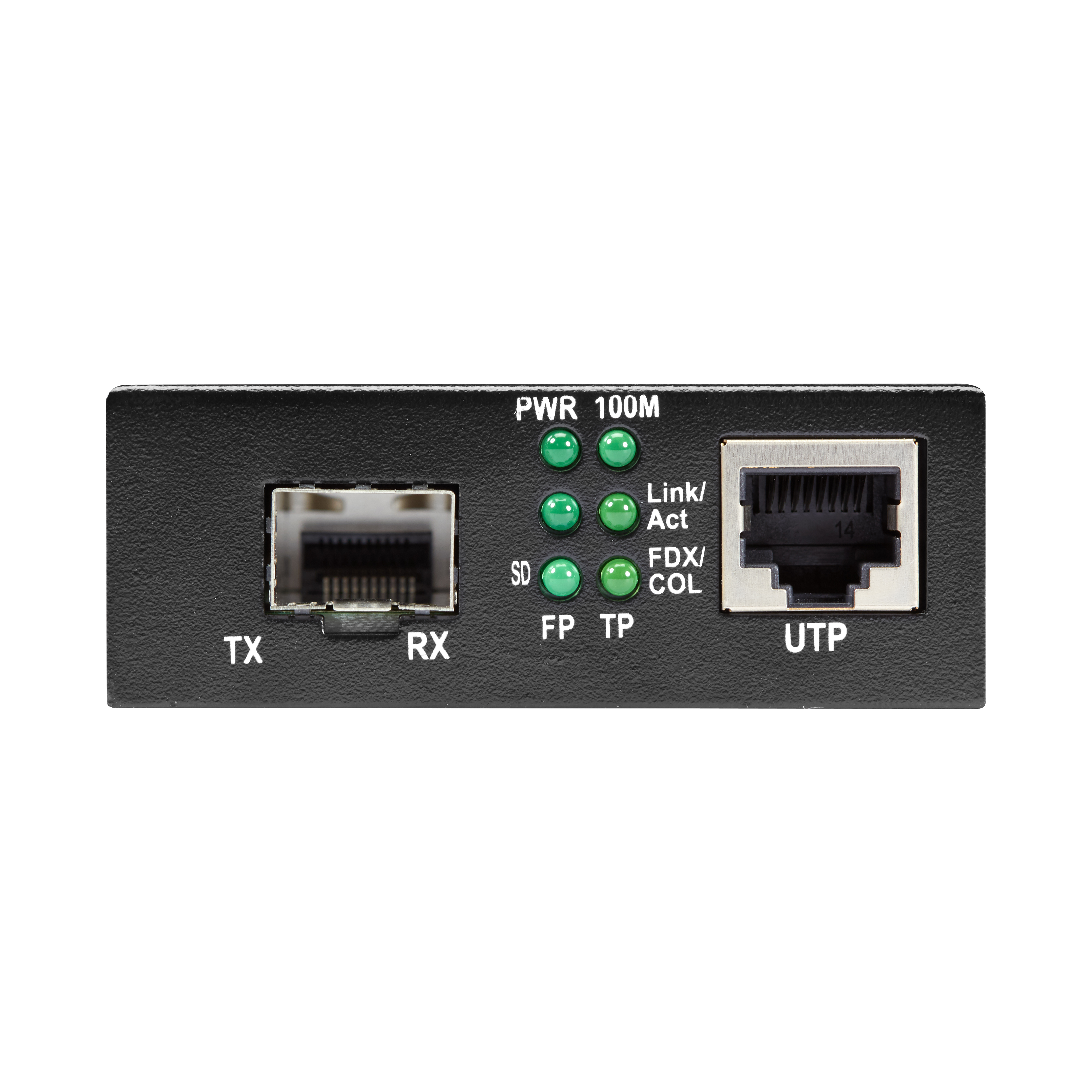

Know how your media converter is performing. Operation status can be locally monitored through a set of diagnostic LEDs located on the front panel.
Know link media issues immediately
Features helpful Link Fault Pass-Through (LFP) functionality. LFP immediately alarms administrators to the problem with the link media and provides an efficient solution to monitor the net.

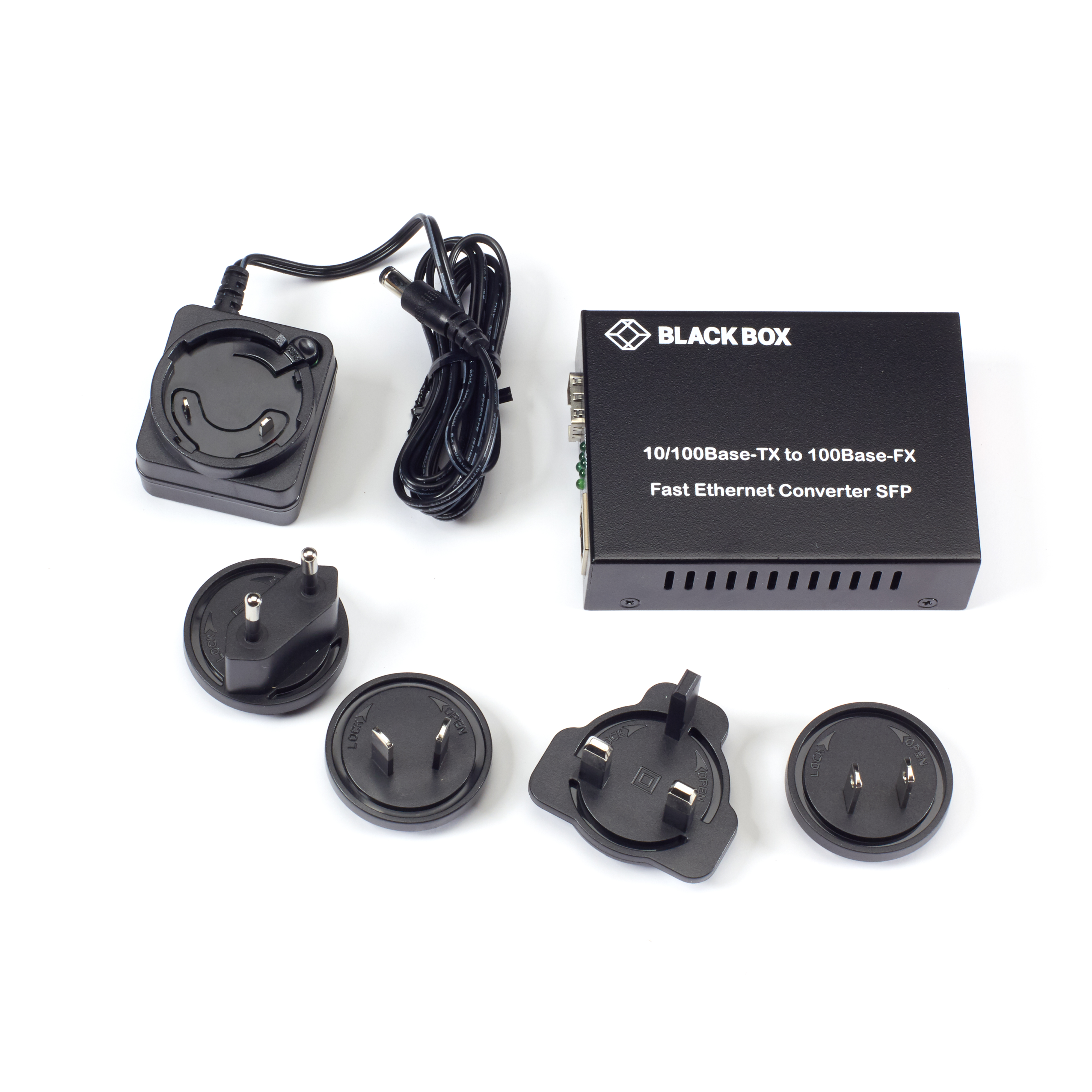

- (1) 10/100BASE-TX to 100BASE-FX Media Converter with One SFP Slot
- (1) 5-VDC Power Adapter
NOTE(s):
Can be used as a standalone unit or with the available chassis (LHGC-RACK).
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
