#VWP-0405A
Radian Video Wall Controller Chassis - Intel Core i5 Processor, 800W Redundant PSU, 32GB RAM, (x2) 240GB SSD Storage, 4U Rackmount, 4-Slot
High Performance Processor Chassis with 4 Slots of PCIe Card Capacity for Radian Video Wall Controller Solutions
Product Features
- For use with Radian Video Wall Controller Solutions
- Provides (x4) Slots of PCIe card capacity; expandable using VWX-1100R
- Populate with Capture, Streaming, and Graphics cards for your application
- Includes i5 Processor, 800W ATX PSU, 32GB RAM, and 480GB SSD Storage
- Upgrades available to modify Processor, PSU / RAM / SSD to meet your needs
- Windows 10 LTSC Operating System
- Wide range of input cards for any video format: component, composite, SDI, HDMI, VGA, DP, DVI, IP (H264)
- Outputs include DP, DVI, and HDMI
Radian Processor Chassis are the heart of our Video Wall Controller Solutions, and provide the basis from which the system is configured and built. They are servers with a motherboard including Windows 10 LTSC OS, processor, connectivity ports for local control screens, ethernet and USB devices, internal RAM, and SSD storage, and PCIe x8 slots for connection of Capture, Streaming, and Graphics cards.

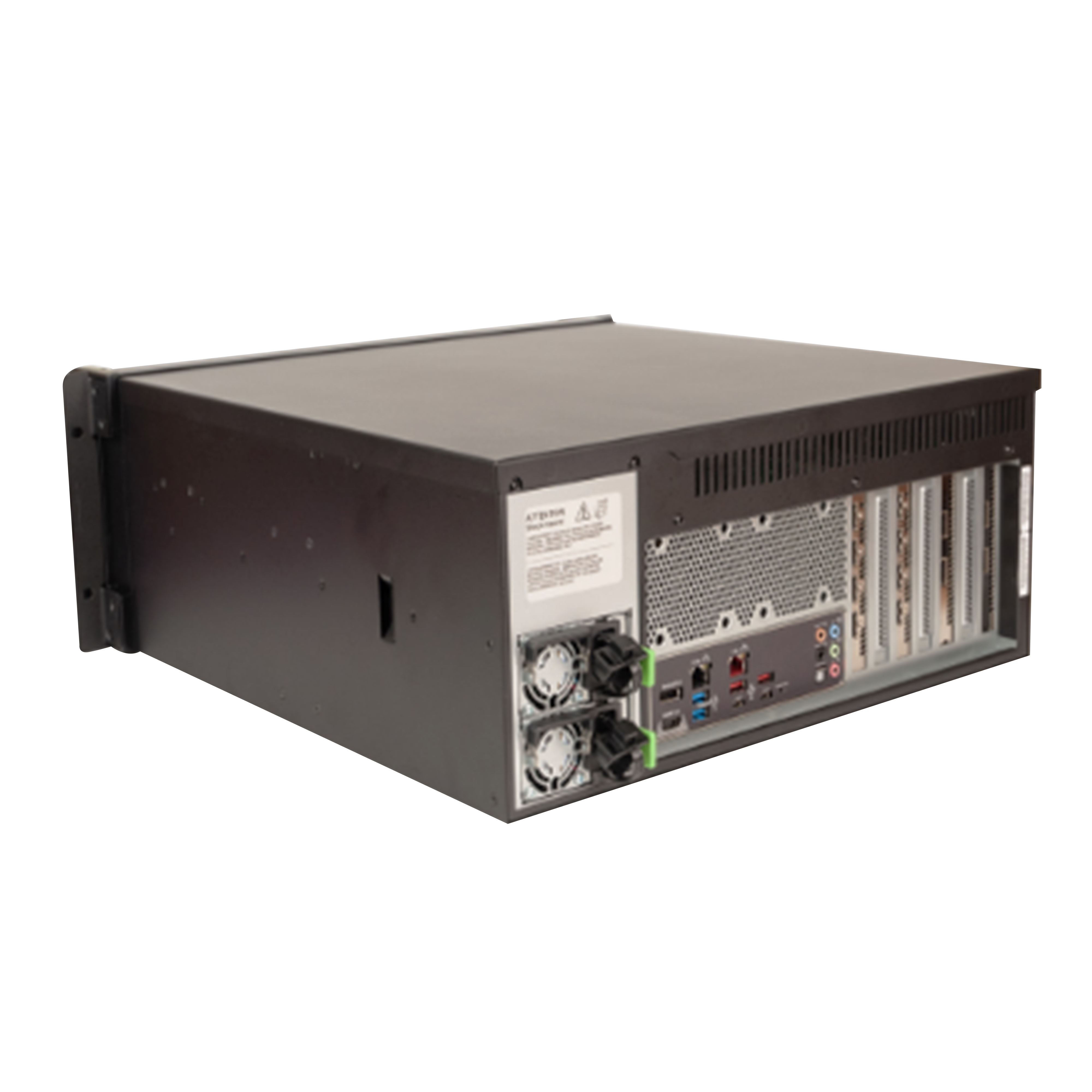

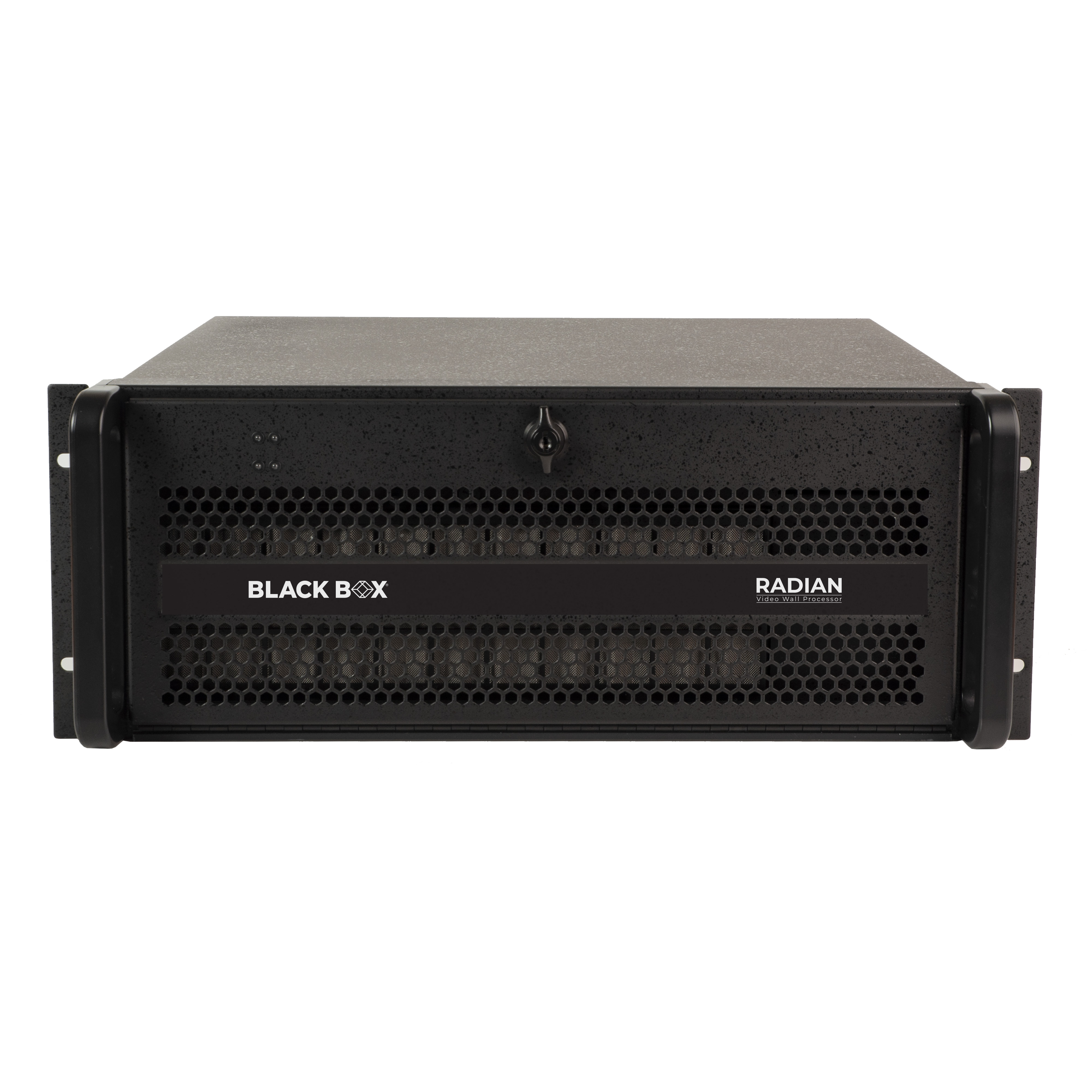

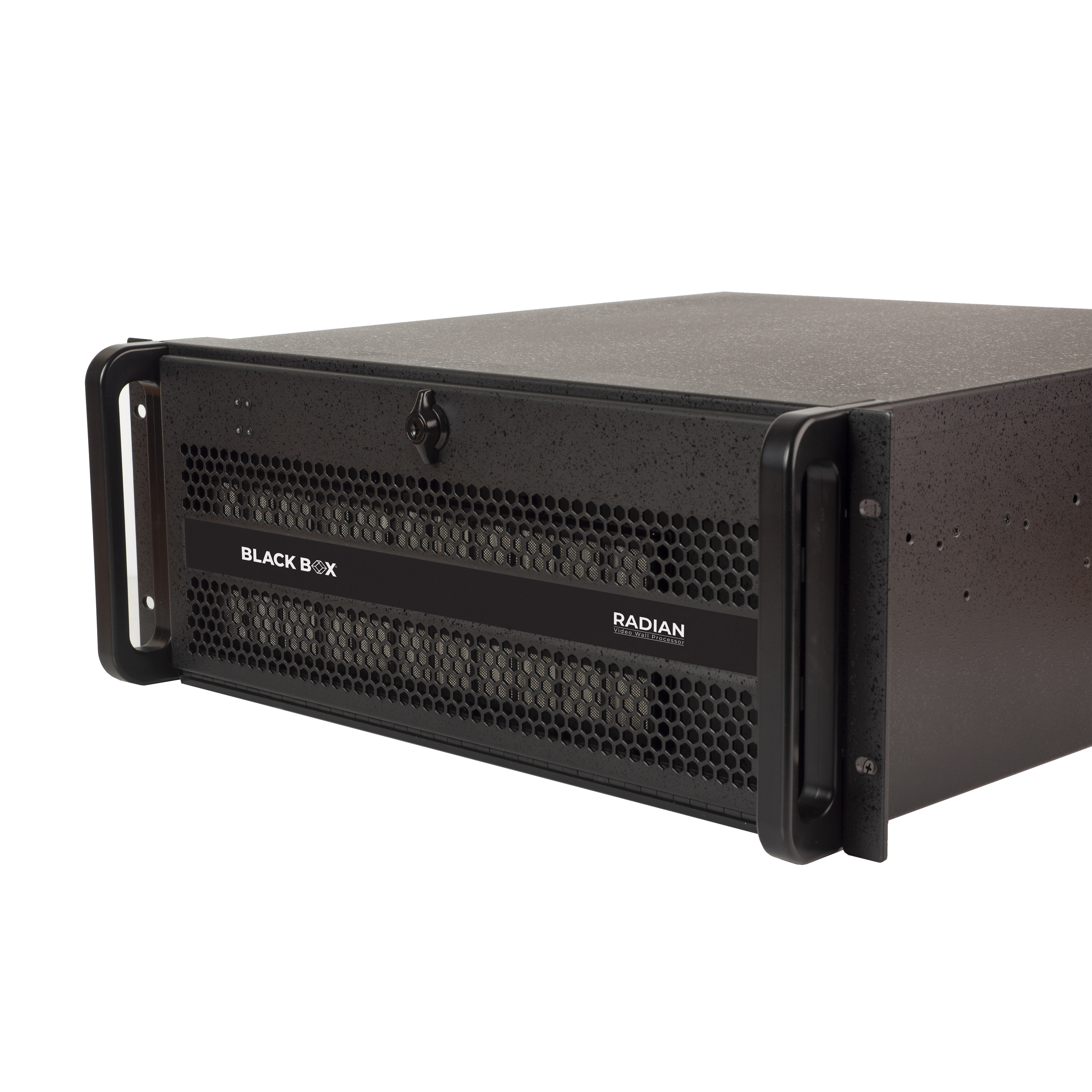

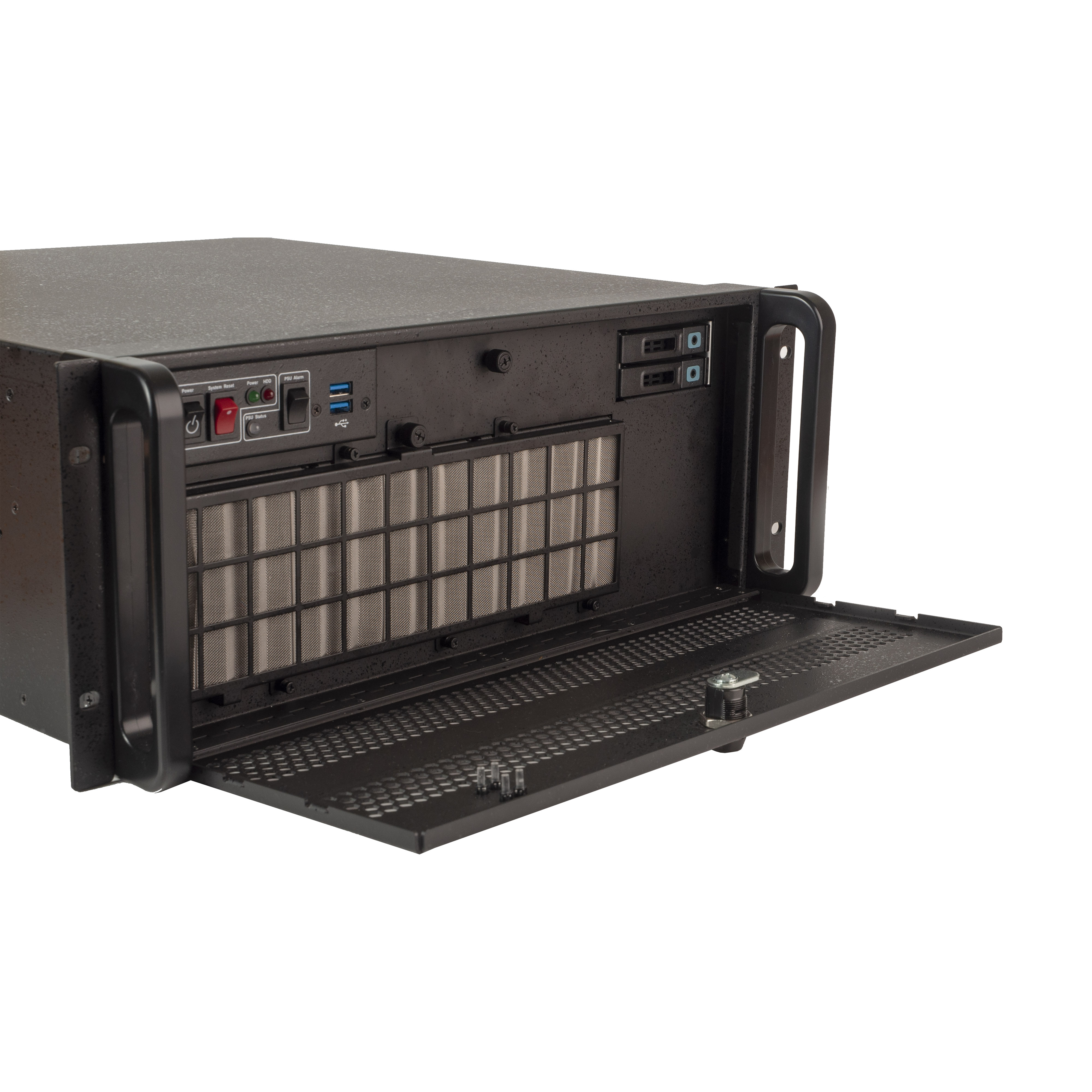

The VWP-0405A is a 4U Rackmount Chassis with (x4) Slots of PCIe card capacity, an Intel Core i5 processor, Windows® 10 LTSC Operating System, 32GB RAM, (x2) 240GB SSD Storage (RAID Configured), and an 800W ATX power supply. It includes local HDMI and DisplayPort outputs for connection of a local control screen, and a variety of USB ports for connectivity.
A highly flexible solution, it allows for customization to your needs, with upgrades available to switch from a single power supply to a RPSU, add a higher performing processor, and to increase RAM and Storage capacities. And if you need to increase card capacity along the way, expansion chassis can be added to the system to provide the amount of PCIe card slots you need. Contact Black Box Technical Support today and we'll help you configure a solution that meets your needs.
