#VGC-HDMI-2K-4

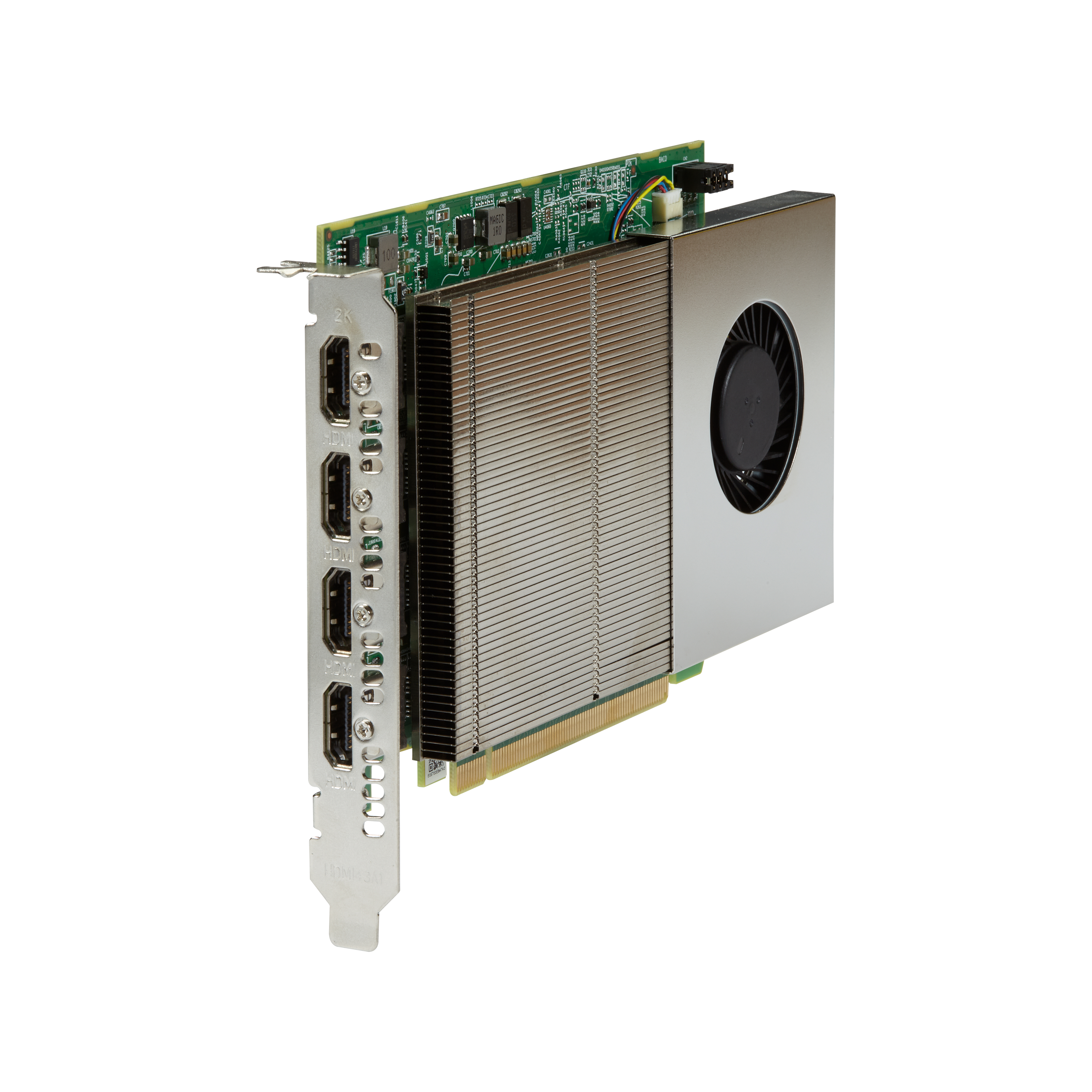

Radian Video Wall Graphics Card - 2K, HDMI 2.0, 4-Channel
Drives 4 Channels of 2560x1600 @60Hz 2K HDMI Video, with Configuration options for 4K60 UHD and 1080P HD Display
Product Features
- For use with Radian Video Wall Controller Solutions
- Supports four channels of 2560x1600 @ 60Hz HDMI output
- Alternative output configurations: (x2) 4K60; or, (x1) 4K60 & (x3) 1080p60
- HDCP 2.2 supported when used with Radian capture cards
- Add up to eight cards for a maximum of 32 outputs
- 2-GB Graphic Card Memory
- Works with Windows® 10 and Windows Server 2019
When building a video wall system, high-performance video content is a must to ensure a vibrant and effective display. This Radian Video Wall Controller Graphics Card is a highly flexible solution designed to allow for a range of outputs from HD to 2K to 4K, offering the highest quality of video graphics performance. Deliver four channels of 2560 x 1600 @ 60Hz video output with HDCP 2.2 support; or, two channels of 4K60 video output with HDCP 2.2 support; or, one channel of 4K60 plus three channels of 1080p60 video outputs with HDCP 2.2 support.
Up to eight of these cards can be added to a Radian Video Wall Controller system for a total max output of thirty-two displays, depending on the configuration of the card outputs. When combined with a VSC-VPLEX4000 controller, additional expansion is achievable by breaking out 4K video outputs into four HD video outputs, for up to eight HD video outputs per card (Contact Black Box Tech Support for configuration help).
Fully integrated for graphic configuration via the built-in drivers, it's easy to set up varying combinations of displays and their output resolutions, rotation, and other settings in just a few minutes. And, with the addition of Radian Management software to your Video Wall Controller system, you'll have everything you need to design, manage, and control your video wall content and displays for an effective presentation that drives results.
