#VCC-SD-HD-3

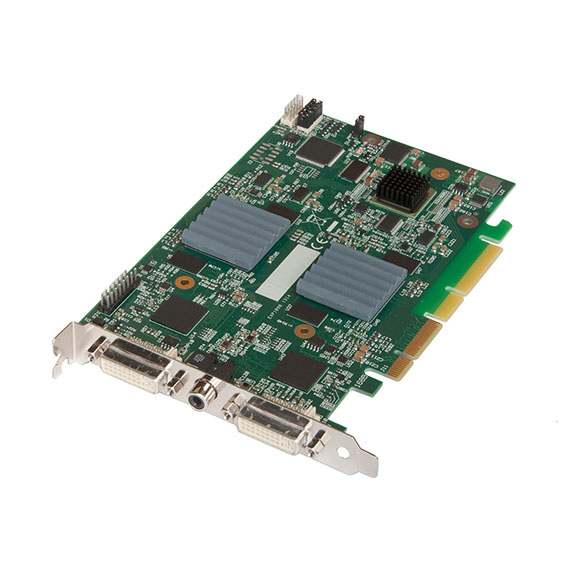

Radian Video Wall Processor Capture Card - 2-Channel HD, 1-Channel SD, Full Height
Captures two channels of High Definition DVI video and one channel of Standard Definition Composite video
Product Features
- For use with Radian Video Wall Controller Solutions
- Two channels of HD DVI Video and one channel of SD Composite video
- Both DVI-I support HDMI/DVI/RGB/YPbPr video capture up to 1080p60
- Audio stream can be selected from either HDMI or Analog Audio ports
- PCIe x4 with 1.6 Gbps of capture bandwidth
- 256MB Frame Buffer Memory
When building a video wall system, high performance video content is a must to ensure vibrant and effective display. This Radian Video Wall Controller Capture Card provides two High Definition DVI capture channels and one Standard Definition composite channel, offering the highest quality of video capture performance.
All three video channels are captured simultaneously and triple buffered into onboard storage for tear-free video, alongside an audio stream that can be selected from one of the HDMI or analog audio ports. The data can then be processed and copied using DMA transfers to the host system for display, storage, or streaming.
In addition, it contains built-in Windows® WDM support, and can be used for streaming applications with Windows Media Encoder to compress and stream captured video, and then replay the video using Windows® Media Player. This capture card can be used with any application compatible with Windows® DirectShow technology.
DirectShow drivers for WDM Streaming support the following applications to encode, record, and stream video: Microsoft Media Encoder®, VLC, VirtualDub, and any other DirectShow encoding software.
