#KVS4-DHVX
Secure NIAP 4.0 Certified KVM Switch - 4-Port, Quad-Monitor, DVI, HDMI, DisplayPort, CAC
Control 8 DP, 4 HDMI, and 4 DVI-I computers from a single workplace using 1 set of keyboard and mouse and 2 DP, 1 HDMI, 1 DVI-I, and CAC
Product Features
- Certified for NIAP Protection Profile for Peripheral Sharing Device Version 4.0
- HDMI/DisplayPort FlexPort Technology allows Single-Monitor or Dual-Monitor HDMI/DisplayPort video interfaces, USB HID, and stereo audio
- Made in the USA, TAA Compliant
- Tested and certified under the USA scheme
- External power supply with locking connector
- Supports CAC Devices
- Supports HDMI or DisplayPort video up to 3840 x 2160 at 60 Hz (Dual-Link), USB HID, and stereo audio
Guard sensitive data in defense applications, secure control rooms, server operations, corporate, educational, medical, banking, insurance, transit, or industrial applications, and more. This switch uses mechanical, electrical, and optical signal isolation to prevent hacking and data leakage. Control KVM (Keyboard, Video, and Mouse) operation on up to 8 DisplayPort, 4 HDMI, and 4 DVI-I computers plus analog audio using just 1 set of keyboard and mouse, 2 DisplayPort, 1 HDMI, 1 DVI-I displays, and analog audio.
NOTE:The switches support HDMI 1.4 and DisplayPort 1.2.
Complies with NIAP Protection Profile for Peripheral Sharing Device Version 4.0
The switches are tested and certified under the USA scheme for NIAP Protection Profile 4.0.

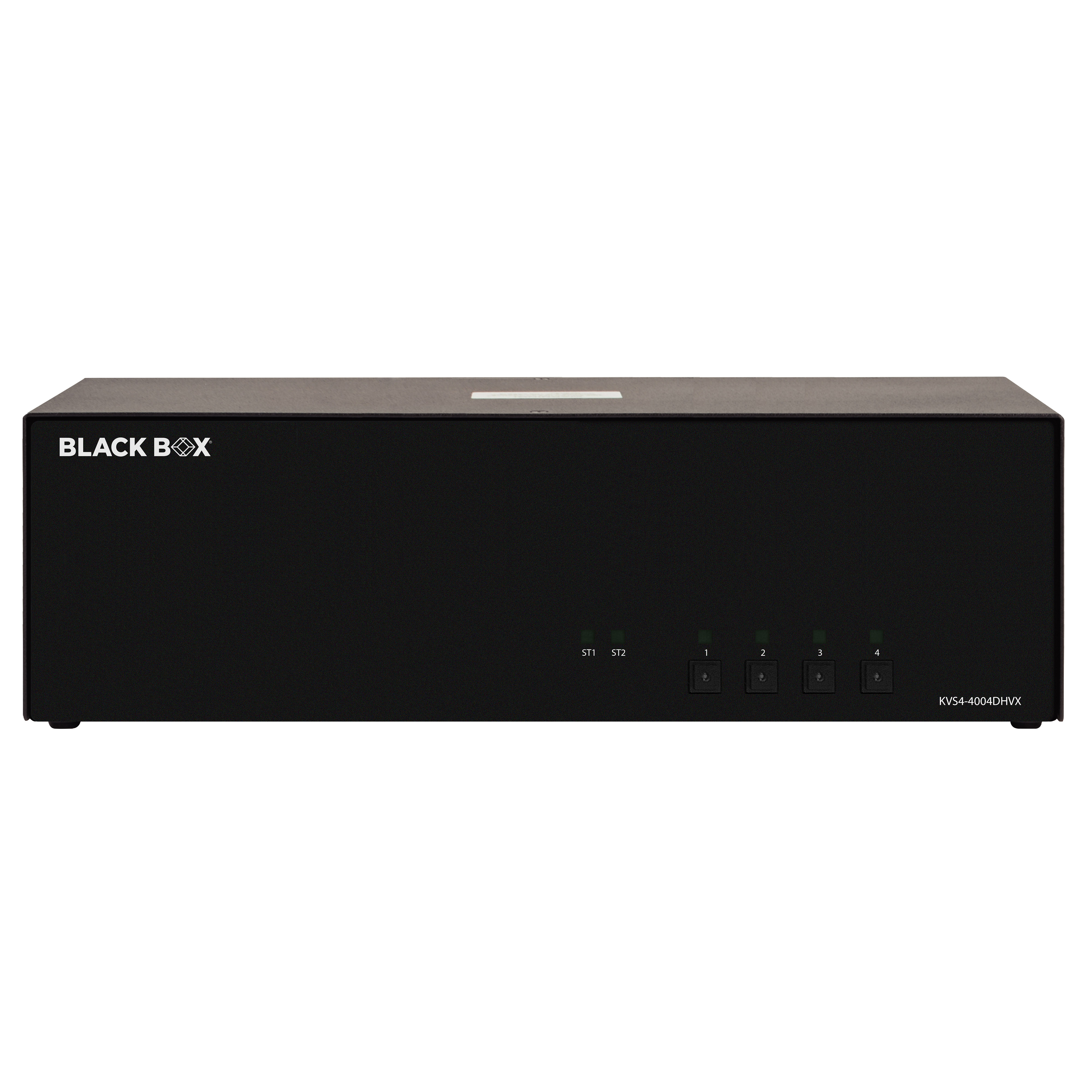

Front-Panel Buttons
Securely switch between sources.
Maximum Security
Inverted signals control data relays to guard connections against outside intrusion. Each port has an isolated data channel and each unit uses non-reprogrammable ROM with no data leakage between ports. Isolated connections also prevent data leaks between secure ports and the outside world when accessing classified and public networks over the internet.
Secure EDID Learn and Video Emulation
The switch emulates a keyboard and mouse for each attached computer via a USB cable. Selected and non-selected computers maintain a connection with the unit's keyboard-mouse emulation controllers, allowing for ultra-fast switching and restricting the discovery of newly connected peripherals during switching. Emulation also prevents the direct connection between peripherals and connected computers.
Tamperproof Seals
Built-in tamperproof seals and a long-life internal anti-tamper battery keep devices secure.
Optional CAC Port
Add a Common Access Card (CAC) reader at point-of-sale in retail or for access in other industries.
- (1) Secure KVM Switch
- (1) 12 VDC Wallmount Supply (ICP36-120-3000) with US, EU, UK, and AU adapter clips
- (1) Set of 4 rubber feet (already be attached)
- (1) Quick Start Guide
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
