#KVT417A-16CATX
ServTray KVM LCD Console Tray and CATx Switch - 17-in., 16-Port, Single-Rail, VGA, PS/2, USB
Access via a local KVM Tray, or from a remote user station up to 1000 feet away.
Product Features
- 1RU Design with 17" Display that can support resolutions up to 1280x1024
- Built-in 16-Port CATx KVM Switch with support for an optional remote user up to 980 feet away (Server Access Modules and User Stations not included in kit)
- Support for VGA and DisplayPort Video, with either USB or PS/2 Keyboard and Mouse
- Control via on-screen display (OSD) menu, hotkeys, or mouse.
- Expand the system by using the ServSwitch CX Uno (KV0161A, KV0081A).
- Users can enable password security access with user profiles, respond to RS232 switching commands, and much more.
- Also available with 8 ports and with IP.
Control up to 16 multiplatform computers from your KVM tray console, with expansion options to increase the number of servers available. Use convenient network-style CATx patch cables - thin flexible cables that are popular in racked applications, such as our Gigabase® CAT5e cables (EVNSL81). Add USB, PS/2, and Sun style server access modules (SAMs) for each server connection.
This CATx module provides a KVM extension port that enables a second KVM console to access the switch from 984.5 feet (300 m) away using standard CATx cabling and a ServSwitch™ CX Remote Unit (see Related Items).

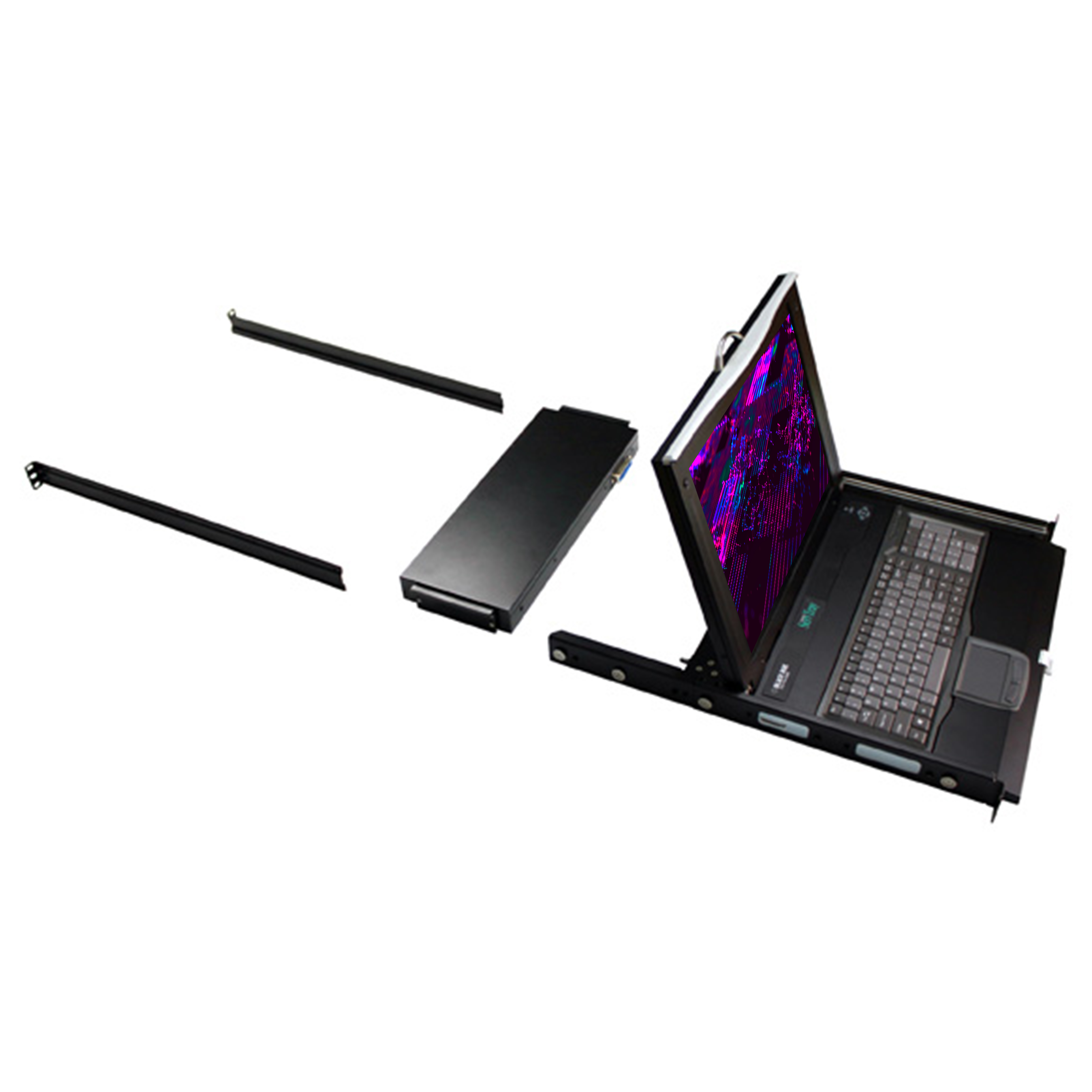

- KVM Tray with Keyboard, Touchpad, and LCD Monitor

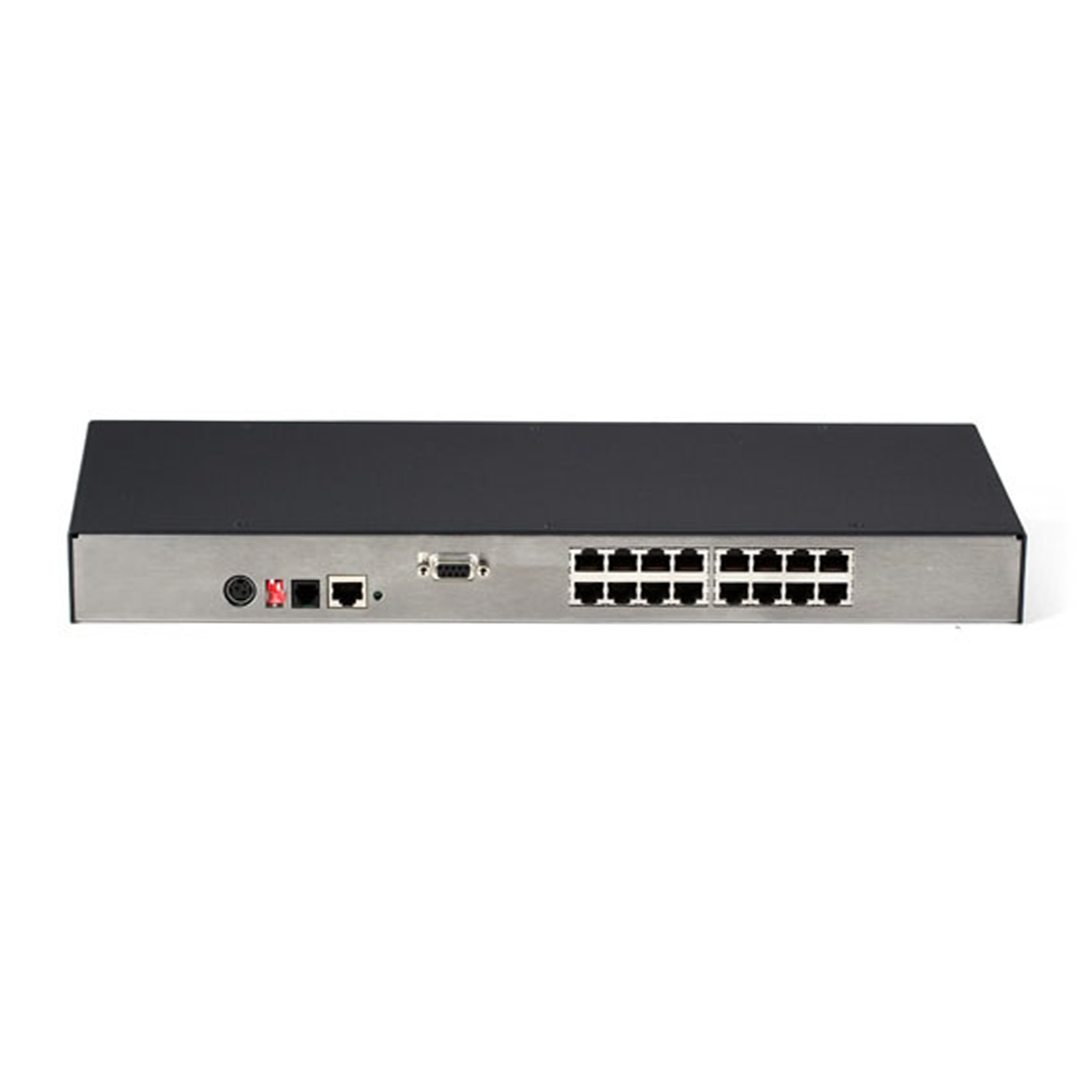

- KVM Module
- Power Supply
- Universal Rear Rail Kit
- User Manual
NOTE(s):
Product works with:
