#KV3x04A
Wizard KVM Switch - VGA, USB True Emulation, Audio, 4-Port
High-end VGA KVM switching for multiple computers and USB devices.
Product Features
- A flexible, professional-grade KVM switch for high-performance, multihead KVM switching.
- Enables a single user to control four computers fitted with video and to share USB peripherals among them.
- Supports access to multiple heads on each channel. Switch VGA video, keyboard, and mouse streams to multiple CPUs.
- Supports high resolutions up to 1920 x 1200.
Intelligent options port
This highly flexible KVM switch centralizes and simplifies high-end, multi-head video switching access at a single user console with two VGA screens.
Plus, with advanced support for multiple high-speed USB devices, the ServSwitch Wizard VGA, USB serves today's busy multitaskers quite well.
It's ideal for IT administrators and medical imaging, graphic design, and broadcast studio professionals who not only require quick, reliable access to multiple computer CPUs and multiple video channels, but also need simultaneous access to a mix of USB peripherals.

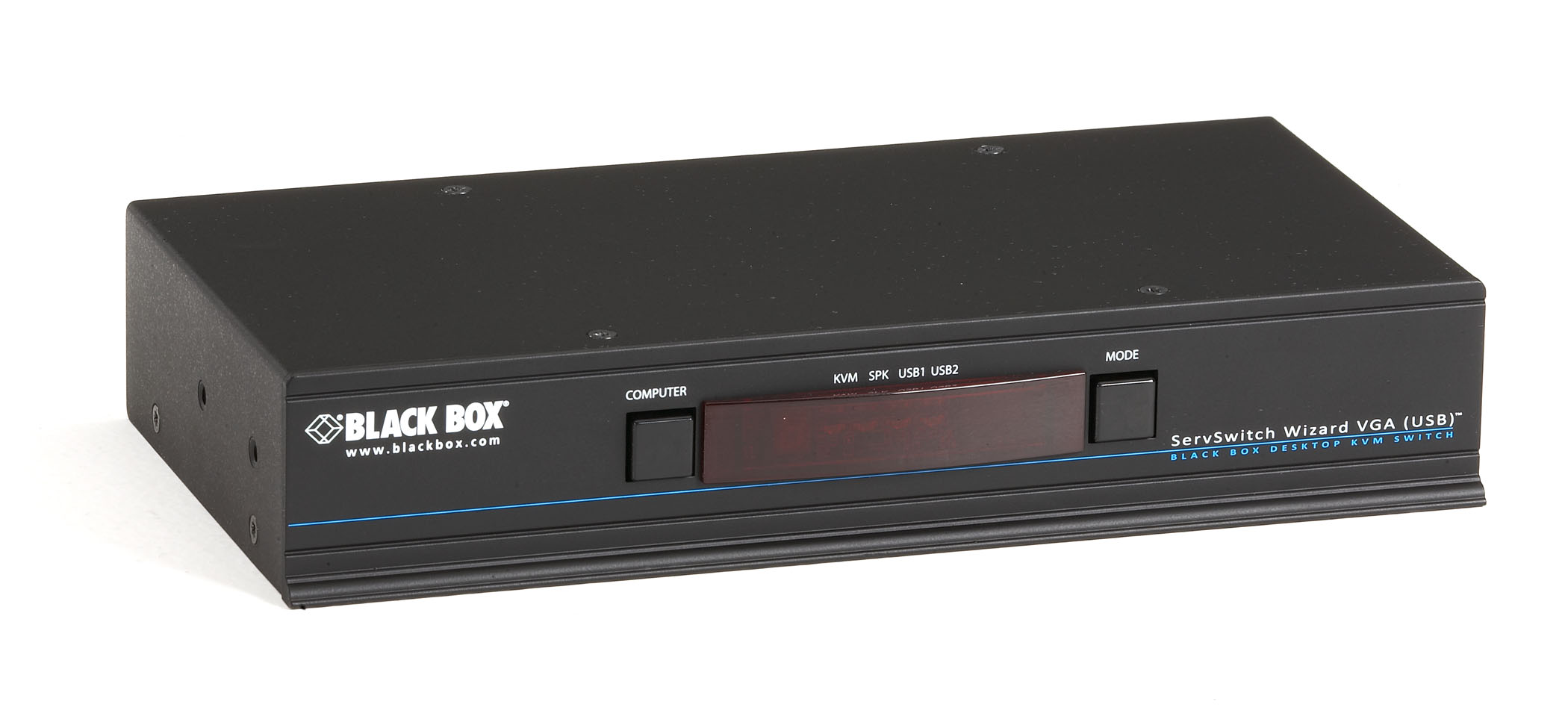

Select a channel on the ServSwitch Wizard VGA using hotkeys, a three-button mouse, or the switch's front-panel controls. When auto-scan is enabled, the switch cycles between connected computers in sequence automatically. A seven-segment numeric display indicates the selected channel.
Multihead video channel access - simplified.
The ServSwitch Wizard VGA enables a single KVM workstation user to control four separate computer systems or servers and flexibly share peripherals among them.
In addition to multi-head VGA video KVM user console inputs for multiscreen workstations, the switch features dual VGA video connectors on each of its four computer channels. This way, you have easy access to two video heads on each channel. For DVI support, see the ServSwitch Wizard DVI Dual-Link with True USB Emulation models (KV2X04A series).
Each video head channel on this high-quality switch supports VGA video. Plus, it supports high resolutions, whether you need 1920 x 1200 video for post-production type work or 1920 x 1200 image clarity for very detailed medical or R and D lab imaging.
In addition to multiple video connectors, each computer channel on the ServSwitch Wizard VGA has USB Type B and a 3.5-mm audio jack inputs.
Multicomputer and multiperipheral access.
This high-performance, multimedia switching platform offers more than just straight switching between four multi-head computer systems.
You can also use a KVM console to work on one computer while your favorite USB devices remain connected to other computers, all easily accessible to you. And because the ServSwitch Wizard VGA supports audio connectivity, you can connect speakers to yet another computer (audio can be switched independently from USB and video).

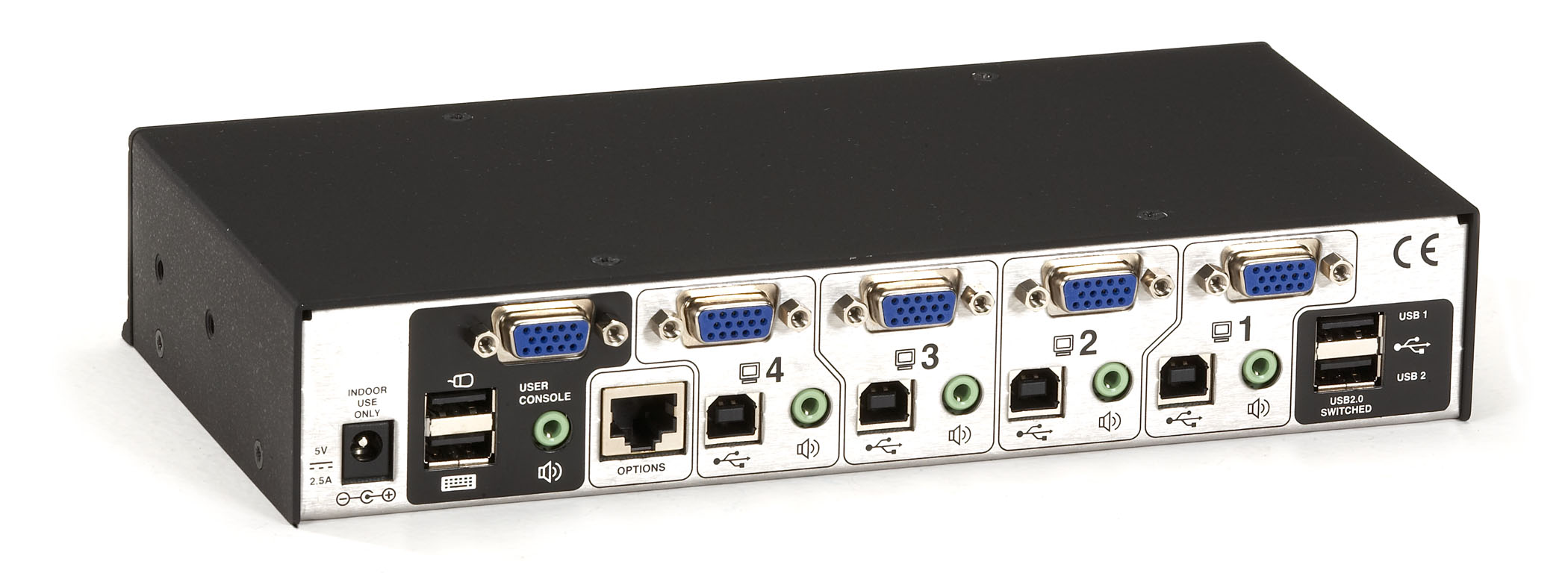

The unit's rear panel has two USB Type-A ports as part of its KVM user console connections plus separate switched USB Type-A ports for additional USB 2.0 connectivity. You can reassign any of the connected USB peripherals to any of the connected computers quickly. Attached devices can either be switched in unison, or you can mix peripherals between any of the systems.
The switch supports a wide range of USB devices, especially high-speed USB 2.0 peripherals on its switched USB ports. Printers, scanners, and non-standard HID devices can all be attached. For instance, you can be creating e-mails on one system, listening to the audio on a second one, printing from a third computer, and scanning documents on a flash drive - all at the same time.
- (1) ServSwitch Wizard VGA, USB KVM Switch Unit
- (1) AC Power Adapter
- (4) Self-Adhesive Rubber Feet
- Safety Guide
* Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-877-877-2269.
